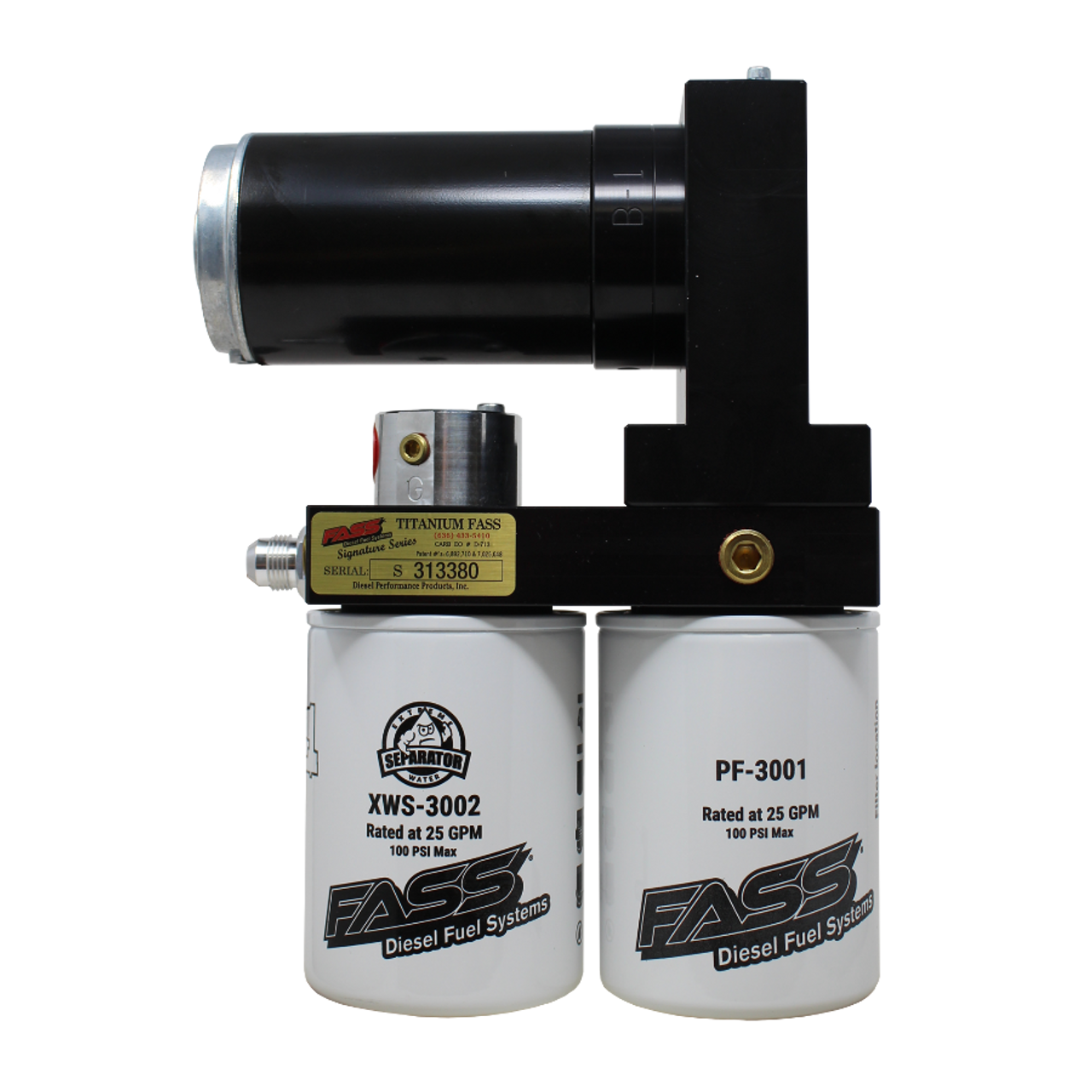

FASS IND290G INDUSTRIAL SERIES DIESEL FUEL SYSTEM CLASS 8 SEMI UNIVERSAL 290GPH
The FASS IND290G is a Class 8, universal 290 GPH Industrial Series fuel system engineered for extreme reliability and long service life. It delivers approximately 16–18 PSI of stable fuel pressure, removes entrained air/vapor and water, and filters to 2 microns absolute to protect injectors and reduce downtime on long-haul rigs.
Fitment & System Notes
- Application: Class 1–8 / Semi / Universal (all 1/2" fuel ports).
- Flow / Pressure: 290 GPH @ ~16–18 PSI (preset).
- Return routing: Built-in air separation port ties into the OEM engine return—no separate return line to tank required.
- Filters: Uses the current hydroglass pair. On updated setups, run XWS3002XL Extreme Water Separator on the pressure side and PF3001XL Particulate Filter on the suction side.
- Ports: 1/2" fuel ports; optional electric heater ports and a fuel pressure gauge port.
Installation & Manuals
Download official FASS manuals here: FASS Installation Manuals. (Industrial Series manual covers IND-250G and IND-290G with ~16–18 PSI guidance.)
Cross-Reference & Related FASS Items (CPP Diesel)
- Other Industrial Series flow options: IND100G (100GPH), IND165G (165GPH), IND250G (250GPH), IND290F260G (260GPH).
- Filters & service packs: XWS3002XL, PF3001XL, FLP3000XL Fleet Pack (XL), FP3000 Filter Pack.
- Industrial install helpers: PAK2001 PACCAR Fuel Line Adapter Kit, PAK1001 PACCAR Fuel Line Adapter Kit, SFB1001 Semi Truck Frame Bracket (No-Drill).
FAQ
What fuel pressure does the IND290G run?Approximately 16–18 PSI from the factory, providing consistent supply for heavy-duty applications.
Do I need to run a separate return line to the tank?
No. The Industrial Series includes an air-separation port that ties into the OEM engine return line.
Which filters should I pair with this system?
Use the current hydroglass pair: XWS3002XL (pressure side) and PF3001XL (suction side). For standard length, use XWS3002 and PF3001.
Can I add cold-weather or monitoring options?
Yes—ports are provided for optional electric heaters and a fuel pressure gauge.
Specifications for Fass IND290G
| Brand | FASS Fuel Systems |
| Part Number | IND290G |
| Flow / Pressure | 290 GPH @ ~16–18 PSI (preset) |
| Ports | All 1/2" fuel ports |
| Filter Pair | XWS3002XL (pressure) + PF3001XL (suction) |
| UPC | 850044106158 |
| GTIN | 0850044106158 |
| Shipping Weight | 31 lb |
| Package Dimensions | 18.0" L × 14.0" W × 11.5" H |
| Prop 65 | Yes — Cancer and Reproductive Harm |
