Product Description
FASS IND250F240G INDUSTRIAL SERIES DIESEL FUEL SYSTEM CLASS 8 SEMI UNIVERSAL 240GPH
The FASS IND250F240G Industrial Series system delivers 240 GPH at approximately 16 PSI for Class 8 tractors and vocational trucks. It combines proven air/vapor separation with a 2-micron absolute Extreme Water Separator and Continuous Fuel Polishing (CFP) to keep fuel ultra-clean, extend injector life, and maintain consistent rail pressure—all while operating whisper-quiet.
Fitment & System Notes
- Application: Universal Class 8 / industrial (on-highway semi, vocational trucks).
- Flow/Pressure: 240 GPH, preset ~16 PSI.
- Filtration: 2-micron absolute with Extreme Water Separator + CFP.
- Install-friendly: FASS air separation port ties into OEM engine fuel return—no separate return-line kit needed.
- Ports/Lines: 1/2" lines and ports for high-volume delivery.
- Warranty: 1,000,000-mile / 5-year (with registration).
Installation & Manuals
Get official Industrial Series instructions on FASS’s site: FASS Installation Manuals. Direct PDF for Industrial Series (covers IND-140G / IND-240G / IND-260G): Industrial Series Installation Manual (PDF).
Cross-Reference & Related FASS Items (CPP Diesel)

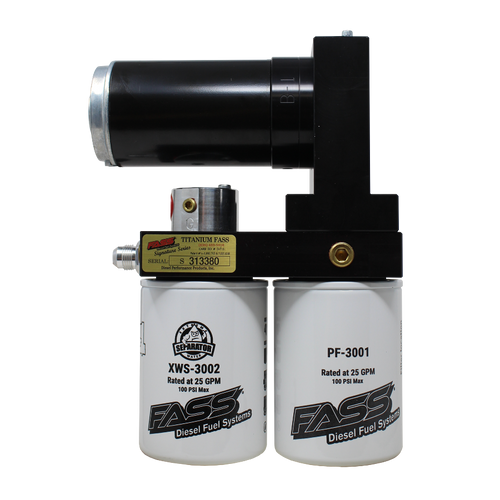

- Other Industrial Series flow options: IND100G (100GPH), IND165G (165GPH), IND290F260G (260GPH), IND290G (290GPH).
- Adjacent model (higher flow): IND250G (250GPH).
FAQ
What fuel pressure does the IND250F240G provide?It is preset to approximately 16 PSI and flows 240 GPH, ideal for heavy-duty Class 8 applications.
Do I need to add a separate return line kit?
No. The system’s air separation port ties into the OEM engine fuel return to simplify installation.
What filtration level does it use?
A 2-micron absolute Extreme Water Separator with Continuous Fuel Polishing to keep fuel ultra-clean.
Is it loud?
FASS Silencing Technology and PRC machining keep operation extremely quiet for an industrial pump.
Specifications for Fass IND250F240G
| Brand | FASS Fuel Systems |
| Part Number | IND250F240G |
| Flow / Pressure | 240 GPH @ ~16 PSI (preset) |
| Filtration | 2-micron absolute Extreme Water Separator + Continuous Fuel Polishing |
| Lines / Ports | 1/2" supply & return |
| UPC | 850044106127 |
| GTIN | 0850044106127 |
| Package Dimensions | 14.00" W × 11.50" H × 18.00" D |
| Shipping | Free Shipping (Continental U.S.) |
| Warranty | 1,000,000-mile / 5-year (with registration) |
| Prop 65 | Yes — Cancer and Reproductive Harm |
