Product Description

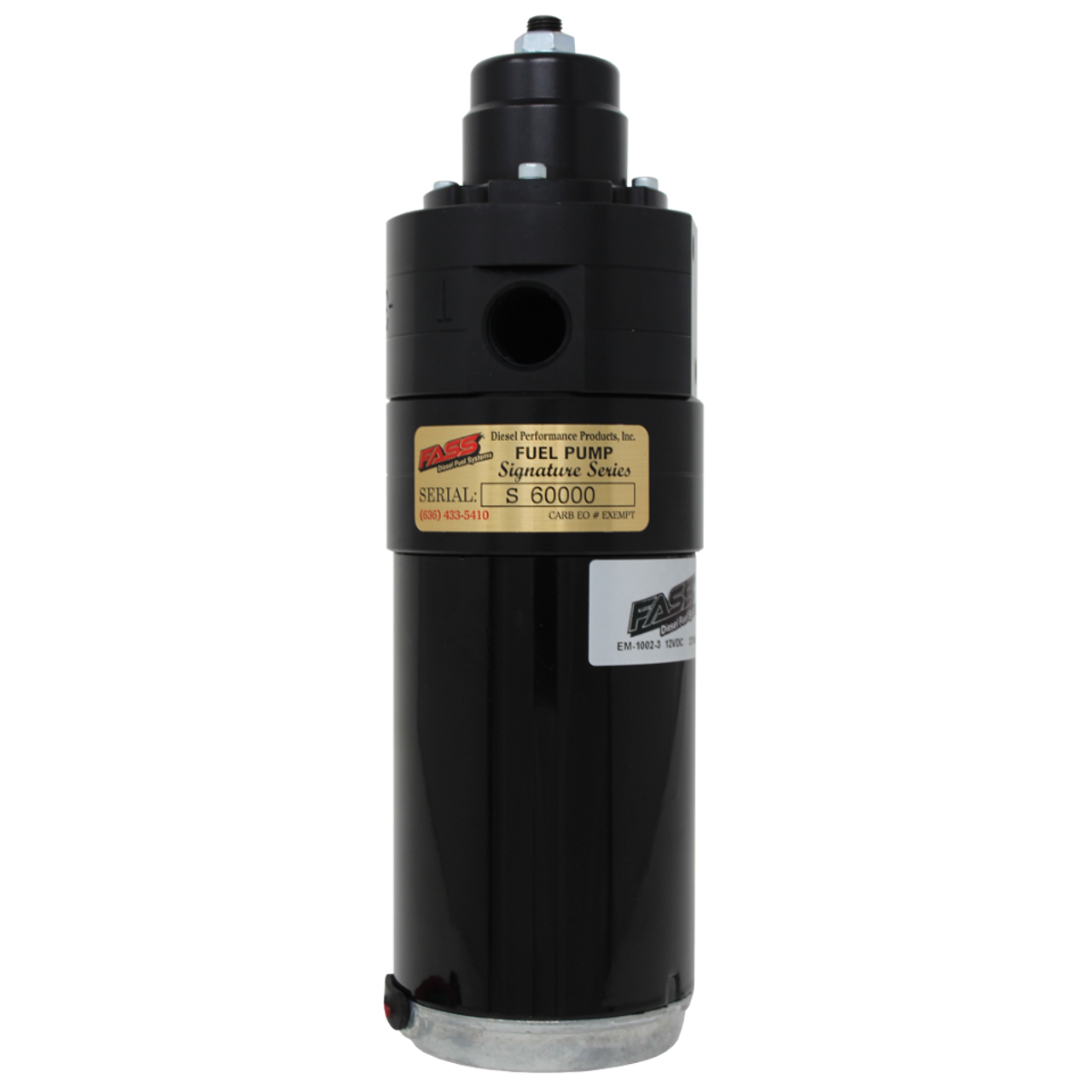

FASS FASF17180F140G ADJUSTABLE DIESEL FUEL LIFT PUMP 180F 140GPH AT 55PSI FOR 2011–2016 FORD POWERSTROKE 6.7L
The FASS FASF17180F140G is a Signature Series Adjustable diesel fuel lift pump delivering 140 GPH with a factory-replacement style install for 2011–2016 Ford F-250/F-350/F-450 6.7L Power Stroke. It features Whisper Technology for quiet operation, adjustable fuel pressure (1–75 PSI), a built-in boost compensation port, and a fuel pressure gauge port so you can fine-tune pressure for your build. Designed to supply clean, stable fuel pressure to your HPFP and injectors under load.
Fitment & System Notes
- Vehicle: 2011–2016 Ford Powerstroke 6.7L (F-250 / F-350 / F-450).
- Flow/Pressure: 140 GPH, typically set around 55 PSI for this application; fully adjustable 1–75 PSI.
- Factory filter note: This is a pump-only system and uses your factory fuel filter. For full FASS filtration with air/vapor separation, consider the Titanium Signature Series systems listed below.
- Monitoring: We recommend installing a fuel pressure gauge when adjusting pressure.
Installation & Manuals
Access official FASS manuals here: FASS Installation Manuals and the dedicated Signature Series Adjustable Fuel Pump Manuals.
Cross-Reference & Related FASS Items (CPP Diesel)
- Full replacement systems for 6.7L: TSF17180F140G (140GPH @ ~55 PSI)
- Next-gen 2017–2021 6.7L system: TSF18180F140G (140GPH)
- Filters & service parts (for Titanium Signature Series users): XWS3002 Extreme Water Separator, PF3001 Particulate Filter, XWS3002XL, PF3001XL
FAQ
Is this a complete FASS filtration system?No. FASF17180F140G is an adjustable lift pump that retains your factory fuel filter. For complete FASS filtration and air/vapor separation, choose a Titanium Signature Series system like TSF17180F140G.
What pressure should I run?
Most 6.7L builds run ~55 PSI, but the system is adjustable 1–75 PSI. Always verify with a fuel pressure gauge and follow tuning requirements.
Is there a boost compensation port?
Yes—intake manifold pressure can raise fuel pressure under full throttle to maintain rail supply.
Does this replace the factory in-tank lift pump?
It functions as an external adjustable lift pump; installation details are in the FASS adjustable-series manuals linked above.
Specifications for Fass FASF17180F140G
| Brand | FASS Fuel Systems |
| Part Number | FASF17180F140G |
| Series | Signature Series Adjustable |
| Flow / Pressure | 140 GPH, adjustable 1–75 PSI (commonly ~55 PSI on 6.7L) |
| Vehicle Fitment | 2011–2016 Ford Powerstroke 6.7L (F-250 / F-350 / F-450) |
| Boost Compensation Port | Yes |
| Gauge Port | Yes |
| UPC | 850044137237 |
| GTIN | 0850044137237 |
| Shipping Weight | ~20 lb |
| Package Dimensions | 14.0" W × 11.5" H × 18.0" L |
| Prop 65 | Yes — Cancer and Reproductive Harm |
