Product Description

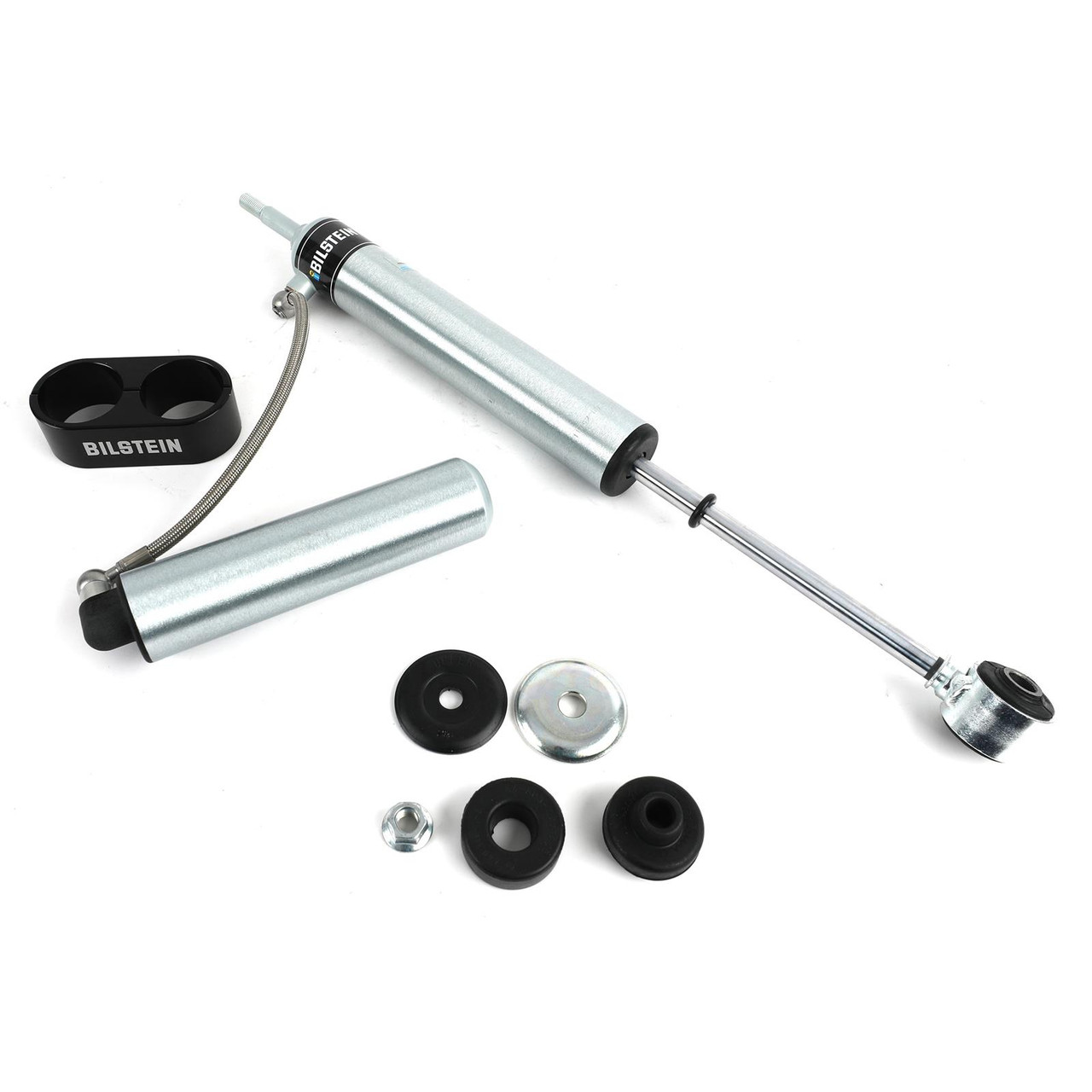

The BILSTEIN 25-311792 5160 Series Shock Absorber is a premium front suspension upgrade engineered for 2005-2016 Ford F250 and F350 Super Duty 4WD trucks equipped with a 0–2.5 inch lift. Built for diesel performance, towing, and off-road durability, this shock delivers exceptional control, stability, and ride quality in demanding conditions.
Featuring Bilstein’s advanced 46mm monotube gas pressure design combined with a remote reservoir, this shock increases oil capacity and cooling efficiency. The result is consistent, fade-free damping even under heavy towing, off-road abuse, or extended highway driving.
The velocity-sensitive digressive piston responds instantly to road conditions, providing firm control when needed and a smooth, comfortable ride during normal driving. This direct-fit design allows for easy installation on lifted trucks without major modifications.
Key Benefits:
- Remote reservoir improves cooling and damping consistency
- Designed for lifted Ford Super Duty trucks (0–2.5” lift)
- Fade-resistant performance under load and off-road use
- Improved steering response and front-end control
- Direct bolt-on installation with application-specific tuning
FITMENT:
- 2005-2016 Ford F250 Super Duty 4WD (Front)
- 2005-2016 Ford F350 Super Duty 4WD (Front)
- Fits Powerstroke diesel and gas models
- Designed for 0–2.5" lifted suspension systems
- Front position only
- Sold individually; replacing both front shocks is recommended
FAQ
What makes the 5160 Series different from the 5100?
The 5160 Series includes a remote reservoir, which increases oil capacity and cooling for better performance under heavy loads and off-road conditions.
Will this fit stock height trucks?
It can physically fit, but it is optimized for trucks with 0–2.5 inches of lift for proper travel and performance.
Is installation bolt-on?
Yes, this shock is a direct-fit replacement designed for easy installation without major modifications.
Is this sold individually?
Yes, shocks are sold individually. For best results, replace both front shocks together.
Does the reservoir require special mounting?
Yes, the included hardware allows you to securely mount the reservoir for optimal performance and clearance.
Specifications for BILSTEIN 25-311792
| Category | Details |
|---|---|
| Brand | Bilstein |
| Part Number | 25-311792 |
| Product Line | B8 5160 Series |
| Product Type | Remote Reservoir Shock Absorber |
| UPC | 00651860899312 |
| GTIN | 00651860899312 |
| Position | Front |
| Drive Type | 4WD |
| Vehicle Fitment | 2005-2016 Ford F250/F350 Super Duty |
| Lift Compatibility | 0–2.5 Inch Lift |
| Shock Design | 46mm Monotube Gas Pressure |
| Reservoir | Yes – Remote Reservoir |
| Finish | Zinc Plated with Protective Coating |
| Adjustability | Non-Adjustable |
| Extended Length | 26.15 in |
| Collapsed Length | 16.14 in |
| Travel Length | 10.01 in |
| Upper Mount Type | Stem |
| Lower Mount Type | Eyelet |
| Boot Included | No |
| Shipping Weight | Approx. 7.5 lbs |
| Warranty | Bilstein Limited Lifetime Warranty |
| California Prop 65 | WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov |
