Product Description

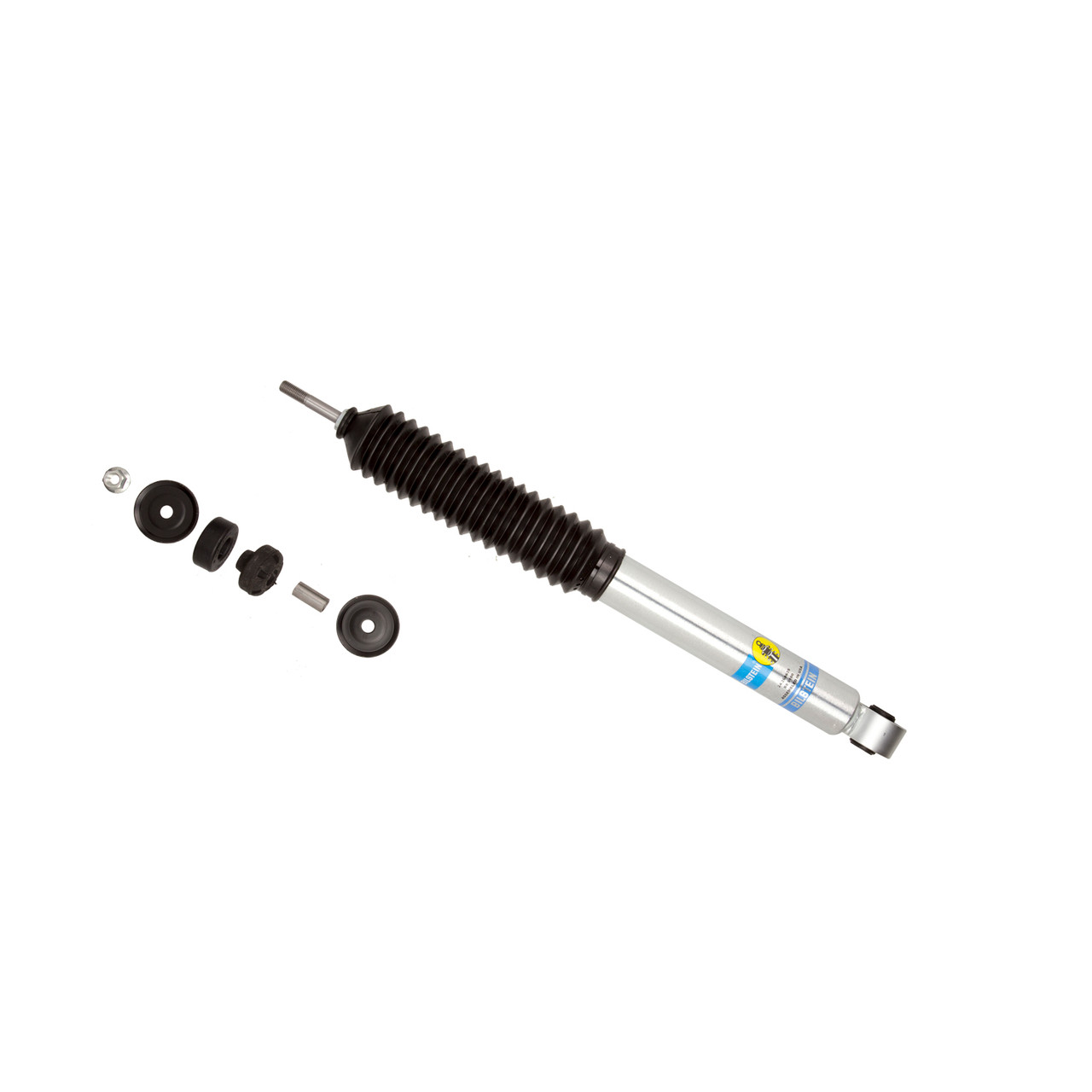

The BILSTEIN 24-268639 5100 Series Shock Absorber is engineered specifically for lifted 2014-2020 Ram 2500 4WD trucks running a 2”–2.5” suspension lift. Designed to handle the increased demands of lifted applications, this premium front shock delivers superior control, stability, and ride comfort both on and off-road.
Built with Bilstein’s proven 46mm monotube gas pressure design, the 5100 Series provides consistent, fade-free performance even under heavy towing, hauling, and aggressive driving conditions. The monotube construction dissipates heat efficiently, ensuring long-lasting performance and reliability.
Equipped with a velocity-sensitive digressive piston, this shock instantly adapts to changing terrain, providing a smooth highway ride while maintaining firm control during off-road or heavy-duty use. Each shock is specifically tuned for your Ram 2500 to maximize suspension performance.
Key Benefits:
- Designed for 2”–2.5” lifted Ram 2500 4WD trucks
- Improves ride quality, handling, and stability
- Monotube gas pressure design prevents fade under load
- Digressive valving reacts instantly to road conditions
- Ideal for towing, hauling, and off-road use
- Direct bolt-on installation with no modifications required
FITMENT:
- 2014-2020 Ram 2500 4WD (Front)
- Fits trucks with 2”–2.5” front lift
- Works with leveling kits and lifted suspension systems
- Front position only
- Sold individually (two required per vehicle)
FAQ
Will this work on a stock height truck?
No, this shock is specifically valved and sized for trucks with a 2”–2.5” lift.
Is this compatible with leveling kits?
Yes, this shock is ideal for trucks with leveling kits that fall within the 2”–2.5” lift range.
What makes the 5100 Series different from the 4600 Series?
The 5100 Series is designed for lifted vehicles and provides longer travel and optimized valving, while the 4600 Series is intended for stock height applications.
Is installation bolt-on?
Yes, this shock installs directly using factory mounting locations with included hardware.
Specifications for BILSTEIN 24-268639
| Category | Details |
|---|---|
| Brand | Bilstein |
| Part Number | 24-268639 |
| Product Line | B8 5100 Series |
| Product Type | Suspension Shock Absorber |
| UPC | 651860795669 |
| GTIN | 00651860795669 |
| Position | Front |
| Drive Type | 4WD |
| Vehicle Fitment | 2014-2020 Ram 2500 |
| Lift Range | 2.0" - 2.5" |
| Shock Design | 46mm Monotube Gas Pressure |
| Internal Design | Monotube |
| Adjustability | Non-Adjustable |
| Extended Length | 22.63 in |
| Collapsed Length | 15.03 in |
| Travel Length | 7.50 in |
| Upper Mount Type | Stem |
| Lower Mount Type | Eye 14.1mm |
| Finish | Zinc Plated (Corrosion Resistant) |
| Boot Included | Yes - Black Bellows |
| Reservoir | No |
| Shipping Weight | Approx. 5.84 lbs |
| Warranty | Bilstein Limited Lifetime Warranty |
