Product Description

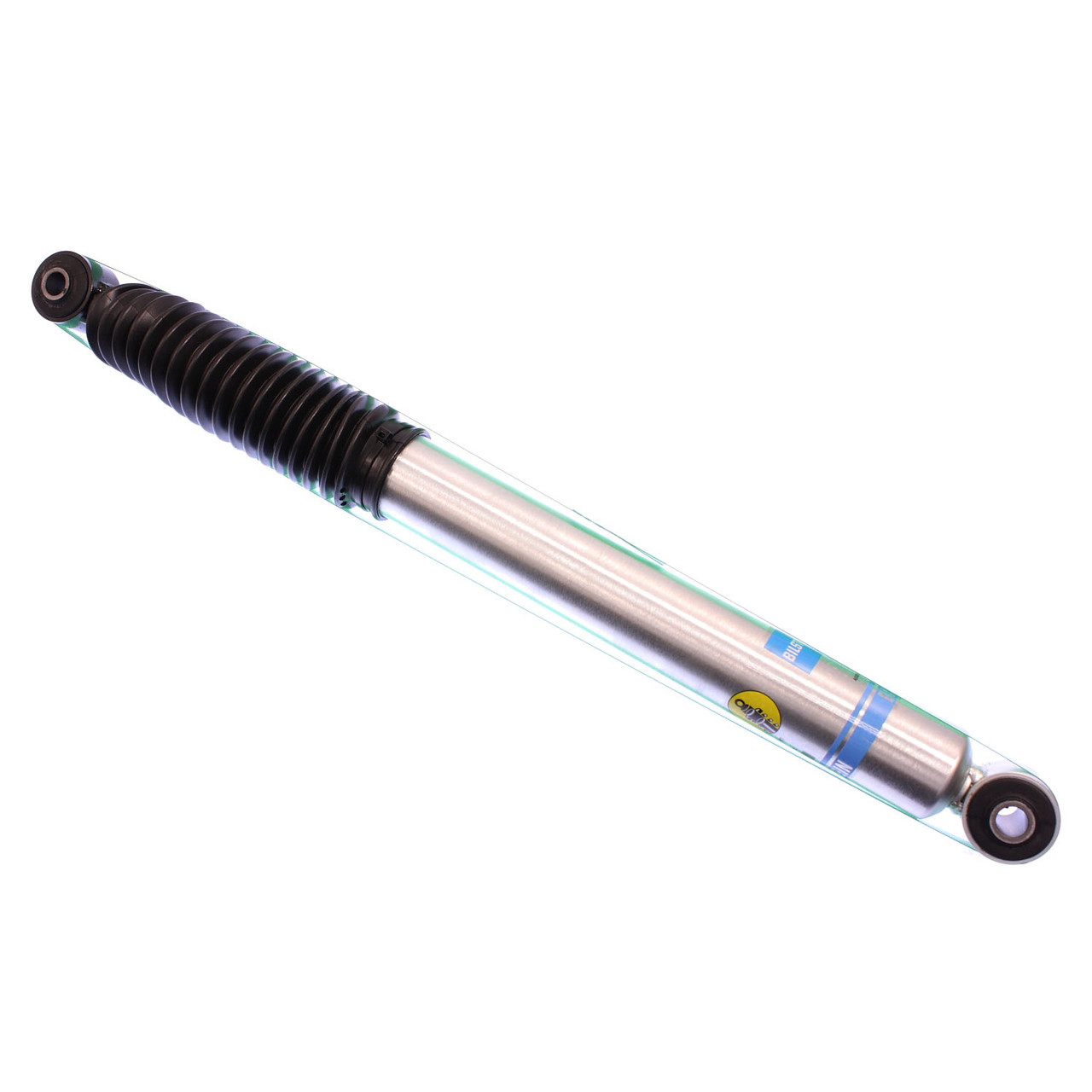

The BILSTEIN 24-191203 5100 Series Shock Absorber is designed specifically for lifted diesel trucks, delivering superior rear suspension performance for 1994-2013 Ram 2500/3500 and 1999-2010 GM 2500/3500HD applications with 0-2 inches of lift.
Built around Bilstein’s proven 46mm monotube gas pressure design, this shock provides consistent, fade-free performance under heavy towing, hauling, and off-road conditions. Unlike traditional twin-tube shocks, the monotube construction dissipates heat more efficiently, ensuring reliable damping and control even under extreme use.
The velocity-sensitive digressive piston automatically adjusts to road conditions, giving your truck improved stability on rough terrain while maintaining smooth ride quality on the highway. This makes the 5100 Series ideal for leveled and lifted trucks that demand both performance and comfort.
Engineered as a direct-fit solution, the Bilstein 24-191203 installs easily with no major modifications required, making it one of the best upgrades for lifted Cummins and Duramax trucks.
Key Benefits:
- Designed for lifted trucks (0–2" rear lift)
- Monotube gas pressure design for fade-free performance
- Improves towing stability and load control
- Enhanced off-road capability and ride comfort
- 46mm piston for increased damping performance
- Direct bolt-on installation
FITMENT:
- 1994-2013 Dodge Ram 2500 (Rear, Lifted 0-2")
- 1994-2012 Dodge Ram 3500 (Rear, Lifted 0-2")
- 1999-2010 Chevy Silverado 2500HD/3500HD (Rear, Lifted 0-2")
- 1999-2010 GMC Sierra 2500HD/3500HD (Rear, Lifted 0-2")
- 4WD applications primarily (verify configuration)
- Sold individually – quantity of 2 required per vehicle
FAQ
Will this work on a stock height truck?
No, the Bilstein 5100 Series is designed for lifted vehicles. Using it on a stock height truck may result in improper fitment or ride quality.
How much lift is this shock designed for?
This shock is optimized for rear lift setups between 0 and 2 inches.
Is this good for towing and heavy loads?
Yes, the monotube design and digressive valving provide excellent control for towing, hauling, and off-road use.
Do I need modifications to install?
No, this is a direct-fit shock absorber for compatible lifted applications.
Specifications for BILSTEIN 24-191203
| Category | Details |
|---|---|
| Brand | Bilstein |
| Part Number | 24-191203 |
| Product Line | B8 5100 Series |
| Product Type | Suspension Shock Absorber |
| UPC | 651860558202 |
| GTIN | 00651860558202 |
| Position | Rear |
| Lift Range | 0–2 Inches Rear Lift |
| Primary Fitment | 1994-2013 Ram 2500 / 3500 |
| Secondary Fitment | 1999-2010 GM Silverado/Sierra 2500HD / 3500HD |
| Shock Design | 46mm Monotube Gas Pressure |
| Internal Design | Monotube |
| Adjustability | Non-Adjustable |
| Extended Length | 27.36 in |
| Collapsed Length | 16.95 in |
| Travel Length | 10.41 in |
| Upper Mount Type | Eye 14.4mm |
| Lower Mount Type | Eye 14.4mm |
| Finish | Zinc Plated (Corrosion Resistant) |
| Boot Included | Yes – Black Bellows |
| Body Diameter | 46mm (1.81 in) |
| Shipping Weight | Approx. 6.2 lbs |
| Warranty | Bilstein Limited Lifetime Warranty |
| California Prop 65 | WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov |
