BDS SUSPENSION BDS1694H 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 19-24 4WD GAS WITOUT FACTORY REAR OVERLOAD LEAF NX2 NITRO SHOCKS

Raise your RAM 3500 gas powered truck to the next heights with this 5.5-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

• (Trimming may be required)
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Rear Lift Option
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Shock Option
NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

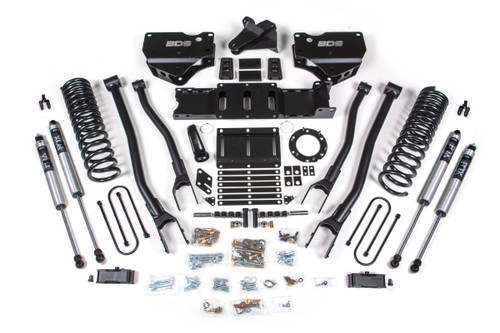

Kit Components:

• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612635
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
• Includes two BDS85714, Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2, UPC Code 711745609549
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Elevate your RAM 3500 truck's performance and appearance with the BDS Suspension BDS1694H 5.5-inch Lift Kit, meticulously designed for 2019 to 2024 4WD gas models without factory rear overload leaf springs. This comprehensive lift kit not only enhances your vehicle's stance but also significantly improves its off-road capabilities, allowing for tire sizes up to 37 inches.

Central to this kit are gas-specific Pro-Ride coil springs that deliver exceptional ride quality and stability across diverse terrains. The innovative 4-link conversion system optimizes suspension geometry, resulting in enhanced strength and handling. Crafted from durable 1/4-inch steel, the new control arms guarantee improved alignment and reduced caster changes during wheel movement. The kit includes essential components such as a forged drop pitman arm and a heavy-duty track bar bracket, ensuring precise steering correction and maintaining optimal axle positioning.

Furthermore, the installation includes an indexing ring and a robust transmission crossmember to adjust the transfer case, making it compatible with the factory front driveshaft. The rear lift features a high-strength steel lift block paired with NX2 Nitro or FOX 2.0 Performance shocks, providing a remarkable overall ride experience.

This lift kit caters to the adventurous driver seeking to conquer off-road trails while still enjoying the comfort on paved roads. With its heavy-duty construction and thoughtful design, the BDS1694H Lift Kit stands out as an essential upgrade for anyone looking to enhance their RAM 3500’s performance and versatility. Stand out on the road and take your 4WD experience to new heights with BDS Suspension.
