Product Description

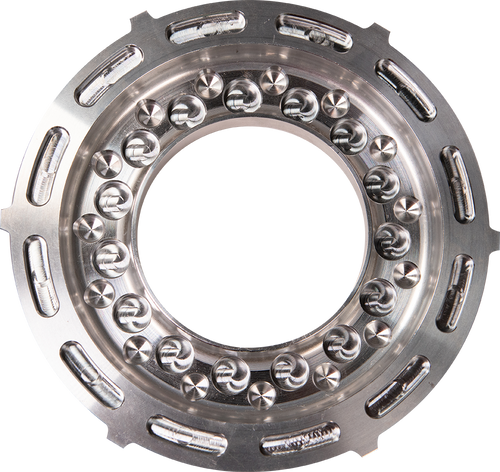

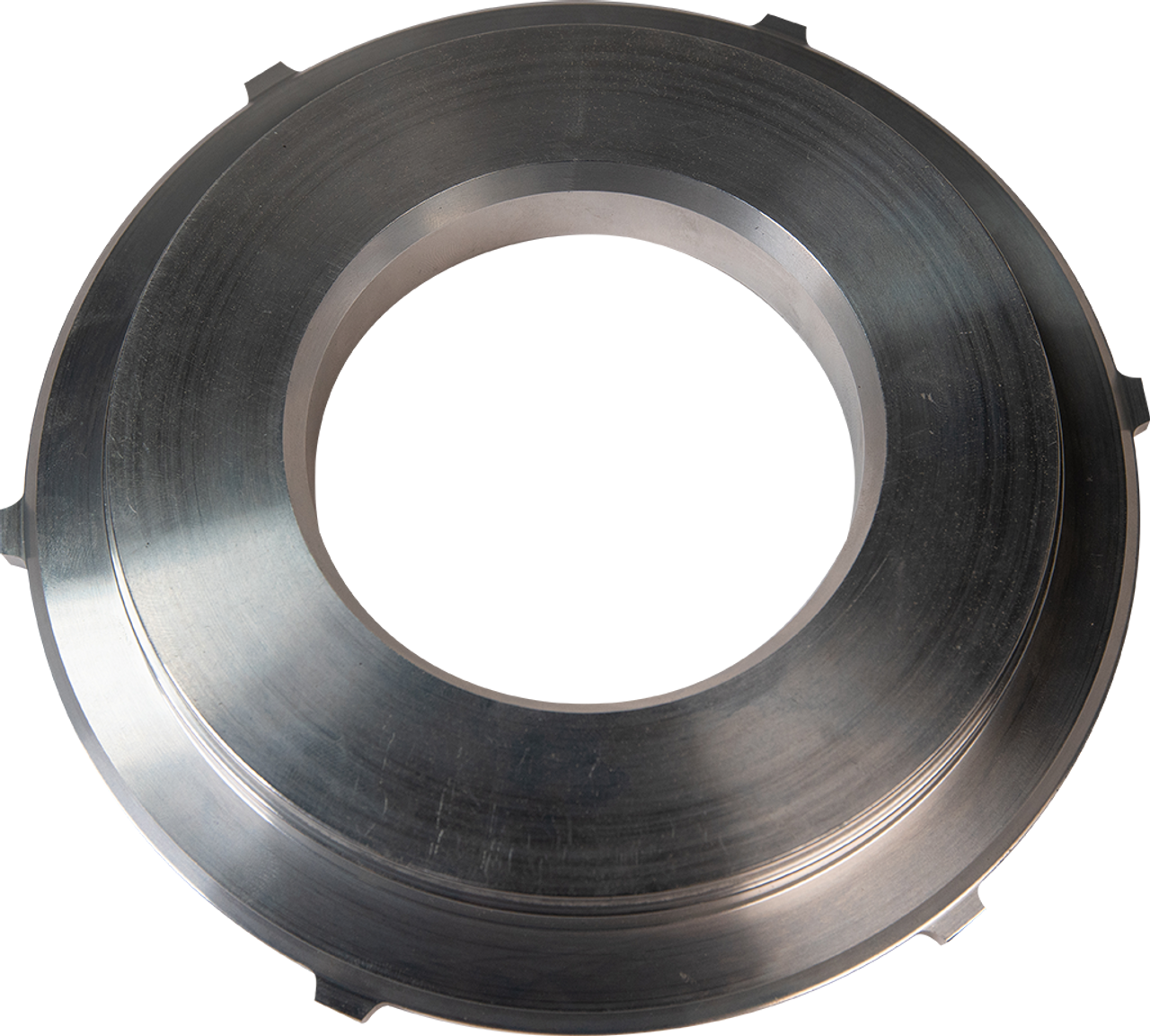

The ATS 314-008-2104 Billet Direct Piston is a high-performance upgrade for 47RE and 48RE transmissions found in 1996-2007 5.9L Cummins-powered Dodge Ram trucks. Designed to replace the factory cast piston, this billet unit delivers superior strength, durability, and resistance to failure under high line pressure and increased horsepower applications.
The factory direct piston is a known weak point in performance and heavy-duty builds, especially under elevated torque loads. ATS addresses this issue with a precision-machined billet aluminum piston that maintains consistent clutch apply pressure while reducing the risk of cracking or failure.
This upgrade is essential for performance transmissions, towing builds, and any application where increased line pressure and clutch holding capacity are required. Whether you're rebuilding your transmission or upgrading for reliability, this billet piston ensures long-term performance and confidence.
FAQ
Q: What does the billet direct piston improve?
A: It replaces the factory cast piston with a stronger billet version, improving durability and maintaining consistent clutch pressure under high load.
Q: Is this required for performance builds?
A: Yes, it is highly recommended for high horsepower, towing, or built transmission applications to prevent failure of the factory piston.
Q: Will this fit both 47RE and 48RE transmissions?
A: Yes, this piston is designed to work with both 47RE and 48RE transmissions.
Q: When should this be installed?
A: It is best installed during a transmission rebuild or upgrade.
Fitment
- 1996-1998 Dodge Ram 2500/3500 5.9L Cummins (47RE)
- 1999-2002 Dodge Ram 2500/3500 5.9L Cummins (47RE)
- 2003-2007 Dodge Ram 2500/3500 5.9L Cummins (48RE)
Key Features
- Billet aluminum construction for maximum strength
- Replaces weak factory cast direct piston
- Improves clutch apply pressure and consistency
- Reduces risk of failure under high line pressure
- Ideal for performance, towing, and heavy-duty builds
- Precision machined for exact fitment
Specifications for ATS 314-008-2104
| Specification | Details |
|---|---|
| Part Number | 314-008-2104 |
| UPC | Not Available |
| GTIN | Not Available |
| Product Type | Billet Direct Piston |
| Transmission Compatibility | 47RE / 48RE |
| Engine Compatibility | 5.9L Cummins |
| Model Years | 1996-2007 |
| Material | Billet Aluminum |
| Installation | Requires transmission disassembly |
| Shipping Info | Standard Ground Shipping |
| Warranty | Limited Manufacturer Warranty |
| California Prop 65 | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
