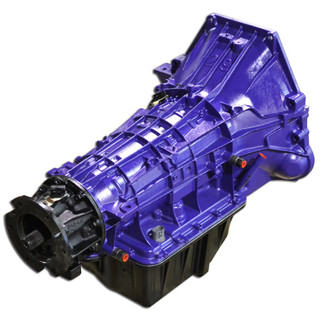

ATS 309-954-3104 E4OD STG 5 PACKAGE FOR 89-91 FORD F250/F350 4X4 WITH DIESEL

The Ford E4OD transmission was designed to fit behind various powerplants including gas and diesel engines. Most failures revolve around the torque of the diesel motor, especially when power is increased over stock. The good news is that the framework of the E4OD allows for substantial increases in reliability and capability. ATS E4ODs
Features:

• ATS Five Star Torque Converter featuring a billet cover, five lock-up clutches, available in either low or high stall configurations
• ATS billet input shaft
• ATS Commander Lock-Up Controller
• ATS billet flex plate
• High performance overdrive, intermediate and forward clutch packs, with one additional clutch added per section
• Modified transmission pump to increase line pressure, which provides increased clamping force on the clutch packs
• Modified valve body that focuses around precise shifts, increase line pressure and increasing the torque capacity of the E4OD
• New bearings, seals and gaskets
• New low roller clutch, heavy duty intermediate sprag, bonded coast and overdrive pistons
• ATS Deep Transmission Pan which adds 5 quarts of fluid over stock, which helps keep the transmission cool

The Stage 4 package includes a billet input shaft for increased reliability when towing heavy loads, under modified power levels or street performance. The billet input shaft is designed to withstand greater torsional loads than the factory shaft, thus increasing reliability.

The shaft is made of billet 300M material and precisely machined for an exact fit. In addition, we add a lock-up controller for the torque converter on the Stage 4 setup. This allows the user to base lock-up on vehicle speed in any forward gear. This provides several benefits, including increased fuel economy, lower transmission operating temperatures and more power to the ground, at a lower speed.

This feature becomes useful in towing situations and performance applications where power at low rpms is desired. For those trucks with an exhaust brake, the controller will synchronize torque converter lock-up with the brake. This will allow the converter to stay locked on deceleration to increase braking force. The Stage 4 features the addition of a billet flex plate.

The billet flex plate is designed for high horsepower/torque trucks and those that tow heavy. The flex plate is the first point of power transfer from the motor to the transmission assembly. By using a billet steel flex plate, we can increase the reliability of power transfer from the crank to the converter. The ATS Stage 4 Package is designed for trucks that are used for light/moderate/heavy towing, greater-than-stock power levels and racing/street performance. The transmission package comes with a 5 year / 500,000 mile warranty.
Application:

• 1989-1991 F-250/F-350/F-450
• Stage 5 4WD
• Powerstroke Ford
• Diesel

The ATS 309-954-3104 E4OD Stage 5 Package for 1989-1991 Ford Diesel 4WD trucks is a comprehensive transmission upgrade designed to enhance the performance and reliability of your vehicle. This package is specifically tailored for Ford E4OD transmissions and is ideal for those seeking to boost power levels over stock configurations.

One standout feature of the ATS E4OD Stage 5 Package is the inclusion of the ATS Five Star Torque Converter with a billet cover and five lock-up clutches, available in low or high stall configurations. This torque converter is designed to handle the increased torque output of diesel engines, ensuring smooth power delivery and improved performance.

Additionally, the package comes with an ATS billet input shaft, Commander Lock-Up Controller, and billet flex plate, all of which contribute to enhanced durability and efficiency. The modified transmission pump and valve body increase line pressure, allowing for better clutch engagement and higher torque capacity.

For towing heavy loads or achieving street performance gains, the Stage 4 package includes a billet input shaft that can withstand higher torsional loads compared to factory components. The Stage 4 setup also features a lock-up controller for the torque converter, optimizing fuel economy and power delivery across various driving conditions.

Ideal for trucks used for towing, high power applications, or racing, the ATS Stage 4 Package is backed by a 5-year / 500,000-mile warranty, providing peace of mind for enthusiasts and drivers alike. Whether you're looking to increase towing capability, improve reliability, or enhance overall driving performance, the ATS 309-954-3104 E4OD Stage 5 Package is a top choice for Ford Diesel owners seeking a premium transmission upgrade.

Please note that this item ships via truck freight and does not qualify for free shipping. Our team will provide you with a shipping quote after your order is placed. Upgrade your Ford Diesel truck with the ATS Stage 5 Package for a reliable and high-performance driving experience.
