Product Description

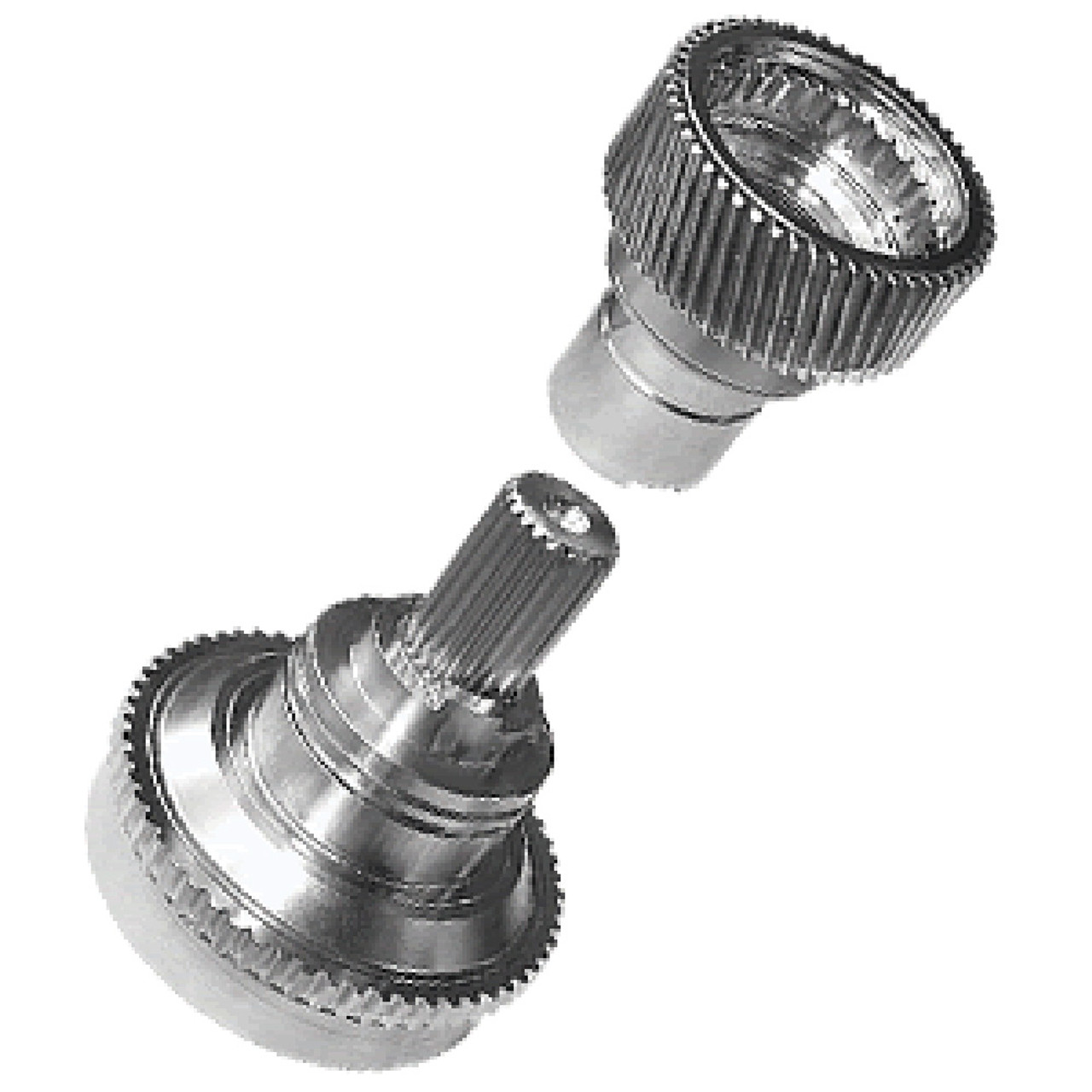

The ATS 304-302-2164 Billet Output Shaft is a critical upgrade for strengthening the drivetrain in 1994-2007 5.9L Cummins trucks equipped with 47RH, 47RE, or 48RE transmissions. Designed to replace the factory output shaft, this billet unit eliminates one of the most common failure points in high-horsepower and heavy-duty applications.
Manufactured from high-strength billet steel, this output shaft is engineered to handle significantly increased torque loads compared to stock components. Whether you're towing heavy loads, running performance tuning, or building a high-horsepower Cummins, this upgrade provides the durability and reliability needed to prevent catastrophic transmission failure.
This 29 spline output shaft is precision machined for exact fitment and long-term performance, making it an essential upgrade for any built transmission or performance rebuild.
FAQ
Q: Why upgrade to a billet output shaft?
A: The factory shaft can fail under high torque. A billet shaft provides significantly greater strength and durability for performance and towing applications.
Q: What transmissions does this fit?
A: This shaft fits 47RH, 47RE, and 48RE transmissions.
Q: What does 29 spline mean?
A: It refers to the spline count on the shaft, which must match your transfer case or drivetrain setup.
Q: Is this required for high horsepower builds?
A: Yes, it is highly recommended for trucks making increased power to prevent drivetrain failure.
Fitment
- 1994-2002 Dodge Ram 2500/3500 5.9L Cummins (47RH / 47RE)
- 2003-2007 Dodge Ram 2500/3500 5.9L Cummins (48RE)
Key Features
- Billet steel construction for maximum strength
- 29 spline design for proper drivetrain compatibility
- Eliminates common factory output shaft failure point
- Ideal for high horsepower and towing applications
- Precision machined for exact fitment
- Designed for 47RH, 47RE, and 48RE transmissions
Specifications for ATS 304-302-2164
| Specification | Details |
|---|---|
| Part Number | 304-302-2164 |
| UPC | Not Available |
| GTIN | Not Available |
| Product Type | Billet Output Shaft |
| Spline Count | 29 Spline |
| Transmission Compatibility | 47RH, 47RE, 48RE |
| Engine Compatibility | 5.9L Cummins |
| Model Years | 1994-2007 |
| Material | Billet Steel |
| Installation | Transmission Disassembly Required |
| Shipping Info | Standard Ground Shipping |
| Warranty | Limited Manufacturer Warranty |
| California Prop 65 | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
