MAHLE
MAHLE 224-3666WR-0.25MM PISTON KIT W/RINGS (.25MM) FOR 2008-2010 FORD SUPERDUTY WITH 6.4L POWERSTROKE ENGINE
- SKU:
- MCI2243666WR025MM
- MPN:
- 2243666WR025MM
- Shipping:
- Calculated at Checkout
Description

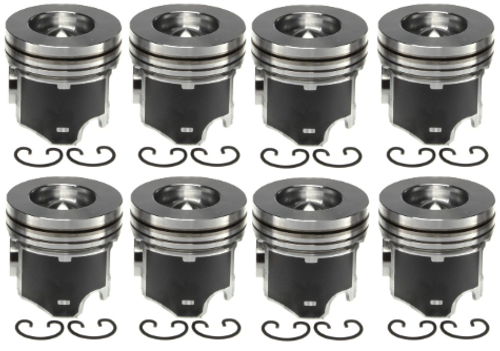

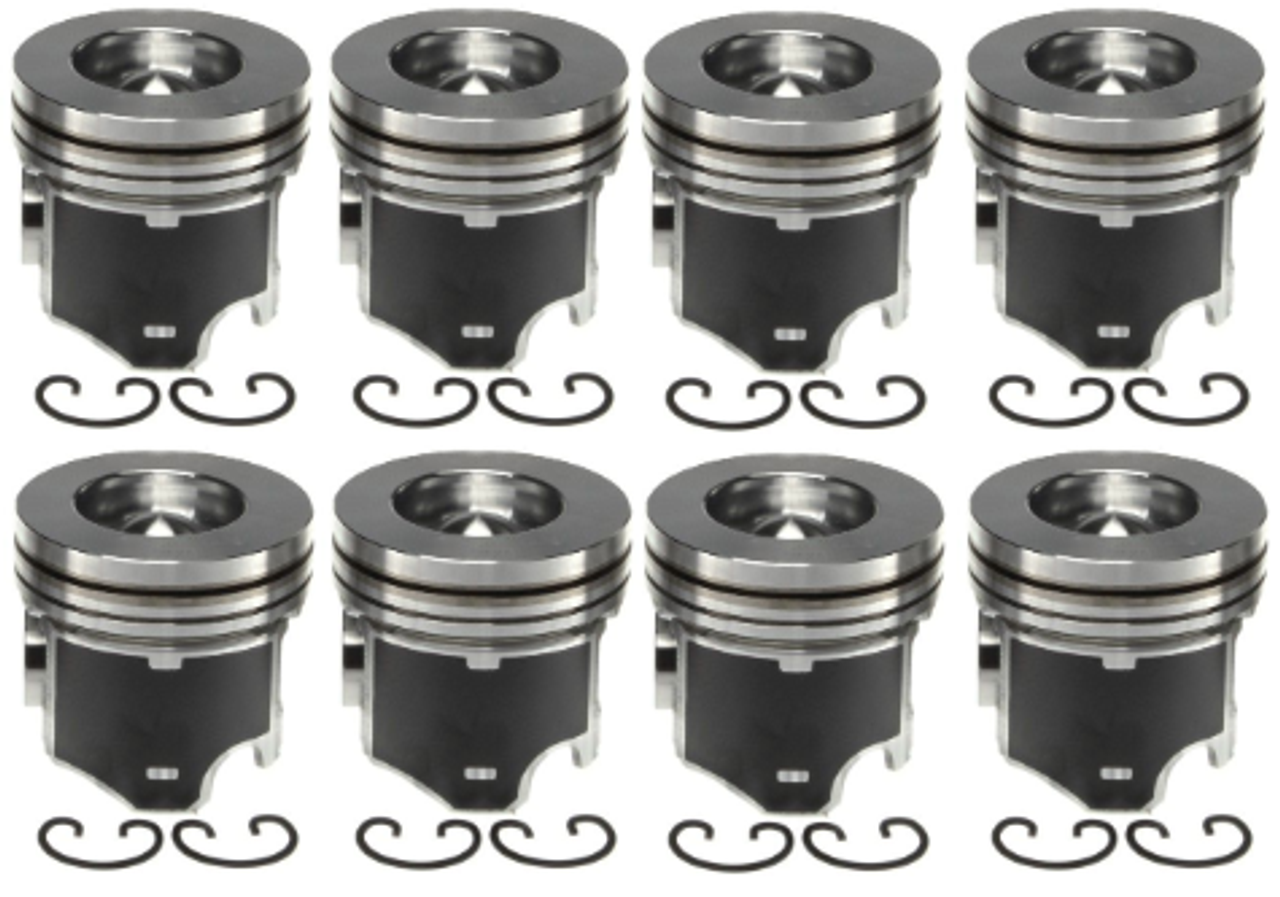

The MAHLE 224-3666WR-0.25MM Piston with Rings is a high-quality piston and ring set designed for the 2008–2010 Ford 6.4L Powerstroke diesel engines. This set includes eight pistons, each with rings, and is engineered to meet or exceed OEM specifications.
?️ Specifications
-
Bore Size: 3.876 inches (0.25mm oversize)
-
Compression Height: 0.151 inches
-
Material: Aluminum
-
Ring Type Code: RFK13PF
-
Skirt Type: Coated
? Vehicle Fitment
This piston set is compatible with the following Ford 6.4L Powerstroke diesel engines:
-
2008–2010 Ford F-250, F-350, F-450, F-550
-
2008–2010 Ford Super Duty trucks
-
2008–2010 Ford E-250, E-350, E-450 vans
? Key Features
-
OE Quality: Manufactured to stringent specifications, ensuring durability and performance.
-
Coated Skirt: Reduces friction and wear for smoother operation.
-
Expansion Controlled Design: Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control.
-
Lightweight Design: Reduced reciprocating mass without sacrificing reliability, improving engine response and reducing bearing loads.
-
Pin Offset: Reduces engine noise.
SDR Required Flag | No |
---|---|
Warranty Time UOM | Months |
Warranty Time | 12 |
Country of Origin (Primary) | China |
Taxable | Yes |
Harmonized Tariff Code (Schedule B) | 8409914000 |
Life Cycle Status Code | Available to Order |
Oversized | Yes |
---|---|
Top Compression Ring Thickness | 2.50 mm |
Second Compression Ring Thickness | 2.00 mm |
Oil Ring Thickness | 3.00 mm |
Piston Pin Outside Diameter | 38.496 mm |
Piston Head Type | Bowl |
Piston Material | Aluminium |
Piston Recess Depth (mm) | 15.9 |
---|---|
Coated Skirt | Yes |
Piston Pin Hole Location | Center |
Piston Pin Retention Type | Fixed |
Piston Recess Diameter (mm) | 57.5 |
With Piston Rings | Yes |
Measure Skirt Clearance At | 43MM from Bottom |
Bore Diameter (mm) | 98.454 |
Piston Item Grade | OE Replacement |
Compression Height (mm) | 52.29 |
Piston Skirt Clearance (mm) | 0.232 |
Piston Length (in) | 3.11 |
Piston Length (mm) | 79 |
Piston Recess Diameter (in) | 2.26 |
Piston Skirt Clearance (in) | 0.0091 |
Piston Recess Depth (in) | 0.626 |
Piston oversize | 0.25 mm |
Type of package | Smallest Pack (Consumer Level) |
---|---|
Quantity per packing unit | 8 |
package level GTIN | 00027067928832 |
Height (Inch) | 9.25 |
Width (Inch) | 11.375 |
Length (Inch) | 13.75 |
weight (Pounds Gross) | 3.4005 |
