MAHLE

MAHLE 224-3503WR.020 PISTON W/RINGS (.020) FOR 2003-2007 FORD SUPERDUTY WITH 6.0L POWERSTROKE ENGINE

(No reviews yet) Write a Review
SKU:
MCI2243503WR020
MPN:
2243503WR020
Shipping:
Calculated at Checkout
  • MAHLE 224-3503WR.020 PISTON W/RINGS (.020) FOR 2003-2007 FORD SUPERDUTY WITH 6.0L POWERSTROKE ENGINE
  • MAHLE 224-3503WR.020 PISTON W/RINGS (.020) FOR 2003-2007 FORD SUPERDUTY WITH 6.0L POWERSTROKE ENGINE
  • MAHLE 224-3503WR.020 PISTON W/RINGS (.020) FOR 2003-2007 FORD SUPERDUTY WITH 6.0L POWERSTROKE ENGINE
  • MAHLE 224-3503WR.020 PISTON W/RINGS (.020) FOR 2003-2007 FORD SUPERDUTY WITH 6.0L POWERSTROKE ENGINE
$929.68

Description

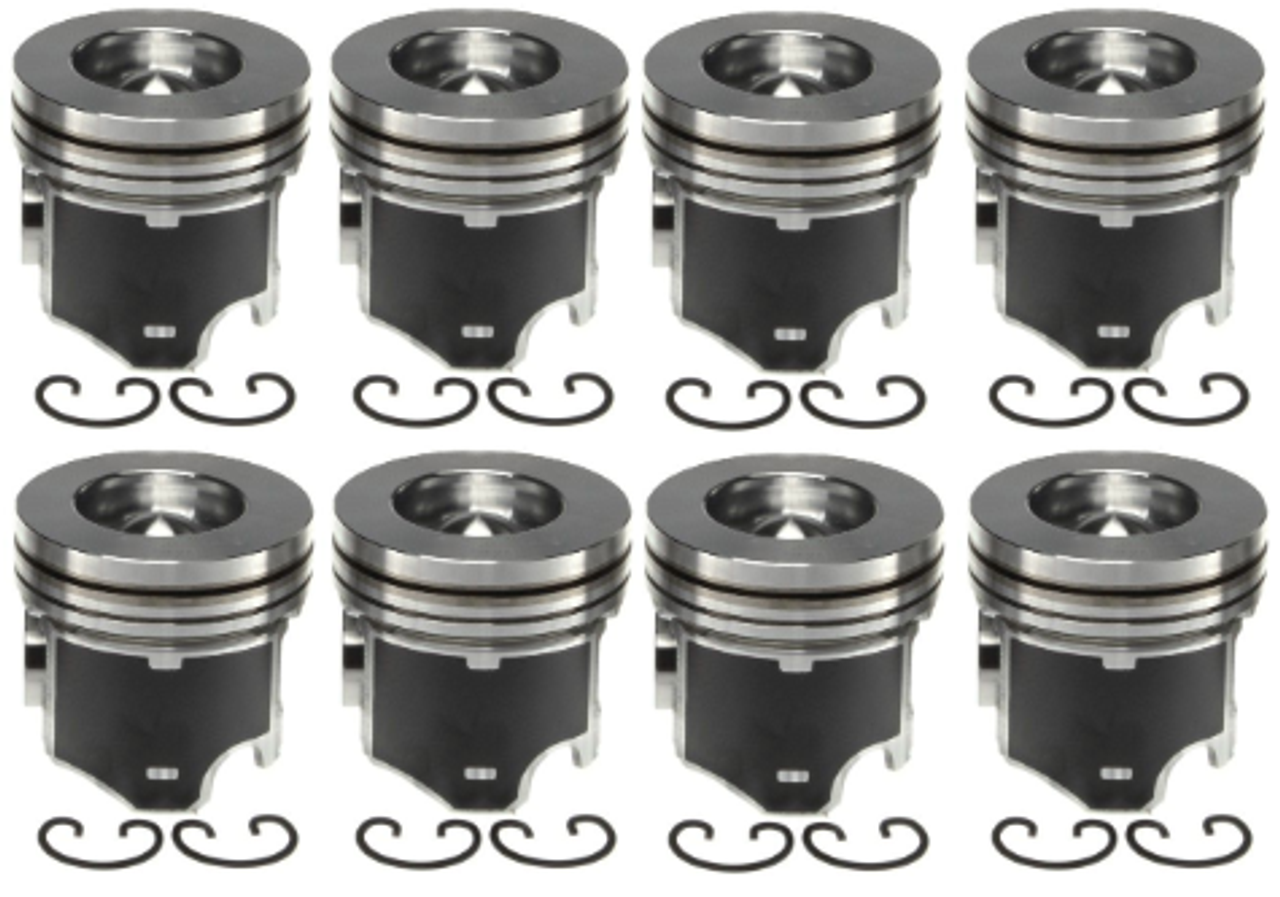

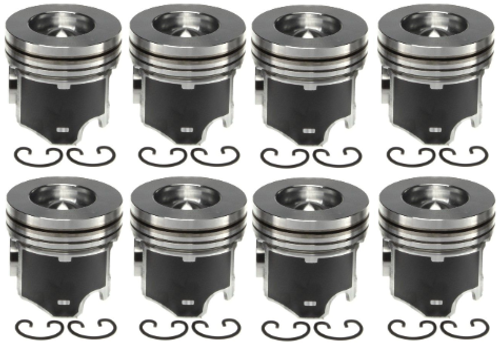

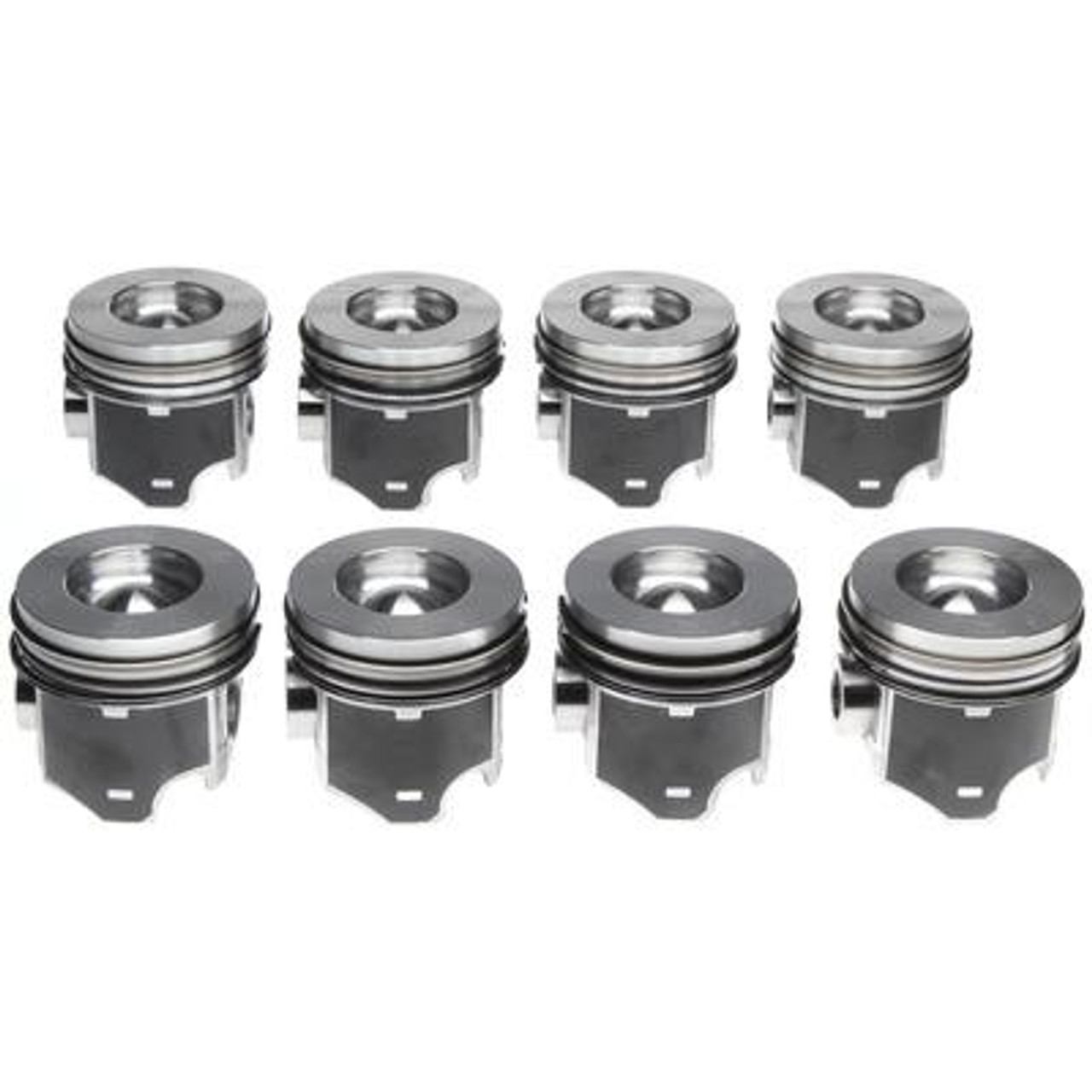

The MAHLE 224-3503WR.020 is a high-quality piston and ring set designed for the 2003–2007 Ford 6.0L Powerstroke diesel engines (built after September 22, 2003). This set includes eight pistons, each with rings, and is engineered to meet or exceed OEM specifications.


?️ Specifications

  • Bore Size: 4.120 inches (0.020" oversize)

  • Compression Height: 2.059 inches

  • Material: Aluminum

  • Compression Ring Groove: 2.30mm

  • Second Ring Groove: 2.00mm

  • Oil Ring Groove Width: 3.50mm

  • Piston Pin Diameter: 1.339 inches (34.0mm)

  • Pin Type: Floating; Center Location

  • Skirt Type: Coated

  • Piston Skirt Clearance: 0.004 inches

  • Recess Depth: 0.665 inches

  • Recess Diameter: 31.89cc Combustion Chamber

  • Ring Type: Keystone Top Ring


? Vehicle Fitment

This piston set is compatible with the following Ford 6.0L Powerstroke diesel engines:

  • Ford F-250, F-350, F-450, F-550 (2003–2007)

  • Ford Excursion (2003–2005)

  • Ford E-250, E-350, E-450, E-550 vans (2003–2007)


? Key Features

  • OE Quality: Manufactured to stringent specifications, ensuring durability and performance.

  • Coated Skirt: Reduces friction and wear for smoother operation.

  • Expansion Controlled Design: Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control.

  • Lightweight Design: Reduced reciprocating mass without sacrificing reliability, improving engine response and reducing bearing loads.

  • Pin Offset: Reduces engine noise.



SDR Required Flag No
Warranty Time UOM Months
Warranty Time 12
Country of Origin (Primary) China
Taxable Yes
Harmonized Tariff Code (Schedule B) 8409914000
Life Cycle Status Code Available to Order



Oversized Yes
Top Compression Ring Thickness 2.30 mm
Second Compression Ring Thickness 2.00 mm
Oil Ring Thickness 3.44 mm
Piston Pin Outside Diameter 34.01 mm
Piston Head Type Bowl
Piston Material Aluminium



Coated Skirt Yes
Piston Item Grade OE Replacement
Compression Height (mm) 52.29
With Piston Rings Yes
Piston oversize 0.020 in



Type of package Smallest Pack (Consumer Level)
Quantity per packing unit 5
package level GTIN 00027067913142
Height (Inch) 9.25
Width (Inch) 11.375
Length (Inch) 13.75
weight (Pounds Gross) 2.452



The MAHLE 224-3503WR.020 Piston with Rings is a premium-grade piston set engineered specifically for 2003–2007 Ford Super Duty trucks equipped with the robust 6.0L Powerstroke diesel engine (post-September 22, 2003 models). Designed with precision, this set includes eight high-performance pistons, each accompanied by rings, meticulously crafted to meet or exceed original equipment manufacturer (OEM) specifications.

Constructed from lightweight aluminum, each piston features a bore size of 4.120 inches, with a 0.020-inch oversize for enhanced performance. The piston design incorporates a keystone top ring for optimal combustion and reduced emissions, while its coated skirt minimizes friction and wear, promoting smoother engine operation. This innovative design reduces reciprocating mass, improving engine response without compromising reliability.

The MAHLE 224-3503WR.020 set is not only compatible with Ford F-250, F-350, F-450, and F-550 models from 2003 to 2007 but also fits the Ford Excursion (2003–2005) and various E-series vans within the same production years. Each piston is crafted to control thermal expansion, ensuring tighter fitting clearances that lead to lower engine noise and better oil management.

Specific features include a compression height of 2.059 inches, meticulously engineered piston pin diameter of 1.339 inches, and well-defined ring groove dimensions for superior performance. Engineered to last, this piston set is backed by a 12-month warranty and is available for order from trusted automotive suppliers. Upgrade your Ford Powerstroke’s performance with the MAHLE 224-3503WR.020 piston set – the perfect blend of quality, durability, and advanced engineering for your heavy-duty needs.
