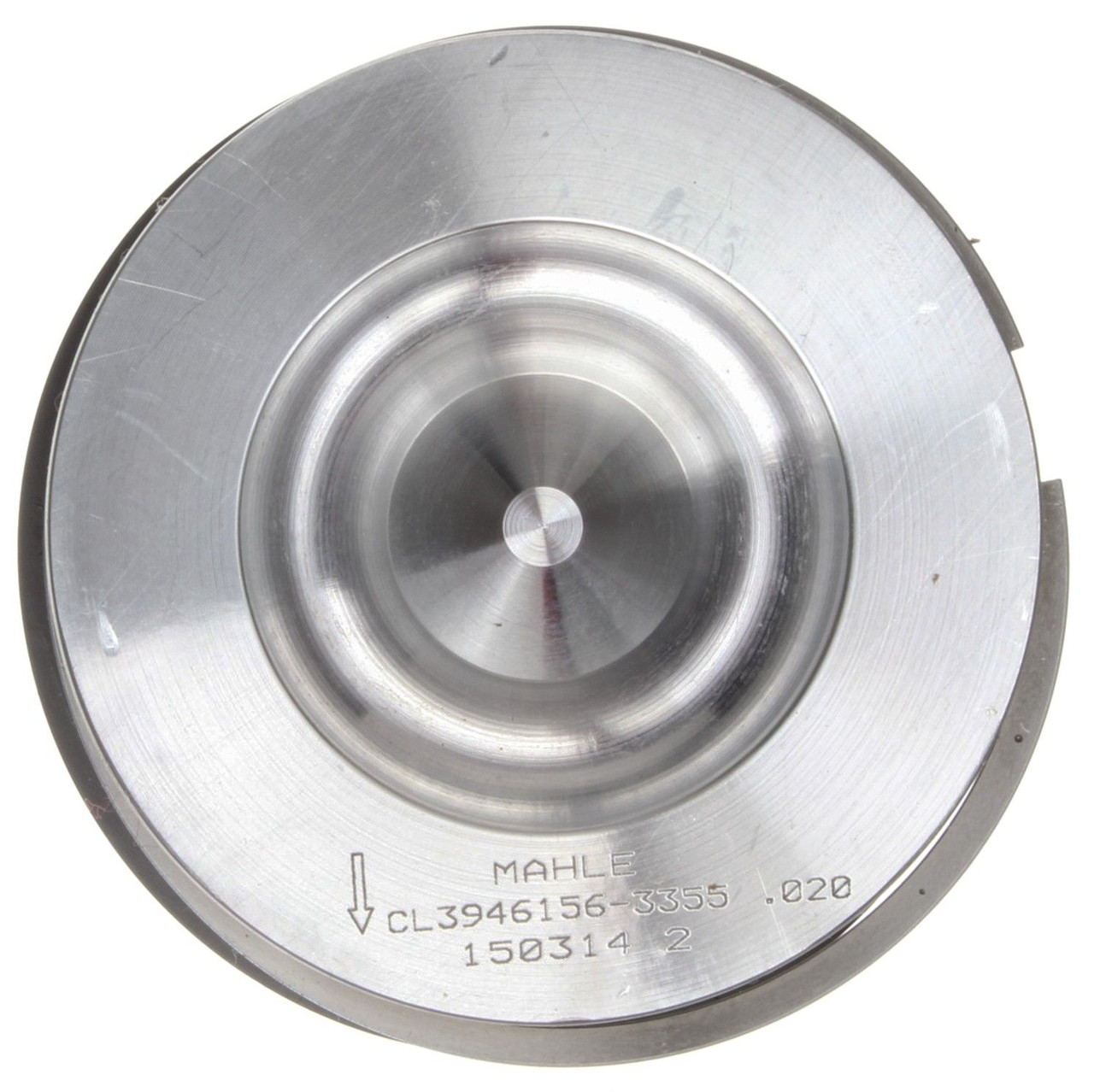

MAHLE 224-3355WR.020 PISTON KIT W/RINGS (.020) FOR 1998.5-2002 CUMMINS 5.9L ENGINE

(No reviews yet) Write a Review
SKU:
MCI2243355WR020
MPN:
2243355WR020
Shipping:
Calculated at Checkout
  • MAHLE 224-3355WR.020 PISTON KIT W/RINGS (.020) FOR 1998.5-2002 CUMMINS 5.9L ENGINE
  • MAHLE 224-3355WR.020 PISTON KIT W/RINGS (.020) FOR 1998.5-2002 CUMMINS 5.9L ENGINE
  • MAHLE 224-3355WR.020 PISTON KIT W/RINGS (.020) FOR 1998.5-2002 CUMMINS 5.9L ENGINE
  • MAHLE 224-3355WR.020 PISTON KIT W/RINGS (.020) FOR 1998.5-2002 CUMMINS 5.9L ENGINE
  • MAHLE 224-3355WR.020 PISTON KIT W/RINGS (.020) FOR 1998.5-2002 CUMMINS 5.9L ENGINE
  • MAHLE 224-3355WR.020 PISTON KIT W/RINGS (.020) FOR 1998.5-2002 CUMMINS 5.9L ENGINE
$890.76

Description

The MAHLE 224-3355WR.020 is a high-quality piston kit designed for the 1998.5–2002 Dodge Ram 2500/3500 trucks equipped with the 5.9L Cummins 24-valve engine. This kit is ideal for engine rebuilds requiring a 0.020" overbore, offering enhanced durability and performance.

 Specifications

  • Bore Size: 4.035 inches (102.16 mm)

  • Oversize: +0.020 inches

  • Material: Aluminum

  • Compression Height: 2.818 inches (71.6 mm)

  • Piston Pin Diameter: 1.575 inches (40.00 mm)

  • Piston Pin Retention: Floating pin

  • Head Type: Reentrant bowl

  • Recess Depth: 0.740 inches (18.82 mm)

  • Recess Volume: 48.03 cc

  • Ring Grooves:

    • Top Compression Ring: 3.00 mm

    • Second Compression Ring: 2.40 mm

    • Oil Ring: 4.00 mm

  • Ring Type Code: GCL-40UAW

  • Skirt Clearance: 0.0047 inches (measured 0.472 inches from the bottom of the skirt)

  • Casting Number: 102L55A2

  • Maximum Oversize: +0.040 inches (1.00 mm)

  • Application: Non-High Output (Non-HO) engines, VIN code 6



Vehicle Fitment

This piston kit is compatible with the following vehicles:

  • Dodge Ram 2500/3500 (1998.5–2002) equipped with the 5.9L Cummins 24-valve engine



Additional Notes

  • Sold in Sets: Pistons are sold individually; a quantity of six is required for a complete engine rebuild.

  • OE Quality: Manufactured to original equipment specifications, ensuring reliable performance and longevity.

  • Installation: Proper installation is crucial; ensure all mating surfaces are clean and free of debris before sealing.



The MAHLE 224-3355WR.020 piston kit is engineered specifically for the 1998.5–2002 Dodge Ram 2500 and 3500 trucks equipped with the robust 5.9L Cummins 24-valve engine. This high-performance piston kit is tailored for those undertaking an engine rebuild that requires a 0.020” oversize bore, making it a reliable choice for enhancing durability and optimizing engine performance.

Crafted from premium aluminum, the MAHLE piston kit features a bore size of 4.035 inches (102.16 mm) and a compression height of 2.818 inches (71.6 mm). The innovative design includes a reentrant bowl head type, maximizing combustion efficiency to deliver improved power and fuel economy. The floating pin retention system ensures a precise fit and smooth operation within the engine assembly.

With precision-engineered ring grooves, the piston kit incorporates a top compression ring measuring 3.00 mm, a second compression ring of 2.40 mm, and a 4.00 mm oil ring, all designed to reduce friction and minimize wear, thereby extending engine life. Additionally, the kit maintains a skirt clearance of 0.0047 inches, ensuring optimal piston movement within the cylinder.

Manufactured to meet original equipment specifications, the MAHLE piston kit guarantees OE-quality performance, providing peace of mind and exceptional reliability for your engine rebuild project. Each piston is sold individually, and a total of six is necessary for a complete engine reconstruction, making it easy to procure just what you need.

Prioritize thorough installation by ensuring all mating surfaces are clean and debris-free for optimal sealing, thereby securing the longevity of your rebuilt engine. Trust MAHLE for your performance piston needs and revitalize your Cummins engine with quality you can depend on.
