Product Description

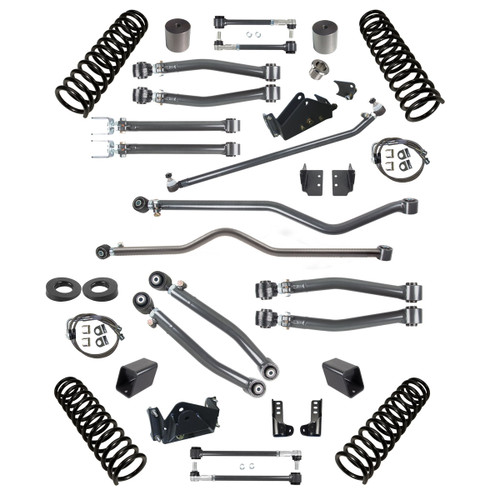

Synergy Jeep JK 4.5 Inch Lift Stage 3 Suspension System includes all the components from the Stage 2 System but exchanges the Fixed Length Lower Control Arms for Adjustable Lower Control Arms (8051, 8052) and adds Adjustable Upper Control Arms (8053, 8054) front and rear. The Adjustable Control Arms are required for locating the front/rear axles with lift heights over 3 inch for adjusting the pinion angles when using aftermarket 1310-1350 drive shafts. This system also adds Front and Rear Adjustable Track Bars for centering the axles under the vehicle at the increased ride height. This system will fit 37 inch tires with stock fenders or 40 inch tires with high fenders.
Details:
- Fits 07-18 Jeep Wrangler Unlimited JK 4-Door
- Stage 3 key features are front and rear track bar relocation brackets, flipped drag link, and adjustable upper and lower control arms
- Front and rear bump stop extension kits
- Front and rear sway bar links
- Front and rear extended Stainless Steel steel braided brake lines
- Synergy double adjuster sleeve pinch bolt assembly allows for adjustment of control arm, track bar, tie rod, and drag link length without removal
- Front and rear track bar relocation brackets raise track bar mounting positions increasing suspension roll center heights which improves handling on and off road
- Lower control arms manufactured from high quality crush resistant 1-3/4X.188 inch Wall 1026 DOM tubing to increase durability and correct caster
- Features Synergy Dual Durometer Bushings (DDB) with Teflon bearing surface for a maintenance free design focusing on performance, flex, longevity, and ride quality.
- Front and rear lower shock mounts
- Optional front sway bar disconnect system for ultimate trail articulation mounts sway bar up and out of the way when disconnected from the axle
- Progressive wound coil spring manufactured using the latest in CNC hot winding technology keeps spring from coming unbound at full suspension droop
- Suspension components feature an abrasion-resistant Powdercoat finish for maximum durability and corrosion resistance
- 100 percent bolt on components assure an easy, trouble free installation with the use of basic hand tools
- Requires a maximum 4-3/4 inch backspace wheel or wheel spacer with factory wheel setup. 4-1/2 inch back spacing is recommended
- Synergy suspension systems are a modular design so all components are available separately
Notes:
- 2012+ JK's lifted over 2 inch will require exhaust spacers (5017), or a front aftermarket drive shaft to prevent interference with the exhaust.
- 3 inch and up lifts, aftermarket driveshafts are recommended
- Springs are designed to provide the advertised amount of lift with use of aftermarket bumpers, wInch tire carriers. More lift will occur on vehicles in stock trim.
- Springs retain the factory rake of the vehicle where the rear is higher than the front. Vehicle should sit level when loaded. Request one size shorter rear springs to level the vehicle out when unloaded.
- Requires 16 inch or larger wheel diameter
DETAILED FITMENT:
- 2007-2010 Jeep Wrangler X
- 2007-2017 Jeep Wrangler Unlimited Rubicon
- 2007-2017 Jeep Wrangler Rubicon
- 2007-2010 Jeep Wrangler Unlimited X
- 2007-2017 Jeep Wrangler Sahara
- 2007-2017 Jeep Wrangler Unlimited Sahara
- 2010-2017 Jeep Wrangler Unlimited Sport
- 2010-2017 Jeep Wrangler Sport
- 2011-2011 Jeep Wrangler 70th Anniversary
- 2011-2011 Jeep Wrangler Unlimited 70th Anniversary
- 2016 Jeep Wrangler 75th Anniversary
- 2016 Jeep Wrangler Sport S
- 2016 Jeep Wrangler Unlimited Sport S
- 2016 Jeep Wrangler Unlimited 75th Anniversary
- 2018 Jeep Wrangler JK Unlimited Rubicon
- 2018 Jeep Wrangler JK Sport
- 2018 Jeep Wrangler JK Unlimited Sahara
- 2018 Jeep Wrangler JK Sahara
- 2018 Jeep Wrangler JK Unlimited Sport
- 2018 Jeep Wrangler JK Rubicon
Elevate your off-roading experience with the SYNERGY 8043-45 4.5 Inch Lift Stage 3 Suspension System, designed specifically for 2007-2018 Jeep Wrangler JKU 4-Door models. This cutting-edge suspension upgrade ensures superior handling and performance, giving you the confidence to tackle any terrain.
The SYNERGY Stage 3 System enhances your Jeep's off-road capabilities by incorporating adjustable lower and upper control arms, allowing for precise axle alignment and improved pinion angles for compatibility with aftermarket drive shafts. Experience a smoother ride with enhanced stability, thanks to the added front and rear adjustable track bars.
- Compatible with 37-inch tires using stock fenders and 40-inch tires with high fenders
- Features front and rear track bar relocation brackets for better axle positioning
- Includes adjustable upper and lower control arms for enhanced performance
- Built from high-quality, durable materials for long-lasting usage
- Maintenance-free design with Synergy Dual Durometer Bushings for optimal ride quality
- Progressively wound coil springs made with advanced CNC hot winding technology
- Easy bolt-on installation with basic hand tools, requiring no modifications
- Optional front sway bar disconnect system for superior trail articulation
- Absorbs shocks from rough terrains with front and rear extended stainless-steel braided brake lines
Transform your Jeep into a formidable off-roading machine with the SYNERGY 8043-45 Suspension System. Unleash your adventurous spirit and conquer every trail with confidence and style.
