SYNERGY 8000-01 HD DRAG LINK FOR 07-18 WRANGLER JK/JKU

New and Improved Jeep JK Wrangler Heavy Duty Drag Link. Improving upon the success of our previous 8001 JK Drag Link, this version is larger in size and strength and completely eliminates unwanted Drag Link Flop. You will not find a better drag link on the market!

Benefits:

• Drag Link fits all JK Wranglers, including those with aftermarket JK axle housings.
• Larger tubing size than previous design improves drag link strength and steering feel. Offers a more direct connection to the road/trail compared to stock; no more bent drag links and constantly having to re-center your steering wheel.

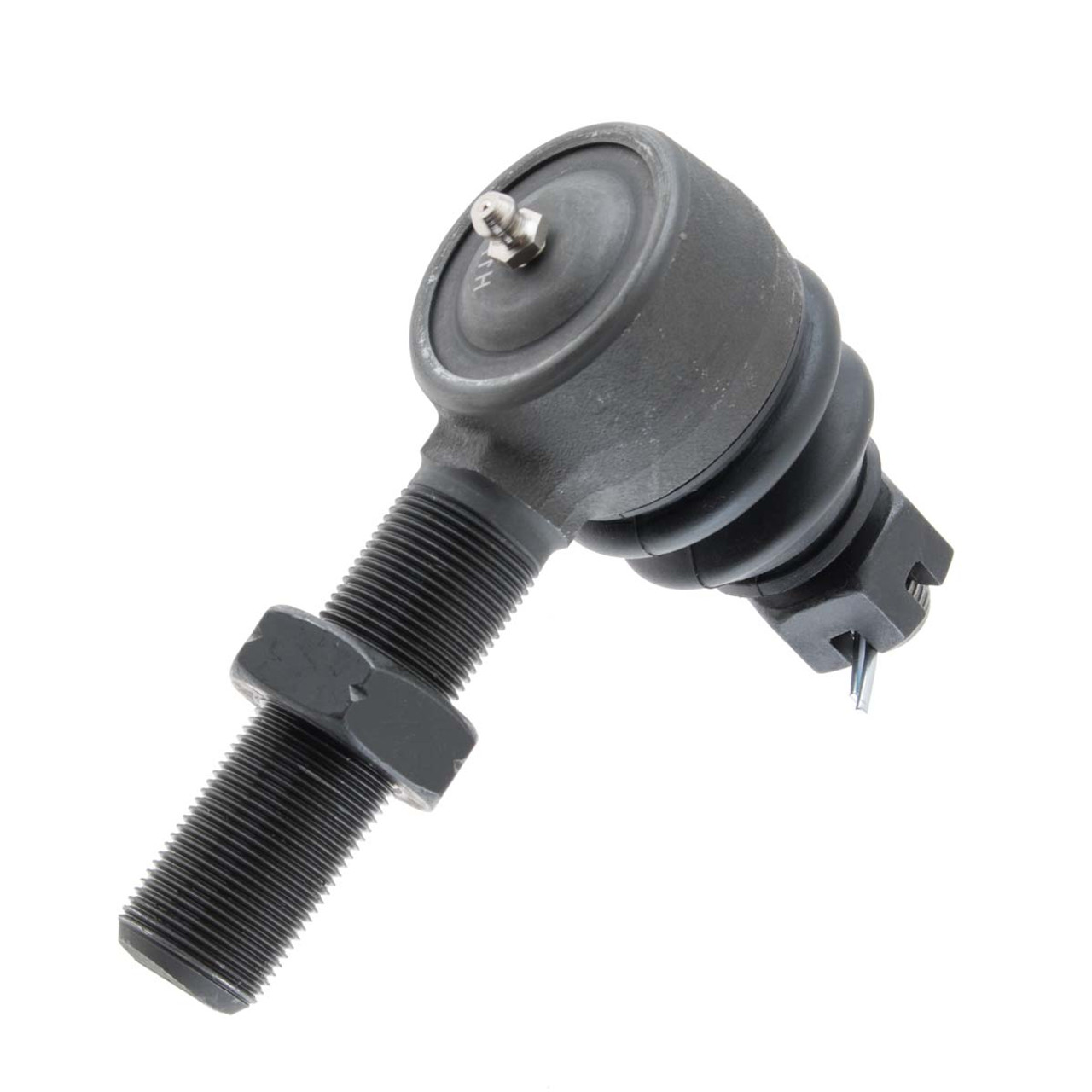

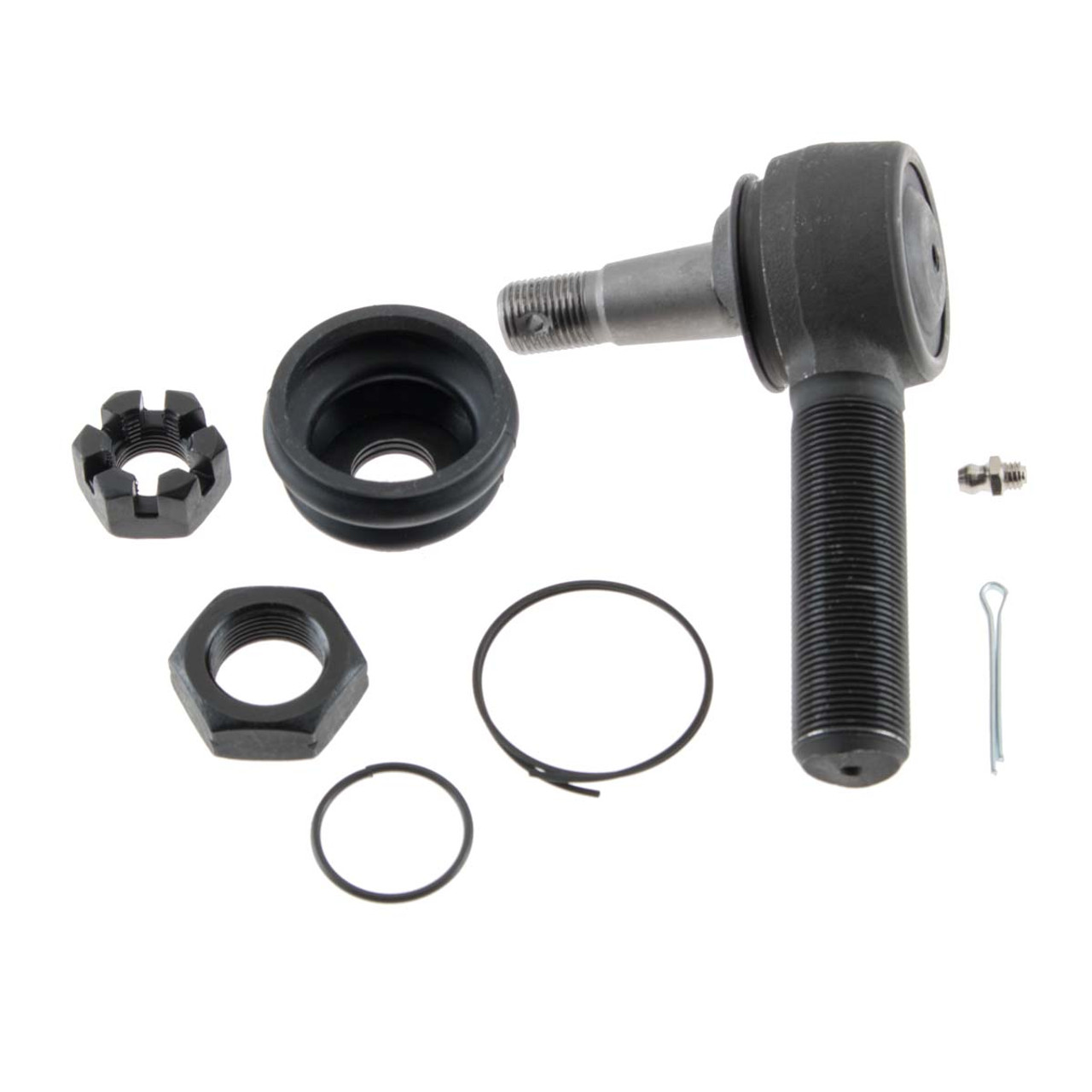

• Synergy Heavy Duty Metal on Metal Tie Rod Ends are stronger and more durable than stock and include grease fittings/replaceable dust boots for ease of maintenance. Synergy High Performance Grease recommended (4119).

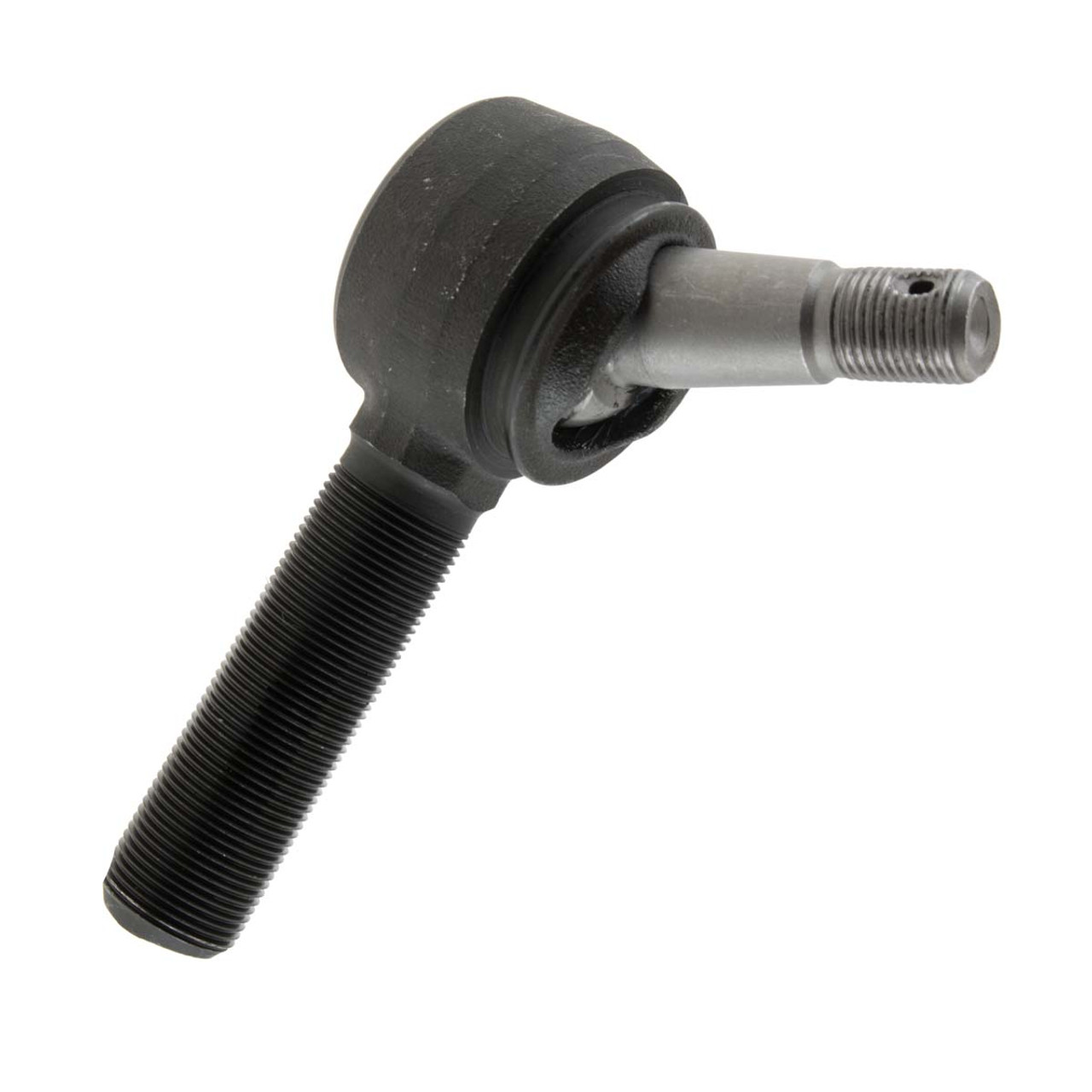

• Pitman arm side tie rod end is now a single plane design to eliminate unwanted drag link flop. You spoke and we listened. Drastically simplifies installation and only allows necessary degree of movement.
• Drag Link Flip Adapter is NOW INCLUDED for those who will be converting to high steer. No longer need to purchase this part separately.

Features:

• Drag Link bolts right into the factory mounts or can be relocated to the top of the steering knuckle for a high steer setup using included flip adapter (See Notes for high steer requirements)
• No factory drag link components need to be reused

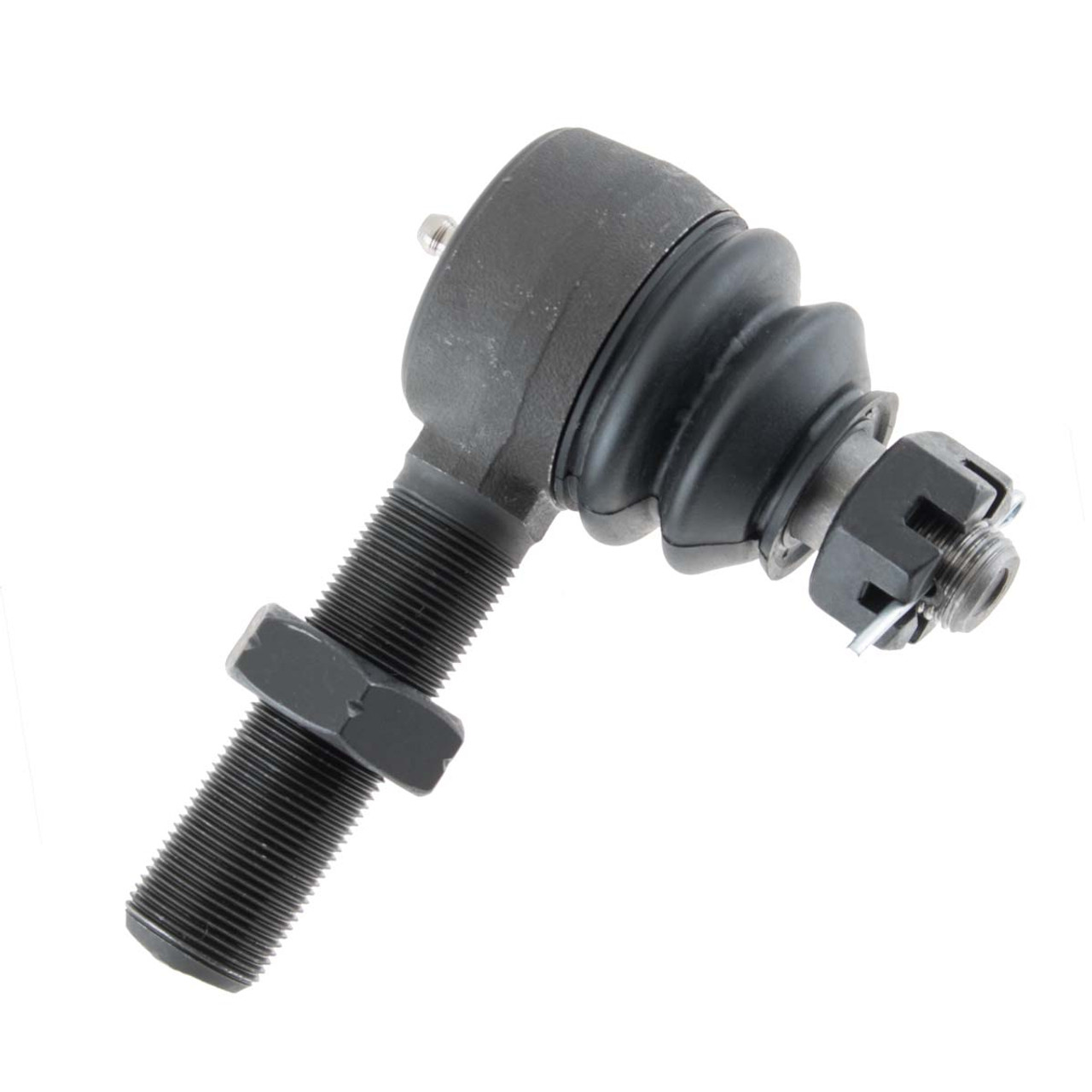

• Includes Synergy HD Metal on Metal Tie Rod Ends with a Single Plane version at the pitman arm side to completely eliminate Drag Link Flop
• Made from 1.5 inch x .250 wall DOM tubing
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance
• Synergy Double Adjuster Sleeve allows adjustment of drag link length without removing it from the vehicle
• 100 percent bolt-on components assures an easy, trouble free installation with the use of basic hand tools
• Synergy Tie Rod and Drag Link both use the same tie rod end thread pitch, so one spare tie rod end (4131-L) can be used in any location in the steering.

Includes:

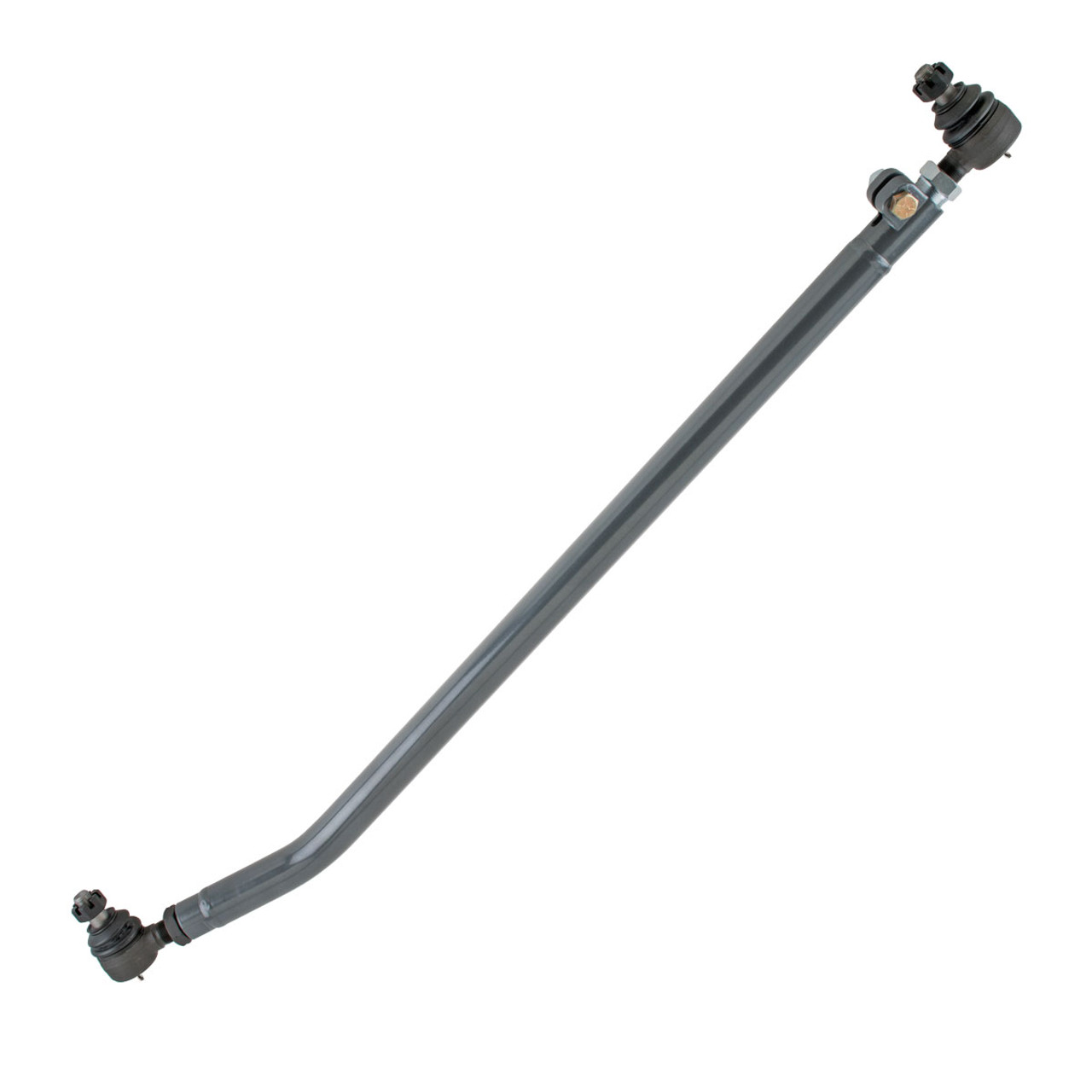

(1) Drag Link
(1) Rod End Double Adjuster Sleeve (3622-07-18-PL)
(1) Pinch Bolt Hardware
(1) Single Plane Tie Rod End (4139-L) (Pitman arm side)
(1) Tie Rod End (4131-L) (Knuckle side)
(1) Flip Adapter (8000-02)

Notes:

• Supersedes part number 8001.
• Drag Link is designed to be used in the stock location for up to 3 inch lift heights. For 3-6 inch lift heights the drag link should be flipped for a high steer setup.
• High Steer setup requires the Drag Link to be relocated to the top of the steering knuckle. Must use in conjunction with a raised front axle side track bar relocation bracket (See Synergy 8055, 8012-13, or 8009-01). Rear track bar should ideally be raised a similar amount at the axle.
• High Steer setup requires 16 inch or larger wheel diameter with a maximum 4-3/4 inch backspacing or wheel spacer with factory wheel setup. 4-1/2 inch back spacing is recommended.
• Minimum Length (Collapsed) = 38.75 inch
• Maximum Length (Extended) = 41.25 inch

DETAILED FITMENT:

• 2007-2010 Jeep Wrangler X
• 2007-2017 Jeep Wrangler Unlimited Rubicon
• 2007-2018 Jeep Wrangler Rubicon
• 2007-2010 Jeep Wrangler Unlimited X
• 2007-2017 Jeep Wrangler Sahara
• 2007-2017 Jeep Wrangler Unlimited Sahara
• 2010-2017 Jeep Wrangler Unlimited Sport
• 2010-2018 Jeep Wrangler Sport
• 2011-2011 Jeep Wrangler 70th Anniversary
• 2011-2011 Jeep Wrangler Unlimited 70th Anniversary
• 2016 Jeep Wrangler 75th Anniversary
• 2016 Jeep Wrangler Sport S
• 2016 Jeep Wrangler Unlimited Sport S
• 2016 Jeep Wrangler Unlimited 75th Anniversary
• 2018 Jeep Wrangler JK Unlimited Rubicon
• 2018 Jeep Wrangler JK Sport
• 2018 Jeep Wrangler JK Unlimited Sahara
• 2018 Jeep Wrangler JK Sahara
• 2018 Jeep Wrangler JK Unlimited Sport
• 2018 Jeep Wrangler JK Rubicon

  Elevate your off-road adventures with the unbeatable SYNERGY 8000-01 HD Drag Link, engineered specifically for the 2007-2018 Jeep Wrangler JK and JKU. This state-of-the-art drag link guarantees enhanced strength and stability, eliminating unwanted Drag Link Flop to give you ultimate control over rugged terrains.

  The SYNERGY 8000-01 improves upon previous designs with its larger tubing size, offering a stronger drag link that directly connects you to the road or trail. Experience improved steering feel, and say goodbye to bent drag links and frequent steering wheel re-centering.

  • Heavy-duty drag link fits all JK Wranglers, including those with aftermarket axle housings.
  • Constructed from 1.5 inch x .250 wall DOM tubing for superior strength.
  • Includes Synergy Heavy Duty Metal Tie Rod Ends with grease fittings and replaceable dust boots for easy maintenance.
  • Single plane design at pitman arm side tie rod end completely eliminates drag link flop.
  • Drag Link Flip Adapter included for high steer conversions, simplifying upgrade processes.
  • 100% bolt-on components for quick, trouble-free installation using standard tools.
  • Robust abrasion-resistant powder coat finish ensures maximum durability and corrosion resistance.

  Transform your Jeep's steering performance today with the SYNERGY 8000-01 HD Drag Link. Designed for extreme durability and convenience, this drag link is your go-to solution for a stable and responsive driving experience both on and off the beaten path.
