SUNCOAST GMAX-CAT2-LB7-0103-4WD-LC ALLISON CAT 2 600 HP TRANSMISSION WITHOUT CONVERTER FOR 01-03 GM DURAMAX 4WD





This SunCoast Allison billet SFI certified billet flexplate replaces the factory flex plate with an improved billet steel one piece design. This eliminates the weak factory flex plate. This replacement Allsion flex plate is a must with the high torque in conjunction with a better designed torque converter that can transfer torque with no slip. The felxplate is bolted to the crankshaft and then the torque converter to the flex plate. This one piece billet flex plate is SFI certified to 29.3.

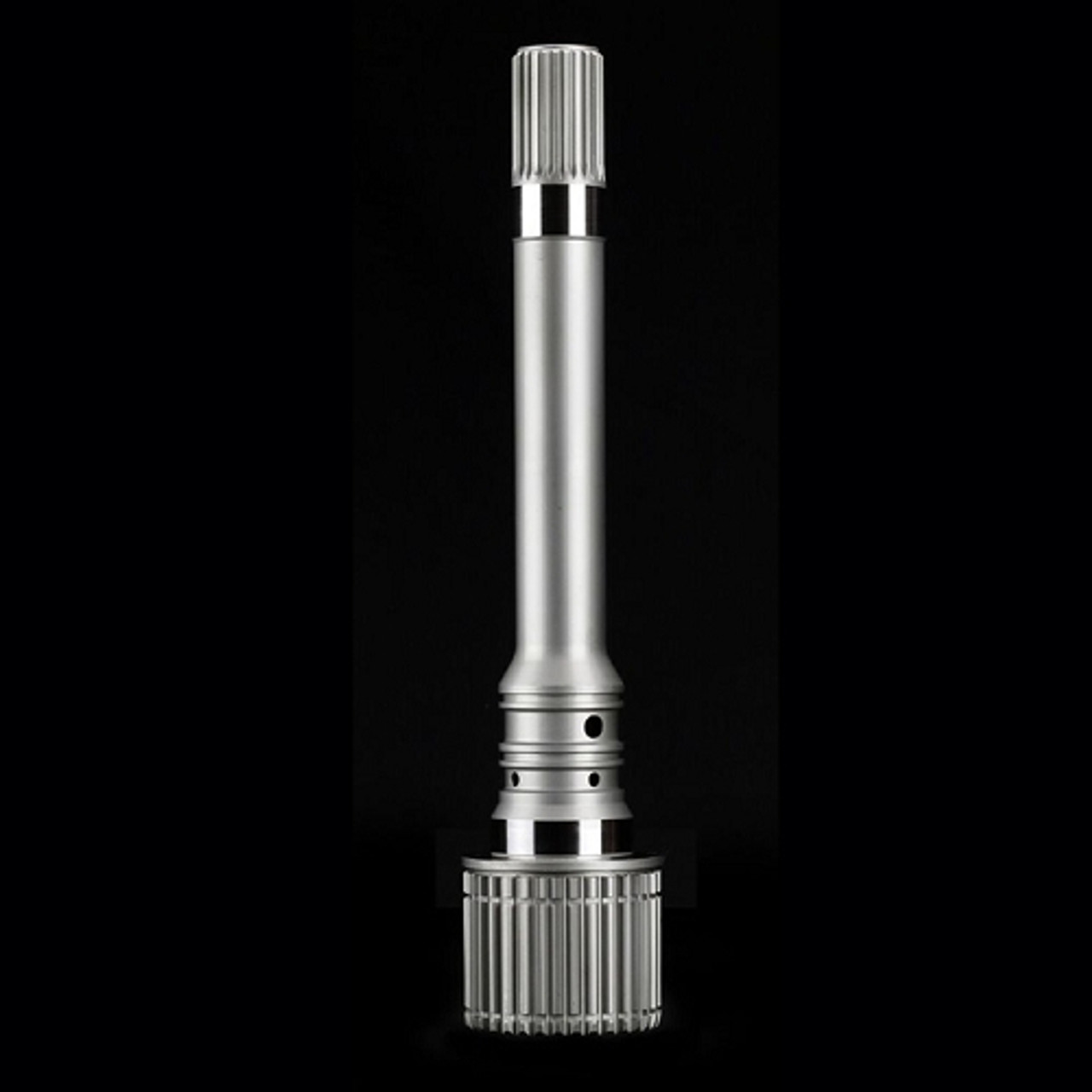

The input shaft is the first thing to go south with the Allison transmission. This Allison billet input shaft is built to withstand everything you can throw at it. This new Allison billet input shaft is manufactured from 9310 Vacumelt steel which increases torsional fatigue strength by over 50%. The SunCoast Allison billet input shaft is machined with a larger radius at the turbine spline for added strength. This a must for vehicles that are lifted with larger wheels and tires, for heavy towing and hauling, and vehicles with aftermarket turbos.

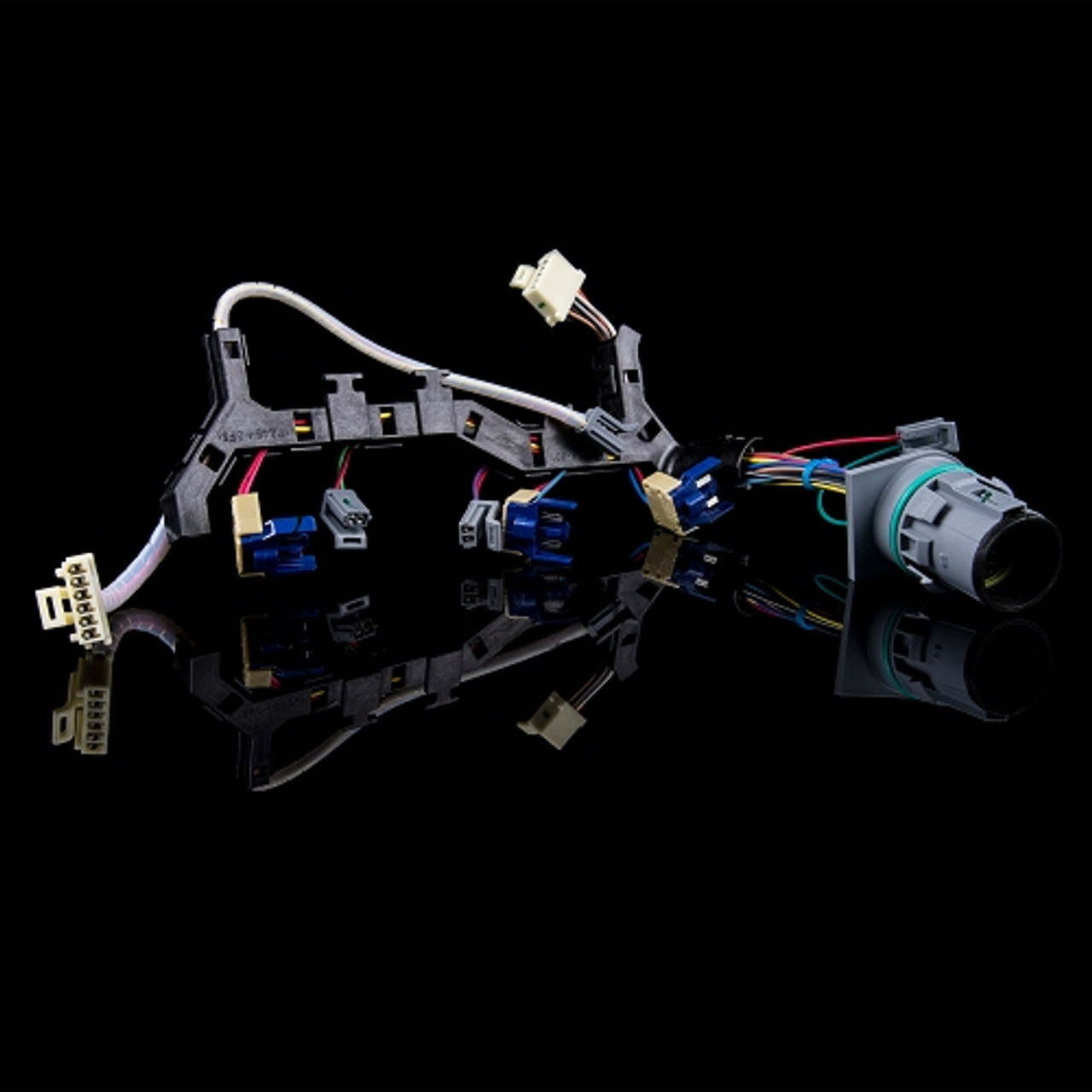

Every build here at SunCoast reliability is our number one priority. Each one of our (Category) Allison Transmissions comes with a new internal wiring harness. As the transmission continues to age, the plastic connectors become brittle and will break during disassembly. This will eventually lead to premature failure.

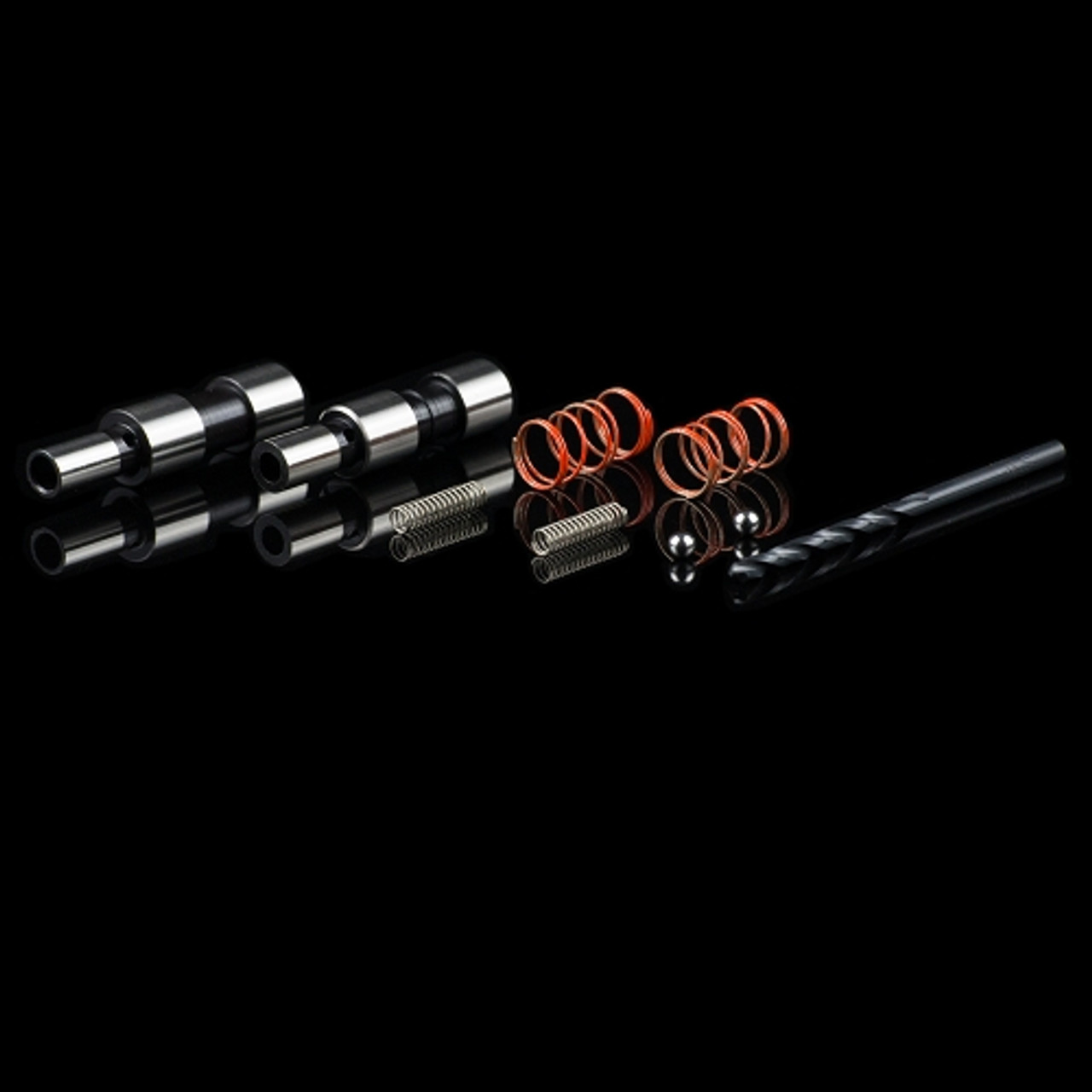

Some other transmissions exclusives include SunCoast proprietary C1, C2, C3, and C4 Alto carbonite frictions/Rabestos SCZ frictions that contain no center slots. These frictions utilize a waffle pattern in the material to help retain oil helping the clutch cool when not applied. Redesigned apply pistons with improved rubber compounds proven to hold higher heat. This custom piston allows us to use a thicker spring apply plate which replaces the thin OEM one that will cone and cause uneven apply surface resulting in premature clutch failure. Custom SunCoast apply plate that redirects fluid to better lubricate frictions from the inside out which lubes the entire friction rather than OEM style that lubricates from the center out leaving the inner half of the clutch burnt. Includes exclusive smart trim / clutch control valve. Includes all items needed to modify the C2 clutch piston for increased clutch durability.
