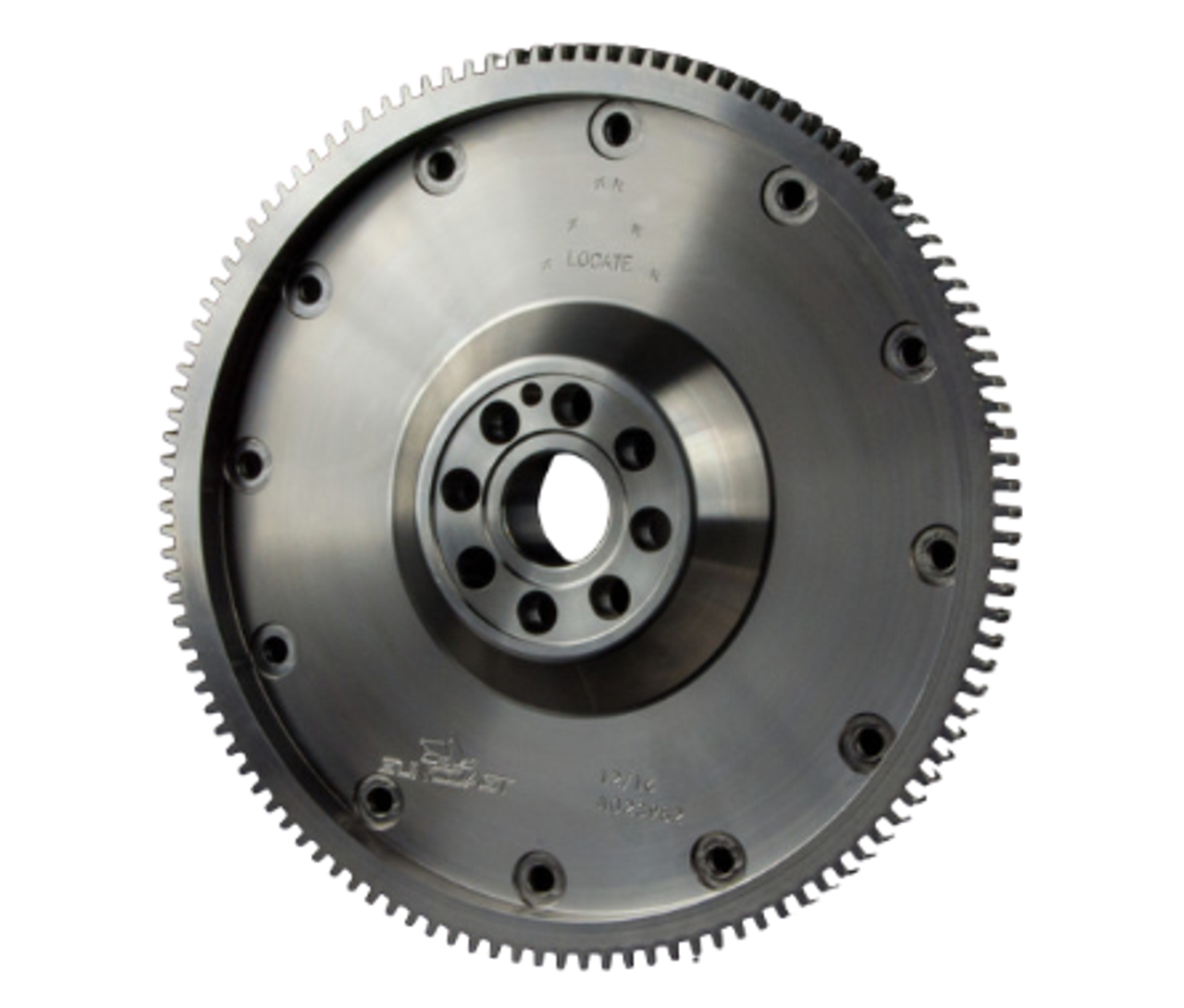

This replaces the factory flywheel/flex plate with a improved billet steel one-piece design and eliminates the heavy cast iron and the weak stamped steel flex plate. This is a must with the high torque in conjunction with a better designed torque converter that can transfer the torque with no slip.
The flex plate is bolted to the crankshaft and then the converter is bolted to flex plate. The torque from the motor is transferred to the flex plate, then goes from the flex plate to the torque converter and finally to the in- put shaft in the transmission. With increased torque from the engine, it can crack and/or rip the center out of a stock flex plate.
NOTE: A SFI certified flywheel flex plate is re- quired on drag racing vehicles running 11.99 and quicker in the 1/4 mile and 7.49 and quicker in the 1/8 mile, or any vehicle exceeding 135 mph. It was changed in 2008 from the 29.1 SFI specification to the SFI specification 29.3 for automatic transmission flex plates for diesel applications. The new rules for the flex plate requires that the material cannot be a stamped metal as are many OEM and after market flex plates. To maintain the SFI specification 29.3 requirements, the flex plate must be replaced every three years.
LML BILLET FLEX PLATE This replaces the factory flywheel/flex plate with a improved billet steel one-piece design and eliminates the heavy cast iron and the weak stamped steel flex plate. This is a...
LB7/LLY BILLET FLEXPLATE This replaces the factory flywheel/flex plate with a improved billet steel one-piece design and eliminates the heavy cast iron and the weak stamped steel flex plate. This is...
LBZ/LMM BILLET FLEXPLATE This replaces the factory flywheel/flex plate with a improved billet steel one-piece design and eliminates the heavy cast iron and the weak stamped steel flex plate. This is...
ALLISON BILLET C2 HUB This Shaft is machined from 300M billet steel. Stronger than the O.E.M. intermediate shaft Features an added lubrication hole for the P-3 sun gear and pilot CNC machined and...
ALLISON BILLET INPUT SHAFT Built to withstand everything thrown at it. Made from a select grade of super strength steel. Shaft is 50% stronger than the O.E.M. shaft. Made from 9310 Vacumelt steel...
ALLISON BILLET OUTPUT SHAFT Made from 300M Billet steel. Ideal for heavy duty service applications. Precision-ground for high-dimensional accuracy. Ideal for those who challenge their vehicles at...
ALLISON LB7/LLY T-CASE BRACKET Due to the cantilever effect of the rear trans mount, the transmission rear adapter housing is prone to cracking. The slightest amount of rear drive shaft vibration can...
ALLISON LBZ/LMM T-CASE BRACKET Due to the cantilever effect of the rear trans mount, the transmission rear adapter housing is prone to cracking. The slightest amount of rear drive shaft vibration can...
Elevate the performance of your 2006-2016 GM 6.6L Duramax with the SUNCOAST A1-P1B-6 GM ALLISON MODIFIED P1 SUN GEAR (6-SPEED). Specifically designed to overhaul the 6-speed Allison transmission,...
