Product Description
SOUTH BEND SDD3250-GK-ORG STREET/TOW DUAL DISC – 2005.5–2018 DODGE RAM 5.9L/6.7L CUMMINS (G56 6-SPEED)
Smooth engagement. Serious towing. The South Bend SDD3250-GK-ORG is a full-organic Street/Tow dual disc built for G56-equipped Cummins trucks that work. It delivers easy pedal effort with strong holding power for tuned daily drivers and heavy tow rigs—without the harsh on/off feel.
- Rating: ~550 HP / ~1,100 ft-lbs (vehicle-dependent)
- Friction: Full organic facings for the smoothest take-off under load
- Use case: Street, daily, and towing (not for competition use)
- Pressure plate: 3250 lb class diaphragm design for lighter pedal
- Flywheel: Included, matched for the kit
FITMENT
- Engine: 5.9L & 6.7L Cummins
- Model Years: 2005.5–2018 Ram 2500/3500 equipped with G56 6-speed
- Transmission: G56 6-speed manual only
WHAT'S INCLUDED
- Diaphragm pressure plate
- Two full-organic clutch discs with floater
- Matched flywheel
- Pilot bearing, release bearing, alignment tool, and hardware
CROSS-REFERENCE / ALTERNATIVES
- Prefer higher capacity (ceramic/feramic mix)? See SDD3250-GK (650HP/1300 TQ) for G56
- Browse all G56 clutch kits & accessories
- Recommended upgrade: South Bend HYDX.750 HD Hydraulic Assembly (2003+)

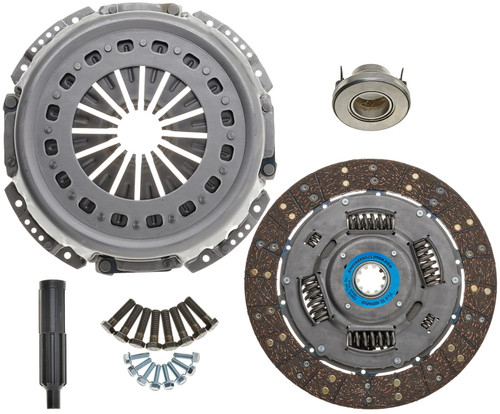

- Alternative single-disc: South Bend G56-OR-HD (for milder builds)
INSTALL NOTES
- Follow South Bend’s break-in procedure to ensure maximum life and smooth engagement.
- Inspect/refresh hydraulics on higher-clamp setups; HD hydraulics improve release consistency.
- Not SFI certified; for street/tow use only.
FAQ
Is this clutch good for frequent heavy towing?Yes. The full-organic facings provide the smoothest low-speed control for backing and launching under load, making it ideal for tow rigs when sized within the rating.
How does pedal feel compare to stock?
The diaphragm pressure plate keeps pedal effort comfortable while offering a strong clamp once engaged—daily-driveable for most owners.
Will it fit my 2007–2018 6.7L with G56?
Yes. This kit is designed for 2005.5–2018 Ram 2500/3500 trucks equipped with the G56 6-speed manual.
Should I upgrade the hydraulics?
It’s not strictly required, but higher-clamp clutches benefit from fresh or HD hydraulics for consistent release—especially on older trucks.
Is this clutch SFI certified or suited for competition?
No. It is a Street/Tow system and is not SFI-approved. For competition use, choose an SFI-rated package.
