Product Description

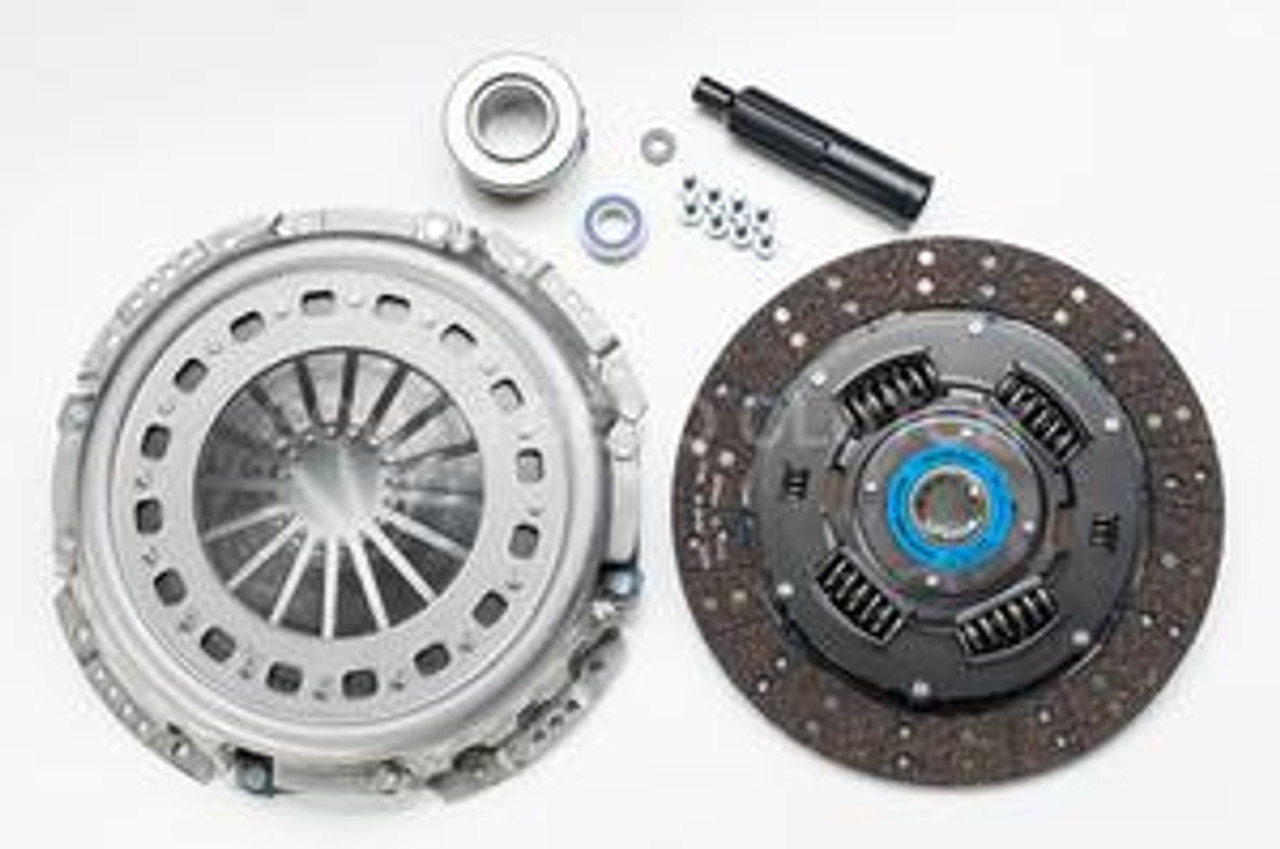

SOUTH BEND G56-OFER SINGLE DISC CLUTCH – 2005.5–2018 RAM 5.9L/6.7L CUMMINS (G56 6-SPEED)
Street/Tow holding power with daily-drive manners. The South Bend G56-OFER is an Organic/Feramic single-disc upgrade for G56-equipped Cummins trucks. It’s rated around 475 HP and 1,000 ft-lbs (vehicle dependent) with smooth modulation—ideal for tuned daily drivers and tow rigs that don’t need a dual disc.
- Friction: Organic/Feramic (OFE)
- Use Case: Street / Tow / Daily
- Approx. Capacity: 475 HP / 1,000 ft-lbs
- Pressure Plate: Performance diaphragm for lighter pedal vs. traditional levers
- Flywheel: Rep Kit (no flywheel) — not for use with the factory dual-mass flywheel
FITMENT
- Transmission: G56 6-speed manual
- Model Years: 2005.5–2018 Ram 2500/3500/4500 (G56-equipped)
- Engines: 5.9L & 6.7L Cummins
- Important: This OFER kit is a replacement clutch (no flywheel). If you’re on the OE dual-mass flywheel, choose an option that includes a single-mass flywheel (see Cross-Reference).
CROSS-REFERENCE / ALTERNATIVES
- G56-OFEK (with flywheel) — 475HP/1000 TQ
- G56-OR-HD (organic) — smoother OE-like drive, lower capacity
- G56-OK-HD (heavy-duty kit)

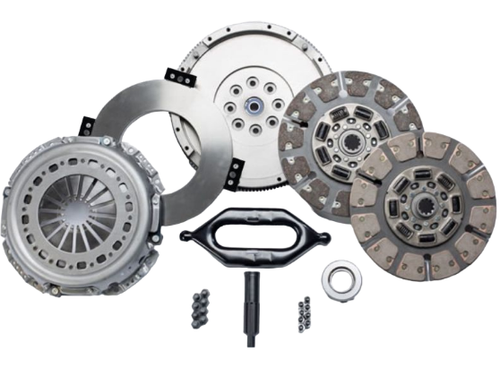

- SDD3250-G Street/Tow Dual Disc — ~650HP
- SDD3250-GK Street/Tow Dual Disc (with hydraulics) — ~650HP
- South Bend HYDX.750 Hydraulic Assembly (recommended refresh with higher-clamp clutches)
INSTALL NOTES
- Flywheel: OFER is a replacement disc/PP kit for single-mass flywheels; it will not work on the factory dual-mass flywheel.
- Break-In: Follow South Bend’s break-in for best life and smooth engagement.
- Hydraulics: Inspect or upgrade to HYDX.750 if pedal feel or release is inconsistent.
FAQ
Does G56-OFER include a flywheel?No. OFER is a “Rep Kit” (replacement) that reuses an existing compatible single-mass flywheel. If you’re on the OE dual-mass flywheel, choose G56-OFEK which includes a single-mass flywheel.
How much power will this clutch hold?
Approximately 475 HP / 1,000 ft-lbs in a well-sorted truck. Aggressive towing, gearing, and tire weight can affect holding capacity.
Is it good for daily driving and towing?
Yes. The Organic/Feramic mix is designed for street/tow use with smooth take-off and solid bite under load.
Will it work with my factory dual-mass flywheel?
No. The OFER kit does not work with the OEM dual-mass flywheel. Use G56-OFEK if you need a flywheel.
Do I need to upgrade hydraulics?
Not always, but higher-clamp clutches benefit from fresh/HD hydraulics. We recommend inspecting or upgrading to HYDX.750.
