Product Description
SOUTH BEND 1947-OKHD HEAVY DUTY SINGLE DISC CLUTCH KIT – 2000.5–2005.5 DODGE RAM 5.9L CUMMINS (NV5600 HO)
Built for tuned HO NV5600 trucks that still tow. The South Bend 1947-OKHD is a heavy-duty, single-disc organic clutch system designed for the 5.9L Cummins High Output (HO) with the NV5600 6-speed. It delivers smooth engagement, strong holding power, and durability for daily driving, work, and towing.
- Capacity: ~425 HP / ~900 ft-lbs (vehicle dependent)
- Disc: 13" diameter with ~3" wide premium organic lining
- Use case: Moderate tuning + heavy towing with street-friendly manners
- Includes: New flywheel matched to the kit for proper stack height
FITMENT
- Engine: 5.9L Cummins (High Output)
- Model Years: 2000.5–2005.5 Dodge Ram 2500/3500
- Transmission: NV5600 6-speed (HO)
- Input Shaft: 1-3/8" (1.375")—this kit is for HO NV5600 trucks with the larger input

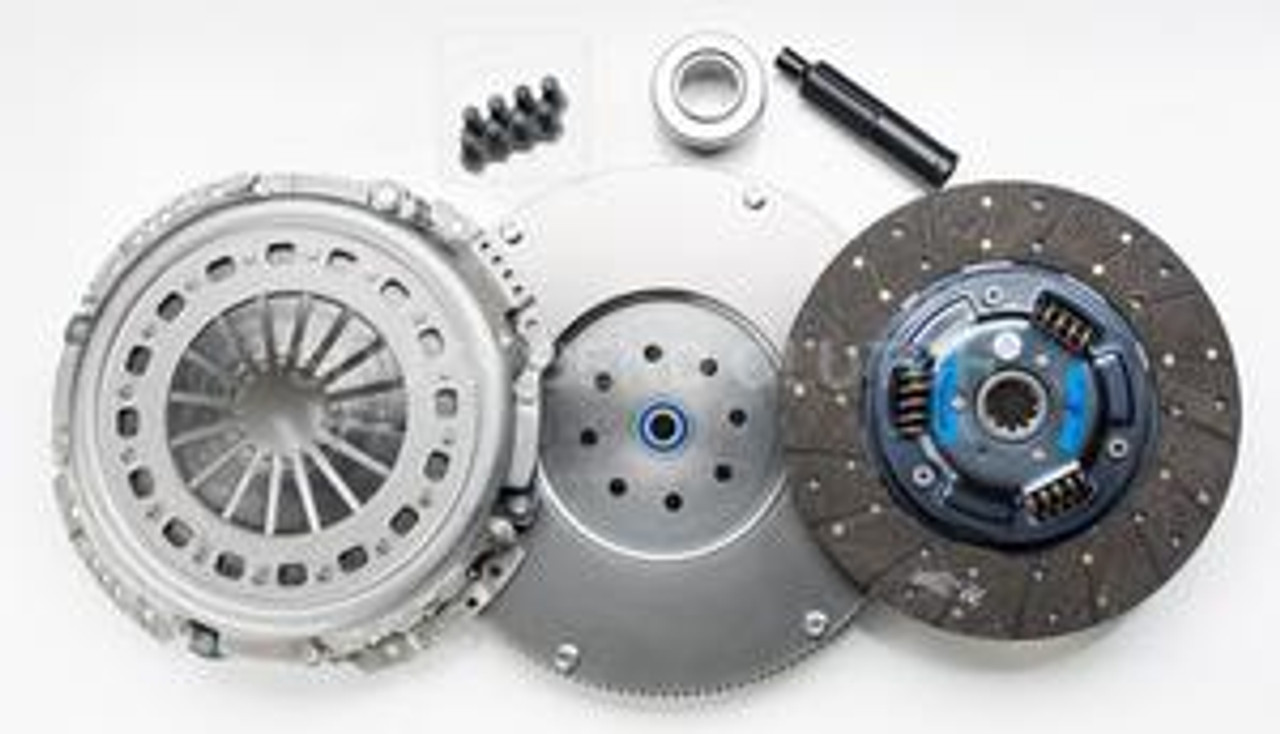

WHAT'S INCLUDED
- Pressure plate (HD clamp load)
- 13" organic single disc
- Matched flywheel
- Pilot bearing, release/throwout bearing
- Alignment tool & install hardware
CROSS-REFERENCE / ALTERNATIVES
- For non-HO/earlier NV5600 (1.25" input) or NV4500, see South Bend SDD3250-5 dual disc options
- For higher power or frequent competition use, consider South Bend dual-disc street/tow systems
- If planning future power increases, verify input shaft size before choosing an alternative clutch
INSTALL & HELPFUL NOTES
- Confirm input shaft diameter (HO = 1-3/8"). This kit is not for 1.25" inputs.
- Follow South Bend break-in procedure to maximize life and engagement quality.
- Inspect/refresh clutch hydraulics during installation for best pedal feel and release.
FAQ
Will this clutch handle heavy towing?Yes. The organic 13" disc with a 3" wide lining is designed for smooth, controlled engagement under heavy loads—ideal for work and tow rigs.
What power level is it actually rated for?
Typical guidance is up to ~425 HP and around ~900 ft-lbs on properly maintained trucks. If you plan to exceed that, consider a dual-disc.
Does it include a flywheel?
Yes. The kit includes a matched flywheel to ensure correct stack height and release geometry.
Is this for NV5600 HO only?
Yes—this 1947-OKHD kit targets the HO NV5600 (2000.5–2005.5) with the 1-3/8" input. Earlier non-HO or 1.25" input applications require different part numbers.
How’s the pedal feel?
Noticeably firmer than stock but remains street-friendly with predictable, smooth engagement.
