Product Description

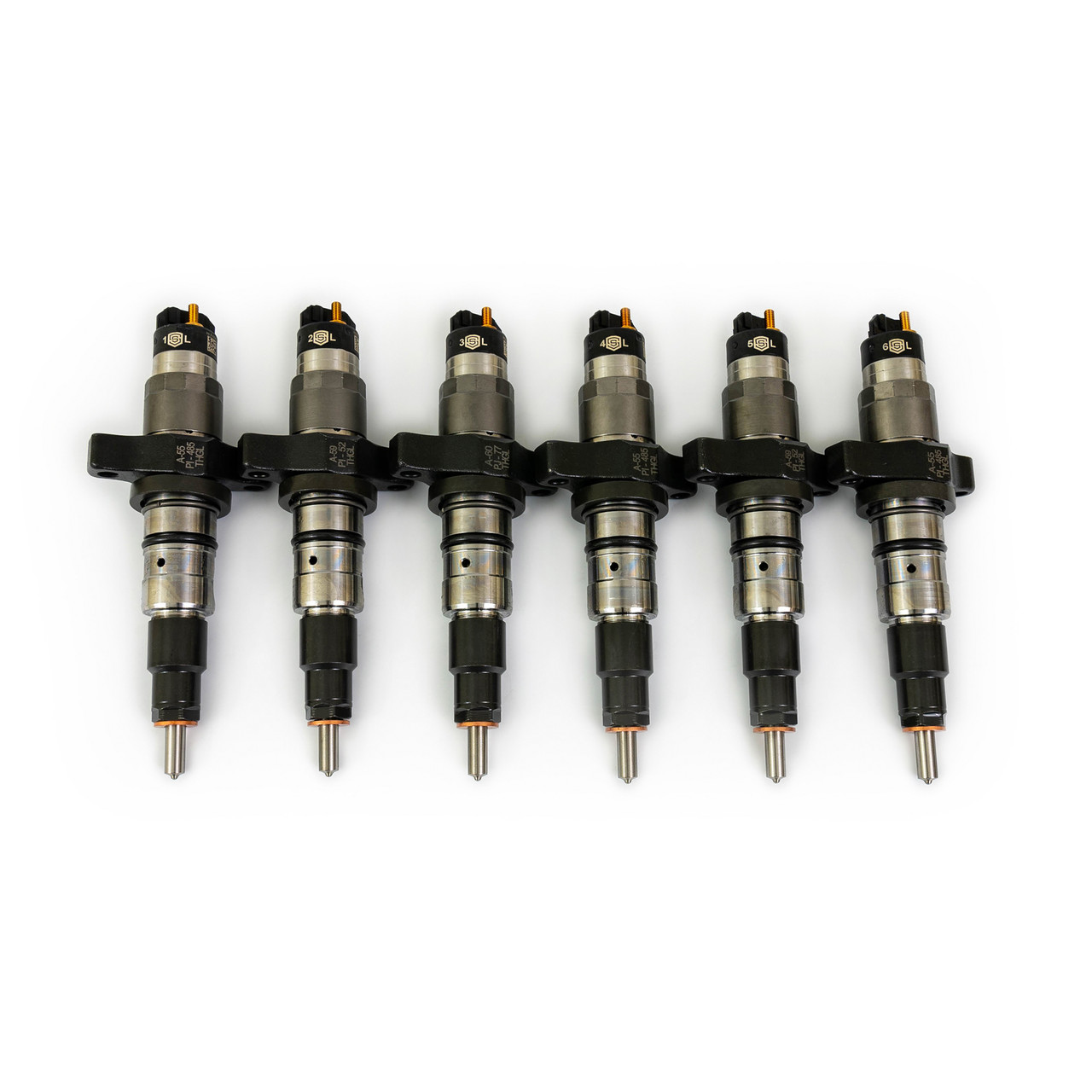

S&S Diesel 325-150SAC-SET is a NEW set of six 150% over injectors for the late 2004.5–2007 Dodge Ram 2500/3500 5.9L Cummins 24V. Built with SAC nozzles, tight OE-standard flow matching, and S&S’ proven calibration process for consistent, clean power when paired with proper air and fuel supply. (Tech basis: S&S late 5.9 injectors program.)
- SAC nozzles, proprietary honing; nozzles flow-matched to ~1% per set; injectors flow-matched to ~3% per set.
- Injection profile alignment across four pressure/energizing test points; spec matched to nozzle size.
- Built for serious fueling demands—requires appropriate turbo/air, CP3 supply, lift pump, and tuning.
Fitment
- Engine: Cummins 5.9L 24-valve common rail (late)
- Model Years: 2004.5, 2005, 2006, 2007
- Trucks: Dodge Ram 2500/3500
What’s Included
- (6) NEW S&S Diesel injectors – 150% over (SAC nozzle)
- Flow/variance matched as a set; ready for professional installation
Recommended Parts (CPP Internal Links)
- 5.9L Cummins Common Rail Injectors & Install Accessories
- 2003–2007 Cummins CP3 Injection Pumps (stock to 14mm)
- Injector Install Kits (model-year specific) – see:
- 2003–2005 CR Install Kit (use for 2004.5–2005 late trucks)
- 2006–2007 CR Install Kit
- S&S Diesel Injectors — Category
Helpful Notes
- 150% over injectors demand adequate air (appropriate turbo/turbos) and fuel supply (healthy CP3 and lift pump). Expect tuning and supporting mods.
- Always use new connector/feed tubes and the correct install kit for your model year to avoid sealing/contamination issues.
- Professional installation and injector quantity verification (balance rates) recommended.
Yes — these are for the late 5.9L CR (2004.5–2007, 325 HP rating). Early 2003–early-2004 (305 HP) use the early-style set.
What supporting mods are required for 150% over injectors?
At minimum: upgraded turbo(s), lift pump, a healthy CP3 with adequate displacement, and proper tuning. Stock air/fuel systems cannot support this injector size.
Is there a core charge on this NEW set?
S&S notes a $150 core charge if no core is returned across late 5.9 injector sets. Retailers may implement their own core policies; check your cart at checkout.
Are these flow-matched as a set?
Yes. Nozzles are matched to ~1% and injectors to ~3% using OE-standard test fluids and multi-point calibration for consistent rate shape.
