Product Description
The PSC SK689R36JP2-6.75W-1.5OS Cylinder Assist Steering Kit is a complete high-performance steering upgrade designed for the 2018-2020 Jeep Wrangler JL equipped with the 3.6L Pentastar Non-ETorque engine. Engineered for serious off-road builds, this PSC system replaces the factory electro-hydraulic steering system with a traditional high-flow hydraulic steering setup capable of handling oversized tires, heavy axle loads, and aggressive terrain. At the heart of this system is PSC’s Big Bore XD-JL steering gearbox, which increases piston size and sector shaft strength to dramatically improve steering torque and durability. This upgrade eliminates the weak factory steering feel common in JL models and provides precise steering control even when running lockers, large tires, or aftermarket axles. This kit includes a 6.75-inch stroke hydraulic assist cylinder, weld-on mounting tabs, and a 1.5-inch offset tie rod clamp designed specifically for aftermarket axles with 6.75 inches lock-to-lock travel. The system also converts the factory electro-hydraulic steering pump to a high-flow belt-driven mechanical pump, eliminating overheating issues while increasing steering power. For Jeep builders running Dana 44 or Dana 60 aftermarket front axles, this PSC cylinder assist system delivers the reliability and steering authority required for large tires and extreme trail environments.
Fitment
- 2018 Jeep Wrangler JL 3.6L Pentastar Non-ETorque
- 2019 Jeep Wrangler JL 3.6L Pentastar Non-ETorque
- 2020 Jeep Wrangler JL 3.6L Pentastar Non-ETorque
- 2-Door and 4-Door Wrangler JL models
- Requires aftermarket front axle with 6.75" lock-to-lock steering travel
- Designed for 1.5" offset tie rod clamp configurations
Specifications for psc SK689R36JP2-6.75W-1.5OS
| Specification | Details |
|---|---|
| Manufacturer | PSC Motorsports |
| Part Number | SK689R36JP2-6.75W-1.5OS |
| UPC | 687927188747 |
| GTIN | 687927188747 |
| Steering Gear | PSC Big Bore XD-JL Steering Gearbox |
| Steering Cylinder | 6.75" Stroke Hydraulic Assist Cylinder |
| Tie Rod Clamp Size | 1.5" Offset Clamp |
| Pump Type | High Flow Belt Driven Hydraulic Pump Conversion |
| Installation Type | Weld-On Cylinder Mount Tabs |
| Shipping Info | Ships via Ground or Freight depending on warehouse availability |
| Prop 65 | WARNING: Cancer and Reproductive Harm – https://www.P65Warnings.ca.gov |
Frequently Asked Questions
What problem does this PSC steering kit fix on Jeep JL models?
Many JL Wranglers experience weak steering feel and overheating issues from the factory electro-hydraulic pump. This PSC system replaces it with a traditional hydraulic steering system designed for high load off-road conditions.
Does this kit support oversized tires?
Yes. PSC designed this kit for Jeeps running large tires and aftermarket axles. The Big Bore XD steering gearbox and hydraulic assist cylinder significantly increase steering torque for tires over 35 inches.
Is welding required for installation?
Yes. The cylinder assist tabs included in this kit are weld-on style mounts that attach to the axle housing for proper cylinder positioning.
What components are included in the PSC steering kit?

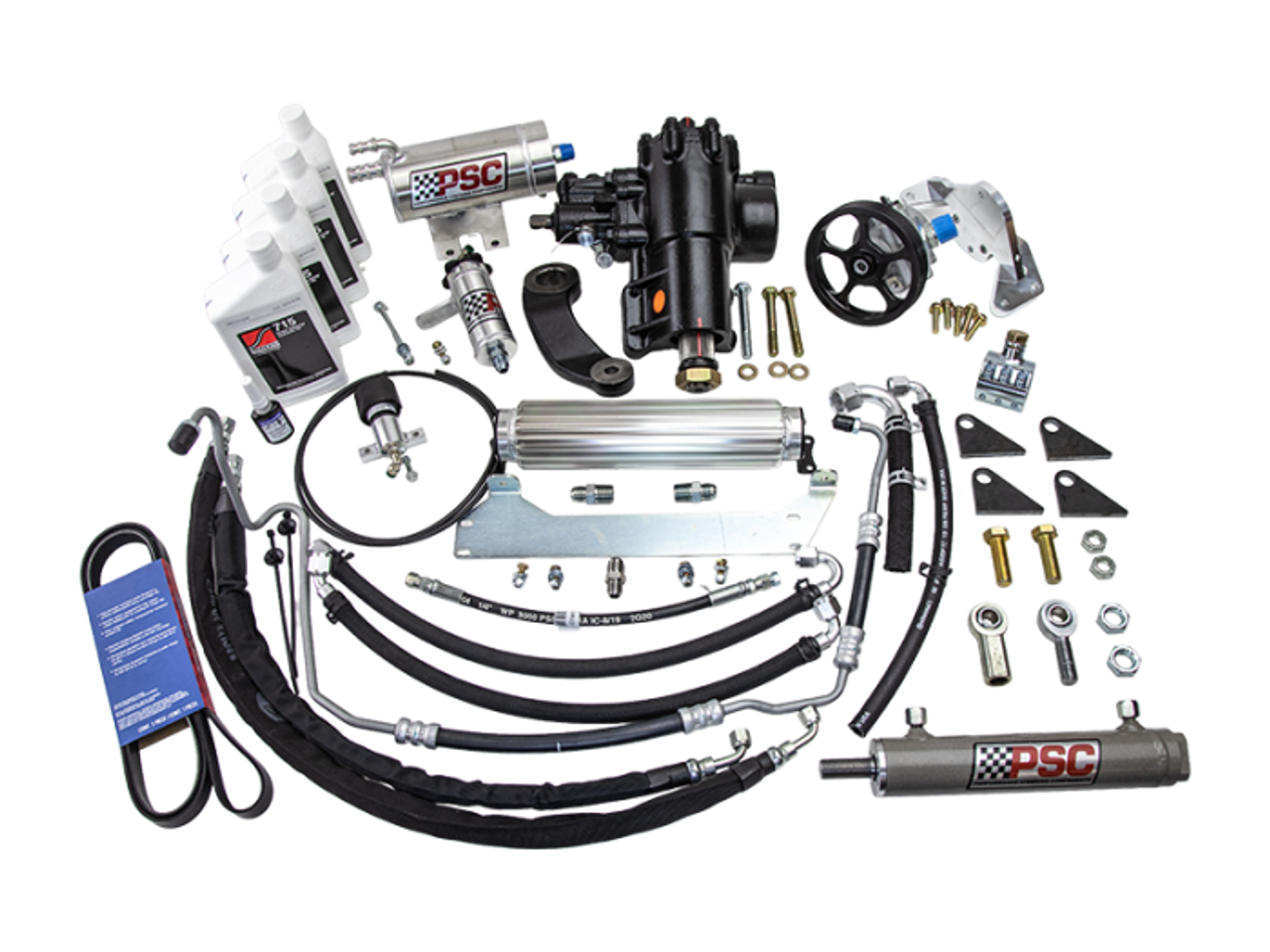

The system includes the Big Bore XD steering gearbox, hydraulic assist cylinder, high-flow mechanical pump conversion kit, steering hoses, remote reservoir, cooler, weld-on mounts, and all required installation hardware.
Is this compatible with factory JL axles?
This kit is intended for vehicles with aftermarket front axles or modified steering setups with 6.75" lock-to-lock travel and a 1.5" offset tie rod clamp configuration.
