PSC SC2226K DOUBLE ENDED XD STEERING CYLINDER KIT FOR FULL HYDRAULIC STEERING SYSTEMS, 2.25 INCH X 6.0 INCH X 1.125 INCH ROD

PSC Steering Assist Cylinders provide the steering power you need to tackle the toughest trails...go where you want to go with PSC!

Features:

• Double Ended, Double Acting

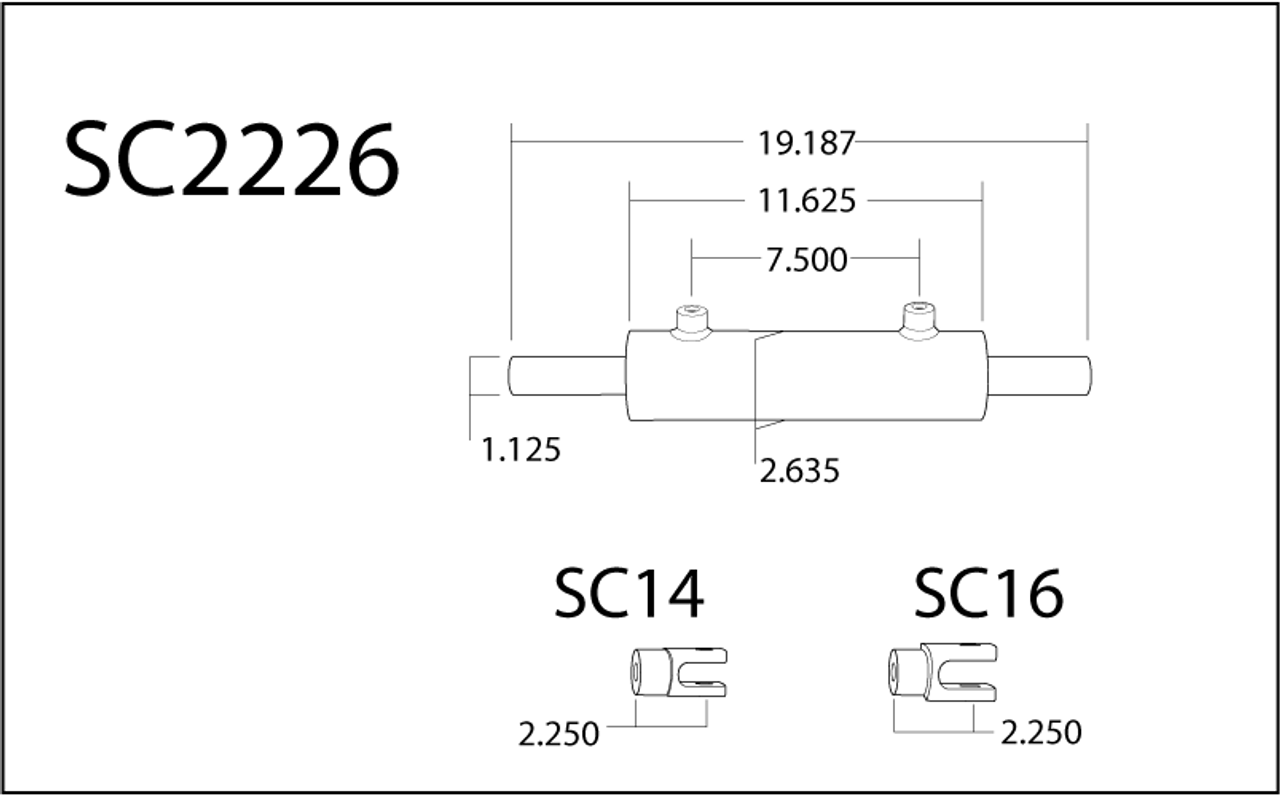

• 2.25 Inch Bore X 6 Inch Stroke X 1.125 Inch Rod Diameter
• Chromemoly Steel Rods with 3/4-16 Threaded Ends
• Welded, Single Piece Rod/Piston Construction
• 6AN High Pressure Port Connections
• Wiper Seals to prevent contaminant damage and extend service life
• Durable Powder-coated Finish
• Grooved Non Slip Housing
• Housing Machined for Use Up to Four (4) SCCL01KF Steering Cylinder Mounting Clamps
• Two (2) SCCL01KF Steering Cylinder Mounting Clamps with Flat Weld Plates Included
• Designed for use with OEM Toyota or Dana 44 Steering Axles

Tech:

Approximate Turning Ratios when paired with a Eaton Char-Lynn Steering Control Unit:

• FHV-CE120: 2.4 Turns Lock-To-Lock

The use of larger displacement Steering Control Units will deliver a Inchfirm Inch steering feel and will require additional driver steering effort.

For intermediate to severe duty applications, PSC highly recommends the use of four (4) SCCL01KF Steering Cylinder Mounting Clamps

The PSC SC2226K Double Ended XD Steering Cylinder Kit is engineered to deliver unparalleled steering power, essential for navigating the toughest trails and terrains. Featuring a robust design, this steering cylinder kit ensures that your full hydraulic steering system functions flawlessly, allowing you to conquer any adventure with confidence.

Crafted with precision, the PSC Steering Assist Cylinders boast a double-ended design that enhances steering response. With a bore dimension of 2.25 inches, a stroke of 6 inches, and a rod diameter of 1.125 inches, this kit is tailored for serious off-road enthusiasts looking for high-performance steering solutions. Made from chromemoly steel, the rods feature durable threaded ends for reliable connectivity.

• Double Ended, Double Acting for maximum output
• 2.25 Inch Bore X 6 Inch Stroke X 1.125 Inch Rod Diameter
• Chromemoly Steel Rods with 3/4-16 Threaded Ends
• Welded, Single Piece Rod/Piston Construction for added durability
• 6AN High Pressure Port Connections for effective fluid transfer
• Wiper Seals to prevent contaminant damage and extend service life
• Durable Powder-coated Finish to resist wear and tear
• Grooved Non Slip Housing for secure installation
• Machined Housing designed for use with up to four (4) SCCL01KF Steering Cylinder Mounting Clamps
• Two (2) SCCL01KF Steering Cylinder Mounting Clamps included
• Compatible with OEM Toyota or Dana 44 Steering Axles

For optimal performance, it's recommended to pair the kit with the Eaton Char-Lynn Steering Control Unit. Achieve a precise turning ratio of 2.4 turns lock-to-lock, and elevate your off-road experience with the trusted quality of PSC.
