Product Description

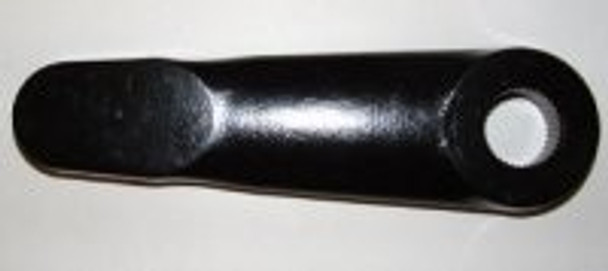

The PSC PA700 Universal Flat Pitman Arm is built for custom steering applications that demand flexibility, strength, and proper steering geometry. This flat undrilled arm is designed for 5.25-inch to 7-inch center-to-center setups and fits most 32-spline Saginaw power steering gearboxes, making it a strong choice for off-road rigs, custom truck builds, rock crawlers, and fabricated steering systems. PSC designed this arm without master keyways so the installer can adjust clocking as needed for the application. It can also be machined for a straight or tapered hole, top-down or bottom-up, depending on your steering layout.
For builders who need a universal pitman arm that can be tailored to the project instead of forcing the project to fit the part, the PSC PA700 gives you the flexibility to finish the steering system the right way.
Fitment
Universal fitment.
Designed for use with most 32-spline Saginaw power steering gearboxes.
Ideal for custom applications where the arm will be machined and matched to the specific drag link or steering linkage design.
Fitment Notes:
- 32-spline configuration
- 5.25-inch to 7-inch center-to-center design
- Full spline, no master keyways
- Undrilled for custom machining
- Can be drilled straight or tapered hole
- Can be configured top-down or bottom-up
Why Choose PSC PA700
PSC is a recognized name in high-performance steering, especially in off-road, rock crawling, race, and custom truck applications. The PA700 is a purpose-built universal arm for fabricators who need strength, spline engagement, and install flexibility instead of a one-size-fits-all replacement piece.
Specifications for PSC PA700
| Specification | Details |
|---|---|
| Part Number | PA700 |
| Brand | PSC Motorsports / Performance Steering Components |
| Product Type | Universal Flat Pitman Arm |
| Material | Steel |
| Finish | Black |
| Spline Count | 32-Spline |
| Center-To-Center Range | 5.25 Inch to 7 Inch |
| Hole Style | Undrilled; can be machined straight or tapered |
| UPC | 687927185364 |
| GTIN | 687927185364 |
| Shipping Info | Requires shipping; listed shipping weight approximately 11.0 lbs |
| Prop 65 | California warning indicated on listing |
FAQ
What steering boxes does the PSC PA700 fit?
The PSC PA700 is designed to fit most 32-spline Saginaw power steering gearboxes used in custom steering applications.
Is the PSC PA700 pre-drilled?
No. This is an undrilled flat pitman arm intended for custom machining so you can build the steering linkage exactly for your application.
Can this arm be machined for different hole styles?
Yes. PSC notes that it can be machined for a straight or tapered hole, and configured top-down or bottom-up depending on the steering design.
Does the PSC PA700 have master keyways?
No. It is a full-spline design without master keyways, allowing the installer to adjust center orientation as needed.
Is this a direct-fit OE replacement?
No. The PSC PA700 is a universal custom-use steering component intended for fabricated or modified steering systems, not a vehicle-specific stock replacement arm.
