PPE 328051010 FORD DEEP TRANSMISSION PAN 5R110 BRUSHED

The new PPE Heavy-Duty Deep Transmission Pan for the Ford 5R110 has greater oil capacity which results in lower operating temperatures and can help extend transmission life.

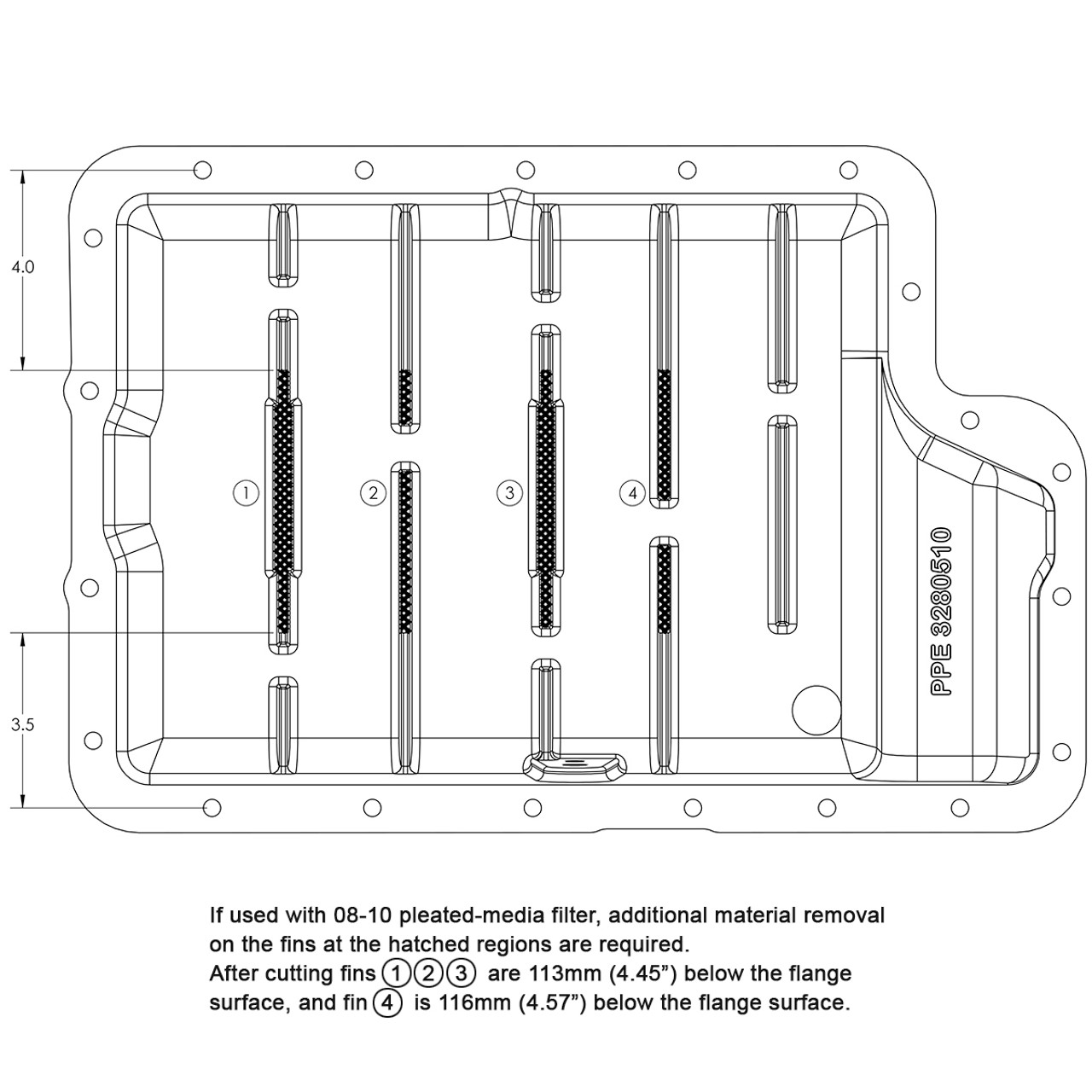

Cast from high-strength aluminum for optimal heat dissipation, this new PPE pan features internal baffles and external fins which transfer heat to keep your transmission running cool, keeping your operating temperatures in the right range.

Also included is a PPE Drain Plug machined from stainless steel, featuring a 17mm hex fitting for easy installation and removal. The PPE Drain Plug is fitted with a high-powered Neodymium magnet which extracts harmful ferrous metals out of your oil before they can do damage, and is easy to wipe clean during oil changes.
Features:

• Heavy-Duty Deep Aluminum Transmission Pan - Brushed (328051010)
• Brushed Finish
• 6 quarts additional capacity
• Robust side ribs provide additional strength
• Billet stainless steel, 17mm hex, Neodymium-equipped drain plug
• 1/8 inch and 1/4 inch NPT temperature access ports
• Allen-head mounting bolts are included
• Lifetime warranty
• Sold As A Kit

Applications:

• 2003-2007 Ford 5R110 Transmission

Note:

• Available in 3 finishes: Raw (328051000) - Brushed (328051010) - Black (328051020)
• Race Weight Drain Plug (128051004) compatible

The PPE Heavy-Duty Deep Transmission Pan for the Ford 5R110 is the ultimate upgrade for your vehicle's transmission performance. Designed with an expansive oil capacity, this innovative pan maintains lower operating temperatures, significantly extending the life of your transmission.

Crafted from high-strength aluminum, the PPE pan is not only durable but also enhances heat dissipation. Featuring advanced internal baffles and external fins, this deep transmission pan efficiently transfers heat, ensuring that your transmission operates within optimal temperature ranges, providing peace of mind during heavy-duty use.

• Heavy-Duty Deep Aluminum Transmission Pan - Brushed (328051010)
• Brushed Finish for a sleek look
• Increases oil capacity by 6 quarts
• Robust side ribs for additional strength
• Billet stainless steel drain plug with 17mm hex fitting
• Equipped with a high-powered Neodymium magnet for maximum filtration
• 1/8 inch and 1/4 inch NPT temperature access ports
• Includes Allen-head mounting bolts
• Lifetime warranty for peace of mind
• Sold As A Kit for easy installation

This product is tailored specifically for the 2003-2007 Ford 5R110 Transmission, and offers three distinct finishes including Raw, Brushed, and Black, allowing you to customize the look of your vehicle. Elevate your driving experience and protect your transmission with the superior performance of the PPE Deep Transmission Pan.
