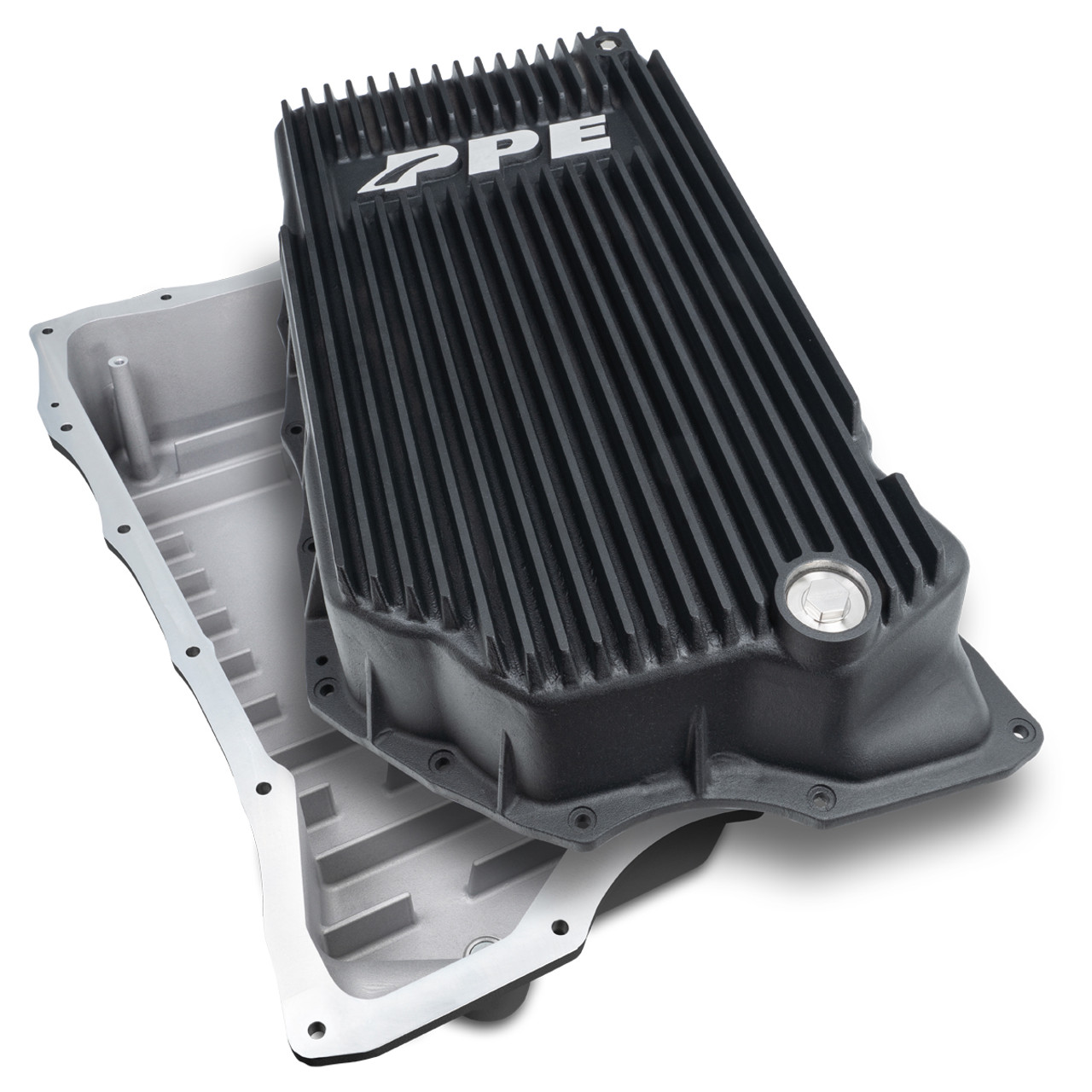

PPE 128051420 10L1000 HEAVY-DUTY CAST DEEP TRANSMISSION PAN BLACK FOR 20-23 GM 6.6L DURAMAX L5P

The Allison transmission (GM 6.6L Duramax 10L1000 Transmission) has a reputation for performance and longevity. Now that it is available as the 10L1000, the reputation continues.

Get the best protection and performance out of your 10L1000 by upgrading to the PPE Heavy-Duty Cast Aluminum Deep Transmission pan. The deep PPE Pan Increases fluid capacity by a full gallon which lowers transmission fluid temperature and increases thermal stamina. The engineered design includes cast aluminum fins and heats sinks to improve heat dissipation. The external gussets provide extra support to the machined flange to increase overall robustness.

PPE includes a high-power Neodymium magnet-equipped billet 304 stainless steel drain plug with Viton O-ring seal and a 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals for the fluid level check port. These powerful magnets pull ferrous metals out of the fluid before they can do damage to the internals.

OEM Part Number for Reference: GM 24286058

Features:

• High-grade A356.0-T6 heat-treated cast aluminum alloy
• Increases fluid capacity by 4 quarts which lowers transmission fluid temperature
• Thick, cast A356.0 T6 aluminum alloy
• .75’’ inch external fins engineered to utilize underbody air flow
• .75’’ and 1.2’’ internal heat sinks improve heat dissipation and reduce sloshing
• One-inch Neodymium magnet-equipped 304 stainless steel drain plug with Viton O-ring seal
• 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals the fluid level check port
• Tapped and plugged 1/8" NPT port for optional fluid temperature monitoring sensor
• External gussets provide extra support to the machined flange to increase overall robustness
• Compatible with OEM gasket

VEHICLE FITMENT:

The PPE 128051420 10L1000 Heavy-Duty Cast Deep Transmission Pan in Black is the ultimate upgrade FOR your FOR 20-23 GM 6.6L Duramax L5P with the renowned Allison 10L1000 transmission. Elevate your transmission's performance and protection with this meticulously designed transmission pan.

Constructed from high-quality cast aluminum, this deep transmission pan boasts a full one-gallon increase in fluid capacity, ensuring optimal transmission fluid temperature regulation and enhanced thermal endurance. The innovative design incorporates cast aluminum fins and heat sinks, effectively improving heat dissipation FOR superior performance.

Enhanced with external gussets that reinforce the machined flange, this transmission pan offers unmatched durability and strength. The inclusion of a high-power Neodymium magnet-equipped billet 304 stainless steel drain plug with Viton O-ring seal, along with a 9/16 inch ORB Neodymium Magnetic Plug featuring Viton O-ring seals FOR the fluid level check port, further showcases the top-notch engineering of PPE.

These powerful magnets are designed to attract ferrous metals from the fluid, preventing potential damage to your transmission's internal components. Compatible specifically with the FOR 20-23 GM 6.6L Duramax equipped with the 10L1000 transmission, this heavy-duty cast transmission pan in sleek black finish is a must-have FOR any serious enthusiast looking to optimize their vehicle's performance and longevity. Invest in the PPE Heavy-Duty Cast Deep Transmission Pan FOR unparalleled quality and protection.
