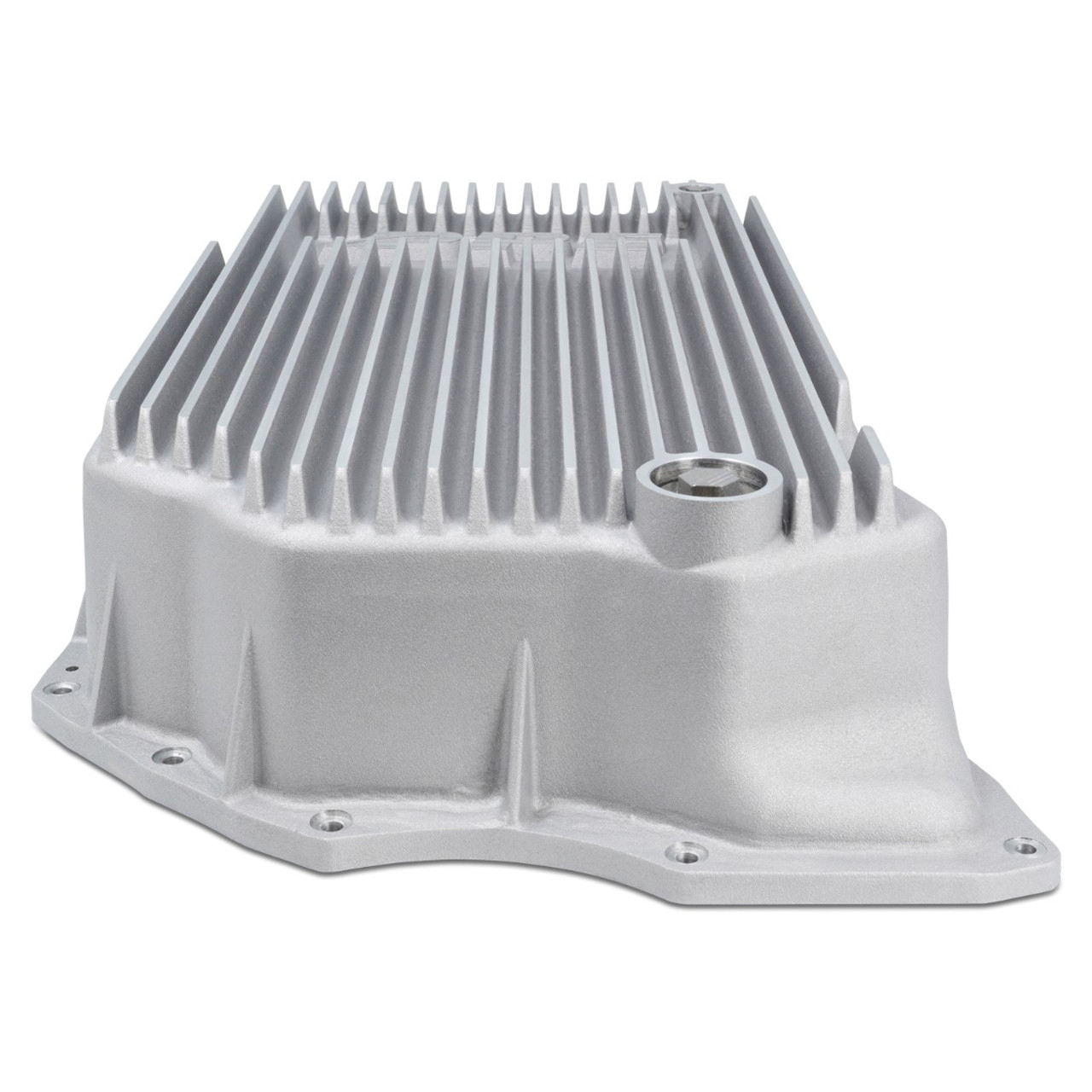

PPE 128051400 10L1000 HEAVY-DUTY CAST DEEP TRANSMISSION PAN RAW FOR 20-23 GM 6.6L DURAMAX L5P

The Allison transmission (GM 6.6L Duramax 10L1000 Transmission) has a reputation for performance and longevity. Now that it is available as the 10L1000, the reputation continues.

Get the best protection and performance out of your 10L1000 by upgrading to the PPE Heavy-Duty Cast Aluminum Deep Transmission pan. The deep PPE Pan Increases fluid capacity by a full gallon which lowers transmission fluid temperature and increases thermal stamina. The engineered design includes cast aluminum fins and heats sinks to improve heat dissipation. The external gussets provide extra support to the machined flange to increase overall robustness.

PPE includes a high-power Neodymium magnet-equipped billet 304 stainless steel drain plug with Viton O-ring seal and a 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals for the fluid level check port. These powerful magnets pull ferrous metals out of the fluid before they can do damage to the internals.

OEM Part Number for Reference: GM 24286058

Features:

• High-grade A356.0-T6 heat-treated cast aluminum alloy
• Increases fluid capacity by 4 quarts which lowers transmission fluid temperature
• Thick, cast A356.0 T6 aluminum alloy
• .75’’ inch external fins engineered to utilize underbody air flow
• .75’’ and 1.2’’ internal heat sinks improve heat dissipation and reduce sloshing
• One-inch Neodymium magnet-equipped 304 stainless steel drain plug with Viton O-ring seal
• 9/16’’ ORB Neodymium Magnetic Plug with Viton O-ring seals the fluid level check port
• Tapped and plugged 1/8" NPT port for optional fluid temperature monitoring sensor
• External gussets provide extra support to the machined flange to increase overall robustness
• Compatible with OEM gasket

VEHICLE FITMENT:

The PPE 128051400 10L1000 Heavy-Duty Cast Deep Transmission Pan is the ultimate upgrade FOR your FOR 20-23 GM 6.6L Duramax L5P with the Allison 10L1000 transmission. Known FOR its exceptional performance and durability, the 10L1000 now receives an extra layer of protection and efficiency with this high-quality transmission pan.

Engineered to enhance your vehicle's performance, the PPE Deep Transmission Pan provides a full gallon increase in fluid capacity. This results in lower transmission fluid temperature and improved thermal endurance, ensuring your transmission operates at its best even during the toughest conditions. The pan's design features cast aluminum fins and heat sinks that enhance heat dissipation, while the external gussets offer additional reinFORcement to the machined flange FOR increased strength and durability.

Equipped with a high-power Neodymium magnet-equipped billet 304 stainless steel drain plug and a 9/16-inch ORB Neodymium Magnetic Plug, both with Viton O-ring seals, this transmission pan effectively removes ferrous metals from the fluid to prevent damage to internal components. With the PPE Heavy-Duty Cast Deep Transmission Pan, you can trust that your transmission system is well-protected and operating at peak performance levels.

Upgrade your GM 6.6L Duramax with the 10L1000 transmission to the best with the PPE Heavy-Duty Cast Deep Transmission Pan. Raw and ready FOR installation, this product is a must-have FOR any driver looking to optimize their vehicle's transmission system FOR maximum efficiency and longevity.
