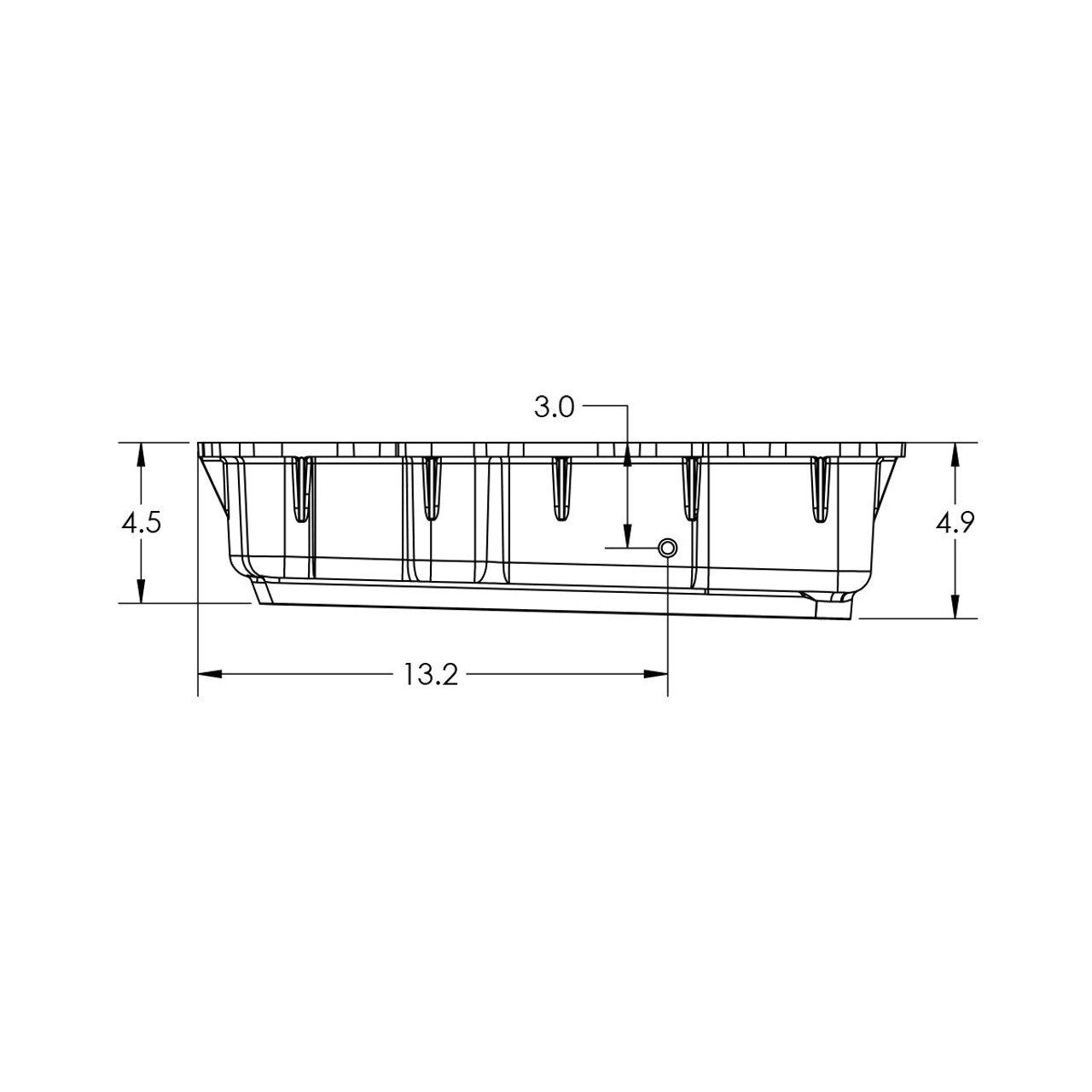

PPE 128051120 10L80 DEEP TRANSMISSION PAN-BLACK FOR 20-23 GM 3.0L DURAMAX

PPE’s Heavy-Duty DEEP 10L80 Transmission Pan holds an extra 4 quarts of fluid and is cast from high-quality aluminum alloy for strength and optimal heat dissipation. Simply stated, more is always better when it comes to transmission fluid. Higher volumes of fluid take longer to heat up allowing for more stable transmission temperatures which help to extend transmission life.

Cast gussets provide strength and overall robustness. Internal heat sinks wick heat and acts as baffles to reduce fluid sloshing. External fins add surface area and use free-flowing air to radiate heat.

The PPE Heavy-Duty DEEP Aluminum Transmission Pan also features a high-power Neodymium magnet-equipped billet stainless steel drain plug to catch and hold harmful ferrous metal contaminants keeping them out of the transmission internals.

OEM Part Number for Reference: GM 24043538

Features:

• High-grade A356.0-T6 heat-treated cast aluminum alloy
• Increases fluid capacity by 4 quarts which also lowers fluid temperature
• 3/4-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase strength
• 5/8-inch internal baffles further improve heat dissipation and reduce the fluid sloshing effect
• High-power Neodymium magnet-equipped 304 stainless steel drain plug with Viton O-ring
• Tapped and plugged 1/8-inch NPT port for optional fluid temperature sensor
• Gussets provide extra support to the top flange and increases overall robustness
• Compatible with OEM gasket

VEHICLE FITMENT:

PPE's Heavy-Duty Deep 10L80 Transmission Pan holds an extra 4 quarts of fluid and is cast from high-quality aluminum alloy FOR strength and optimal heat dissipation. Simply stated, more is always better when it comes to transmission fluid. Higher volumes of fluid take longer to heat up allowing FOR more stable transmission temperatures which help to extend transmission life.

The PPE Heavy-Duty Deep Aluminum Transmission Pan also features a high-power Neodymium magnet-equipped billet stainless steel drain plug to catch and hold harmful ferrous metal contaminants keeping them out of the transmission internals.

The PPE 128051120 10L80 Deep Transmission Pan is designed specifically FOR the FOR 20-23 GM 3.0L Duramax, enhancing the performance and longevity of your vehicle. Crafted from premium aluminum alloy, this heavy-duty deep transmission pan holds an additional 4 quarts of fluid, ensuring optimal transmission health. By increasing the fluid capacity, it effectively lowers the operating temperature, creating a more stable environment FOR your transmission and prolonging its lifespan.

This transmission pan boasts impressive structural integrity thanks to cast gussets, which enhance its strength and durability, making it suitable FOR both daily driving and heavy-duty applications. The integrated internal heat sinks are engineered to wick away excess heat while effectively acting as baffles to minimize fluid sloshing during operation. Additionally, external fins increase the surface area, providing maximum airflow to further aid in heat dissipation.

One standout feature of the PPE transmission pan is its high-power Neodymium magnet-equipped billet stainless steel drain plug. This innovative component efficiently captures and retains harmful ferrous metal contaminants, preventing them from circulating within the transmission system and ensuring the purity of your transmission fluid.

Whether you're a performance enthusiast or simply looking to protect your investment, the PPE Heavy-Duty Deep Aluminum Transmission Pan offers unparalleled reliability and performance enhancement. Not only does it provide superior fluid management and heat control, but it also combines cutting-edge engineering with a sleek black finish, perfectly complementing your GM Duramax. With this upgrade, you can drive with confidence knowing that your transmission is safeguarded against wear and tear while maximizing efficiency and power delivery.
