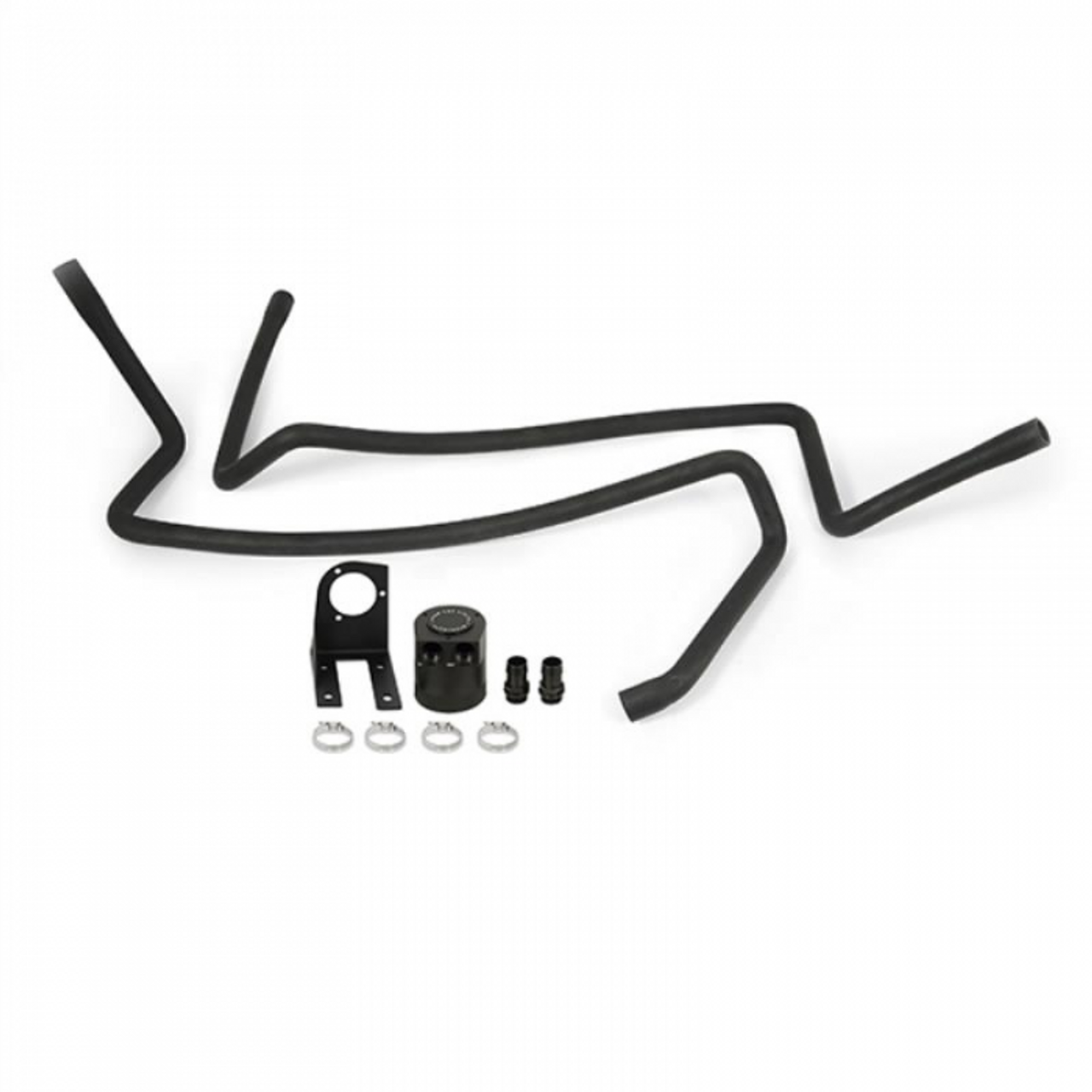

MISHIMOTO MMBCC-F2D-03BE BAFFLED OIL CATCH CAN KIT 2003-2007 FORD POWERSTROKE 6.0L

(No reviews yet) Write a Review
SKU:
MIMMMBCC-F2D-03BE
MPN:
MMBCC-F2D-03BE
Shipping:
Free Shipping
$348.95
724-785-4022

Description

High-output engines require high-flow crankcase ventilation. More air and fuel going into the cylinders means more blow-by working its way past the piston rings and traveling around your intake system. All that volume needs room to flow, and if you're using a catch can, it better flow well too. Luckily, Mishimoto has created a catch can that meets those needs.

Our high-flow catch can utilizes a high-capacity bottom capable of holding 5.3 fl. oz. The CNC-machined lid includes large, M27 x 2.0 inlets and outlets to let your crankcase breathe. Inside the can is a newly engineered, CNC-machined baffle with integrated filter that lets crankcase gases flow through while filtering out potentially harmful fuel, oil, and water vapors. Like our compact baffled oil catch can, our high-flow catch can and filter are fully serviceable for easy draining and cleaning. The included 3/8" NPT plug in the bottom of the can allows you to drain the can without removing the bottom or attach our available drain kit for even easier servicing.

To make this kit a direct fit for your 2003-2007 Ford 6.0L Powerstroke, Mishimoto includes a custom-engineered bracket that bolts to the driver's side frame rail, just behind the wheel well. This mounts the can in an easy to access location that's out of the way of engine components. The 3mm thick steel bracket is gusseted and powder-coated black for the highest strength and resistance to the elements.

Also included with this kit is a set of direct-fit nitrile hoses to carry blow-by away from your engine and into the catch can. Of course, all our catch can kits come with Mishimoto's Lifetime Warranty with Accident Protection, and this kit is no exception.




Key Features
  • Direct-fit for 2003-2007 Ford 6.0L Powerstroke
  • High-flow catch can allows your crankcase to breathe while filtering out harmful oil, fuel, and water vapors
  • Sturdy, 3mm thick steel bracket mounts the catch can in an easily accessible location for easy servicing
  • Includes durable, CNC-machined aluminum hose-barb fittings
  • 5.3 fl. oz. capacity for improved flow and extended service intervals
  • Powder-coated bracket for maximum durability in all conditions
  • Filter and can are fully serviceable
  • Patent number US D884,761
  • Mishimoto Lifetime Warranty

TECH SPECS

Applications 2003-2007 Ford F-250 6.0L Powerstroke
2003-2007 Ford F-350 6.0L Powerstroke

2003-2005 Ford Excursion 6.0L Powerstroke
Installation Notes 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM).
Note After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

Compatible Vehicles



Year
Make
Model

2003 Ford Excursion
2003 Ford F-250 Super Duty
2003 Ford F-350 Super Duty
2003 Ford F-450 Super Duty
2003 Ford F-550 Super Duty
2004 Ford Excursion
2004 Ford F-250 Super Duty
2004 Ford F-350 Super Duty
2004 Ford F-450 Super Duty
2004 Ford F-550 Super Duty

Purchase Includes



(1) Application-Specific Mounting Bracket
(1) Black, Anodized High-Flow Catch Can
(2) Direct-Fit Catch Can Hoses
(2) CNC-machined Aluminum Barbed Fittings
(4) High-Quality Worm Gear Clamps
(1) Baffle w/ Polyurethane Filter
(1) 3/8-in NPT Plug
(1) Large O-Ring
(2) Weather Strips
Mounting Hardware
Mishimoto Lifetime Warranty

Note:

After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.


Warranty

Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.

Designed specifically for the 2003-2007 Ford Powerstroke 6.0L, the MISHIMOTO MMBCC-F2D-03BE Baffled Oil Catch Can Kit is the ultimate solution for high-output engine performance. As engines push the limits with increased air and fuel intake, the necessity for effective crankcase ventilation becomes paramount. This catch can not only ensures optimal airflow but is engineered to capture harmful blow-by gases before they can circulate through your intake system, safeguarding the engine's longevity and efficiency.

The high-flow catch can boasts an impressive 5.3 fl. oz. capacity, featuring a CNC-machined lid with large M27 x 2.0 inlets and outlets, facilitating unrestricted breathing for your crankcase. Inside, a meticulously designed baffle and integrated filter work in conjunction to trap fuel, oil, and water vapors, allowing only clean air to flow through. Routine maintenance is straightforward; the fully serviceable design includes a 3/8" NPT plug for effortless draining, while optional drain kits can be added for enhanced convenience.

Custom-engineered with a robust, powder-coated 3mm thick steel bracket, this kit securely mounts the catch can to the driver's side frame rail, ensuring easy access and a clean setup. Included in the kit are direct-fit nitrile hoses and CNC-machined aluminum fittings that streamline the connection process.

MISHIMOTO stands behind its product with a Lifetime Warranty that includes Accident Protection, assuring you of its quality and reliability. This comprehensive kit is an essential upgrade for any Ford enthusiast looking to optimize engine performance while maintaining meticulous care for their vehicle. Say goodbye to harmful blow-by and enjoy the peace of mind that comes with a powerful, efficient engine with the MISHIMOTO Baffled Oil Catch Can Kit.
