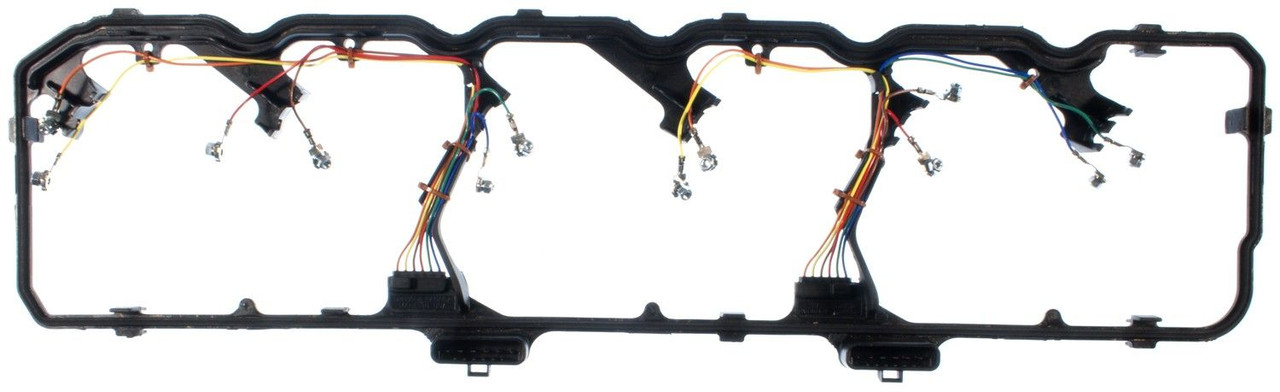

MAHLE VS50543 VALVE COVER GASKET FOR 06-18 CUMMINS 5.9/6.7

Product Description

MAHLE VS50543 valve cover gasket with integrated injector wiring harness restores a leak-free seal and reliable signal continuity on 2006–2018 Cummins 5.9L/6.7L engines. Built on a rigid carrier with molded rubber and OE-style connectors, it’s a direct-fit solution that eliminates intermittent injector issues caused by heat-soaked, brittle harnesses.

MAHLE VS50543, Cummins 5.9 6.7 valve cover gasket, integrated injector harness, Ram 2500 3500 4500 5500, OE replacement gasket, Mahle Clevite diesel sealing, VS 50543, UPC 027067843685, GTIN 027067843685

Fitment

• 2006–2007 Dodge Ram 2500/3500 5.9L Cummins
• 2007.5–2018 Dodge/Ram 2500/3500 6.7L Cummins
• 2008–2018 Ram 4500/5500 6.7L Cummins
• Direct replacement; no sealant typically required. Torque per Cummins spec.

Cross-Reference / OE Numbers

• Cummins: 3975641, 4992982, 5264950
• Mopar/Chrysler: 5179091AA, 5179091AB

Related MAHLE Items (Internal Links)

• MAHLE VS50419 Upper/Lower Rocker Box Gasket – 06–18 Cummins 5.9/6.7
• MAHLE VS50854 Valve Cover Gasket – 07.5–18 Cummins 6.7
• MAHLE MS19225 Exhaust Manifold Gasket Set – 98.5–18 Cummins 5.9/6.7
• MAHLE JV5076 Timing Cover Gasket Set – 03–18 Cummins 5.9/6.7
• MAHLE GS33485 Oil Cooler Gasket Set – 03–24 Cummins 5.9/6.7

Why MAHLE

• OE-grade molded rubber on steel carrier for long service life
• Pre-installed injector harness for plug-and-play reliability
• Engineered sealing bead geometry resists compression set and heat

Install Tips

• Disconnect both batteries before unplugging the injector harness
• Clean, oil-free mating surfaces; inspect cover flatness
• Route and clip harness to avoid pinch points; torque in sequence

FAQ

Does VS50543 include the injector wiring harness?

Yes. The harness is integrated into the gasket assembly for a direct swap.

Will this fit both 5.9L and 6.7L Cummins?

Yes—2006–2007 5.9L and 2007.5–2018 6.7L applications. See Fitment above.

Do I need RTV or sealant?

No additional sealant is typically required; install dry and torque to spec.

What are the dimensions and shipping details?

Approx. package size 12.03" W × 1.75" H × 33.88" L; Free Shipping from CPP Diesel.

Specifications for Mahle VS50543
