Product Description
MAHLE VS50419 lower rocker box / valve cover gasket restores a leak-free seal between the rocker housing and cylinder head on 2006–2007 5.9L and 2007.5–2018 6.7L Cummins. Built to OE specs by MAHLE/Clevite, this molded rubber gasket maintains clamping force and oil control under heat, vibration, and towing loads—ideal for daily drivers, tow rigs, and fresh engine builds.
Fitment
- 2006–2007 Ram 2500/3500, 5.9L Cummins (24-valve): lower rocker box (valve cover base) to cylinder head.
- 2007.5–2018 Ram 2500/3500/4500/5500, 6.7L Cummins: lower rocker box to cylinder head.
- Note: This is the lower gasket. The upper perimeter/harness gasket is sold separately (see related MAHLE items below).
Cross-Reference / Interchange (MAHLE only for internal links)

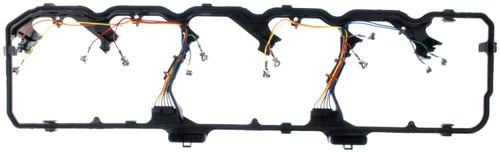

- MAHLE VS50543 Valve Cover Gasket w/ Integrated Harness – 2006–2018 Cummins (upper perimeter/harness gasket)
- MAHLE VS50854 Valve Cover Gasket – 2007.5–2018 6.7L Cummins
- MAHLE MS19225 Exhaust Manifold Gasket Set – 1998.5–2018 5.9L/6.7L
- MAHLE JV5076 Timing/Front Cover Gasket Set – 2003–2018 5.9L/6.7L
Why MAHLE / Clevite
- OE-grade elastomer for long service life and oil-leak prevention
- Consistent thickness and profile for proper clamp load
- Direct-fit replacement—no trimming or sealant globs required
Install Notes
- Clean mating surfaces, inspect rocker box flatness, and torque fasteners in sequence to Cummins spec.
- Replace brittle or damaged upper harness/perimeter gasket during service.
FAQ
Is VS50419 the lower or upper valve cover gasket?
VS50419 is the lower rocker box gasket (valve cover base to cylinder head). The upper perimeter/harness seal is MAHLE VS50543.
Will it fit my 2006–2018 Cummins?
Yes—2006–2007 5.9L and 2007.5–2018 6.7L Ram 2500/3500/4500/5500 as listed in Fitment.
What material and thickness is it?
Molded rubber, approx. 0.25 in (6.3 mm) thickness.
Specifications for Mahle VS50419
| Attribute | Value |
|---|---|
| Brand | MAHLE / Clevite |
| Part Number | VS50419 |
| UPC (GTIN-12) | 027067712202 |
| Shipping Info | Ships from CPP Diesel; shipping calculated at checkout. Package dims (approx.): 24.00" L × 8.75" W × 0.38" H. |
| Country of Origin | Not specified |
| Prop 65 | WARNING: Cancer & Reproductive Harm — www.P65Warnings.ca.gov |
