MAHLE

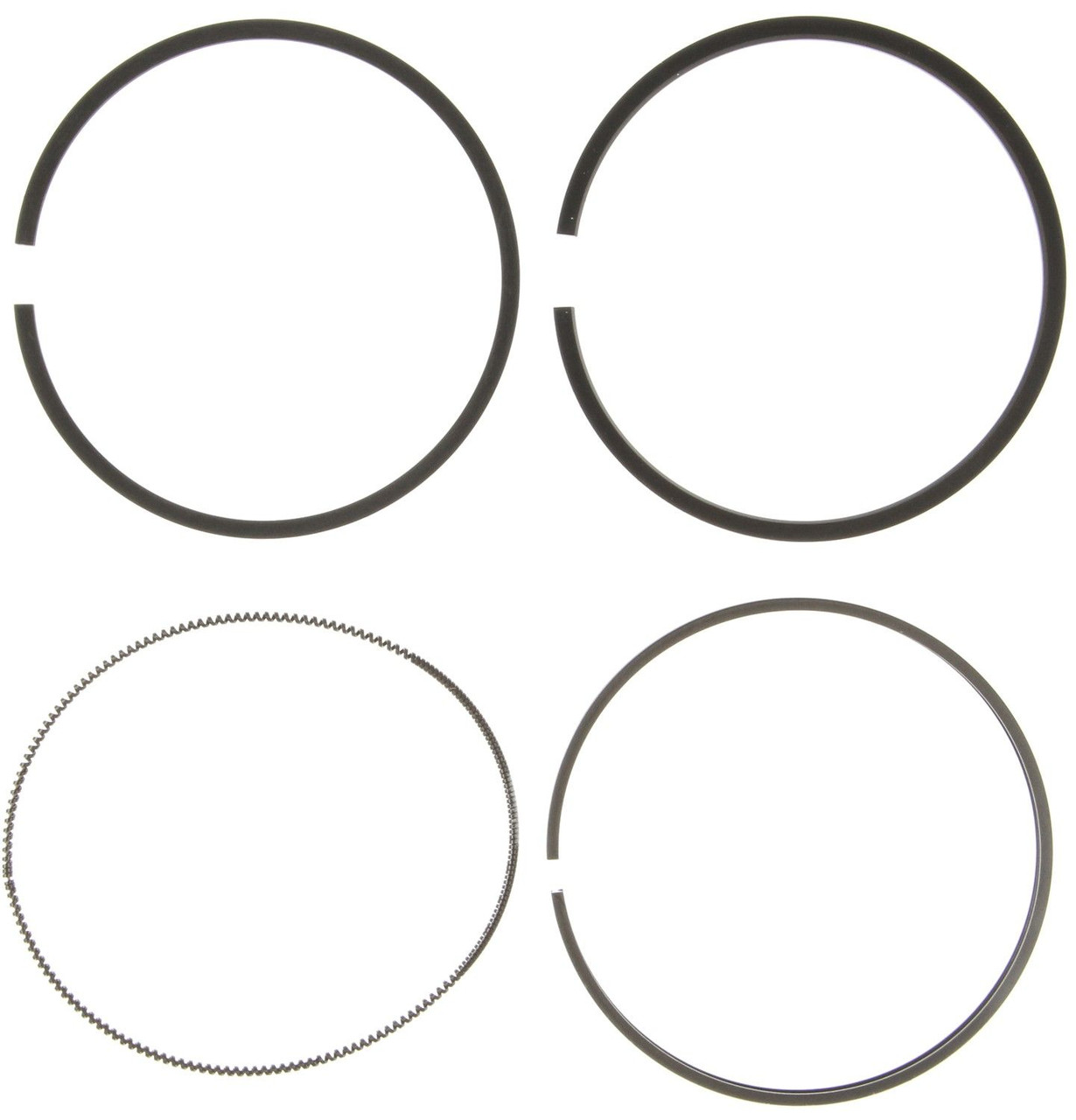

MAHLE S41940.030 PISTON RING SET (.030) FOR 2003-2007 FORD SUPERDUTY WITH 6.0L POWERSTROKE ENGINE

(No reviews yet) Write a Review
SKU:
MCIS41940030
MPN:
S41940030
Shipping:
Calculated at Checkout
$39.14
724-785-4022

Description

The MAHLE S41940.030 Piston Ring Set (.030) is a premium-quality engine component designed specifically for the 2003-2007 Ford 6.0L Powerstroke engines. It is an OE (Original Equipment) quality replacement for worn or damaged piston rings, helping to restore engine performance and efficiency. This set is designed to reduce friction, minimize oil consumption, and enhance engine longevity.

Key Features and Benefits:
  • OE Quality:
    Meets or exceeds OEM specifications, ensuring a reliable and durable replacement.

  • Improved Performance:
    Helps restore engine performance, reducing blow-by and improving compression.

  • Reduced Oil Consumption:
    Minimizes oil consumption by providing a better seal between the piston and cylinder walls.

  • Enhanced Engine Longevity:
    Helps prevent premature wear and tear on engine components.

  • Specific Application:
    Designed specifically for the 2003-2007 Ford 6.0L Powerstroke engines, ensuring proper fit and function.

  • Single Cylinder Set:
    Each set contains rings for one cylinder. You will need to purchase 8 sets for a complete engine rebuild, according to CPP Diesel.

Technical Specifications:
  • Bore Size: .030 Overbore.
  • Rings Included: Compression rings (top and second), and oil control rings.
  • Top Ring Material: Plasma-moly coated steel.
  • Second Ring Material: Ductile iron with chrome face.
  • Oil Ring Material: Iron.
MakeModelYearsEngine
Ford E-350 Club Wagon 2004–2005 6.0L Power Stroke
Ford E-350 Super Duty 2004–2010 6.0L Power Stroke
Ford E-450 Super Duty 2004–2007 6.0L Power Stroke
Ford Excursion 2003–2005 6.0L Power Stroke
Ford F-250 Super Duty 2003–2007 6.0L Power Stroke
Ford F-350 Super Duty 2003–2007 6.0L Power Stroke
Ford F-450 Super Duty 2003–2007 6.0L Power Stroke
Ford F-550 Super Duty 2003–2007 6.0L Power Stroke



SDR Required Flag No
Warranty Time UOM Months
Warranty Time 12
Country of Origin (Primary) Brazil
Taxable Yes
Harmonized Tariff Code (Schedule B) 8409914000
Harmonized Tariff Code (HTS) 8409914000
Life Cycle Status Code Available to Order



Second Ring Material Cast Iron
Item Grade Premium
Oil Ring Assembly Groove Type 2 pc.
Second Ring Thickness (Axial Height) 0.0779 in
Piston Ring Face Coating Plasma-Moly
Top Ring Material Carbon Steel
Oil Ring Assembly Thickness (Axial Height) 0.1353 in
Piston Ring Oversize 0.030 in
Top Ring Thickness (Axial Height) 0.0901 in
Oil Ring Assembly Material Cast Iron
Bore Diameter (in) 3.7697



Type of package Smallest Pack (Consumer Level)
Quantity per packing unit 4
package level GTIN 00027067820280
Height (Inch) 2
Width (Inch) 4.25
Length (Inch) 4.25
weight (Pounds Gross) 0.928



The MAHLE S41940.030 Piston Ring Set (.030) is meticulously crafted for the 2003-2007 Ford Super Duty trucks featuring the robust 6.0L Powerstroke engine. This piston ring set represents an outstanding OE (Original Equipment) quality option, engineered to replace worn or failing piston rings and to revitalize overall engine performance.

Designed to significantly reduce friction, the MAHLE piston rings create a solid seal between the piston and cylinder walls, which leads to decreased oil consumption and improved efficiency. By minimizing blow-by and enhancing compression, this set aids in reviving the engine's power output. Furthermore, the construction of these rings includes a plasma-moly coated top ring, ductile iron with a chrome face for the second ring, and durable iron for the oil control rings. This thoughtful selection of materials promotes enhanced engine longevity by lessening wear and tear on crucial components.

The MAHLE S41940.030 Piston Ring Set is specifically tailored for the Ford E-Series, Excursion, and F-Series, ensuring a precise fit and functionality that meets or exceeds OEM standards. Each set caters to one cylinder, so for comprehensive engine rebuilds, eight sets will be necessary, as mentioned by CPP Diesel.

With a bore size of .030 overbore, this piston ring set is engineered to withstand the rigors of heavy-duty applications, making it a must-have for maintaining optimal vehicle performance. Its compact packaging—dimensions of 2 inches in height and 4.25 inches in width—allows for easy storage and handling.

Elevate your engine’s performance and durability with the trusted MAHLE S41940.030 Piston Ring Set, engineered for excellence in every mile.
