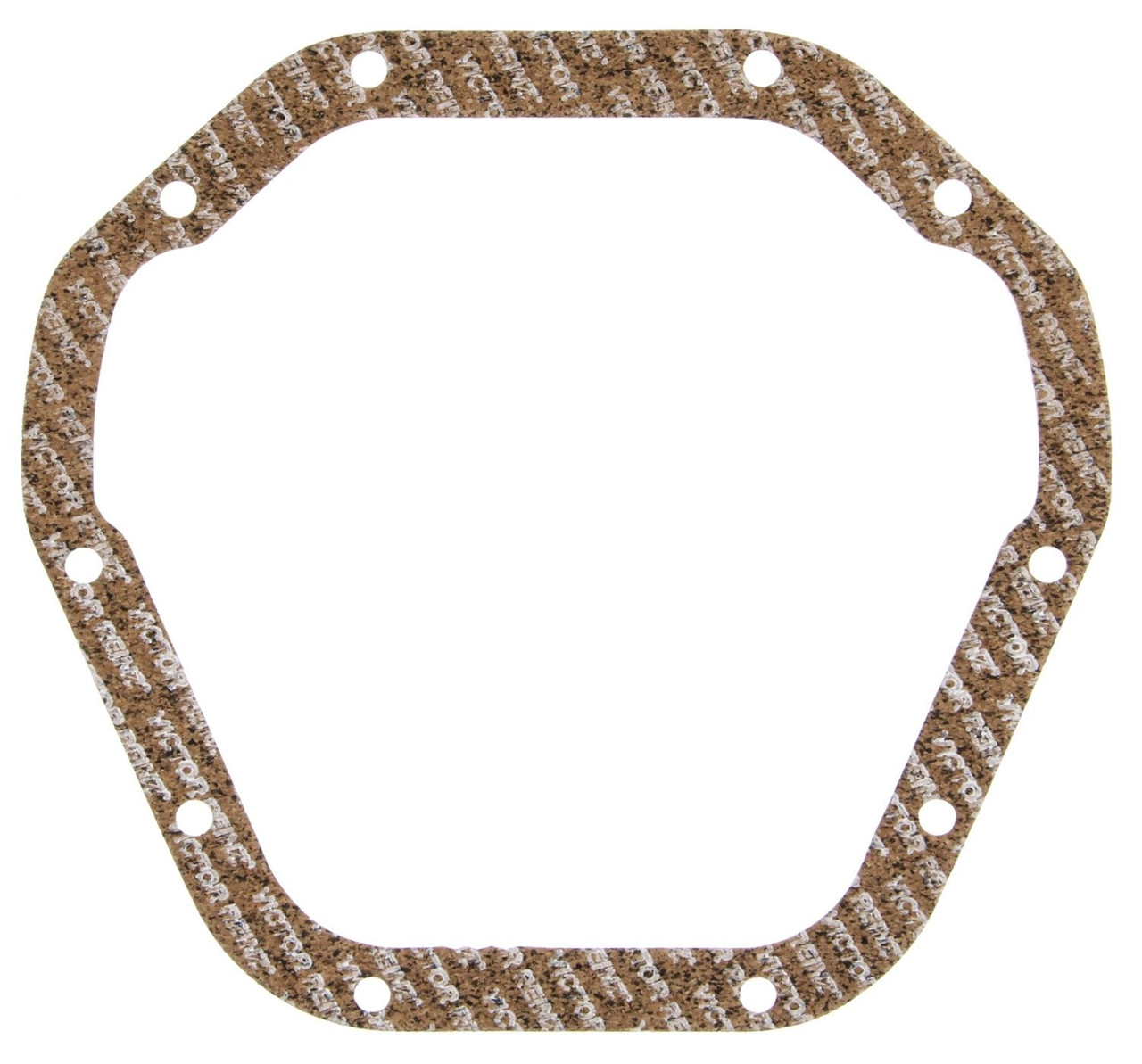

MAHLE P18562TC DIFFERENTIAL COVER GASKET FOR USE ON DANA 60 & 70 DIFFERENTIAL

Product Description

Seal up your Dana axle the right way with the MAHLE P18562TC differential cover gasket for Dana 60 and Dana 70 housings. The Tuff-Cork outer layer bonded to a rigid metal carrier resists crush and heat cycling, delivering reliable gear-oil retention on heavy-duty trucks, work rigs, and off-road builds.

Mahle P18562TC differential cover gasket, Dana 60 gasket 10-bolt, Dana 70 gasket 10-bolt, Tuff-Cork metal carrier gasket, heavy duty axle gasket, CPP Diesel Mahle gasket, Dana 60/70 diff cover seal, leak fix gasket Dana 60, leak fix gasket Dana 70

Fitment

• Direct-fit for Dana 60 differential covers (front or rear)
• Direct-fit for Dana 70 differential covers (front or rear)
• 10-bolt cover pattern typical of Dana 60/70 housings

Cross-Reference / Alternatives (Mahle on CPP Diesel only)

• MAHLE P18562 (Paper/Fiber style)

Notes

Clean both flanges, check cover flatness, and torque bolts in a criss-cross pattern to spec. Re-check after initial heat cycle.

FAQ

Will this fit both Dana 60 and Dana 70?

Yes—P18562TC is designed specifically for Dana 60 and Dana 70 axle housings (front or rear).

What’s the difference between P18562 and P18562TC?

P18562 is a paper/fiber gasket; P18562TC adds a rigid metal carrier with Tuff-Cork sealing for better durability and clamp control.

Do I need sealant with this gasket?

Generally not on clean, flat flanges; follow your service manual. A light dressing may be used if specified.
