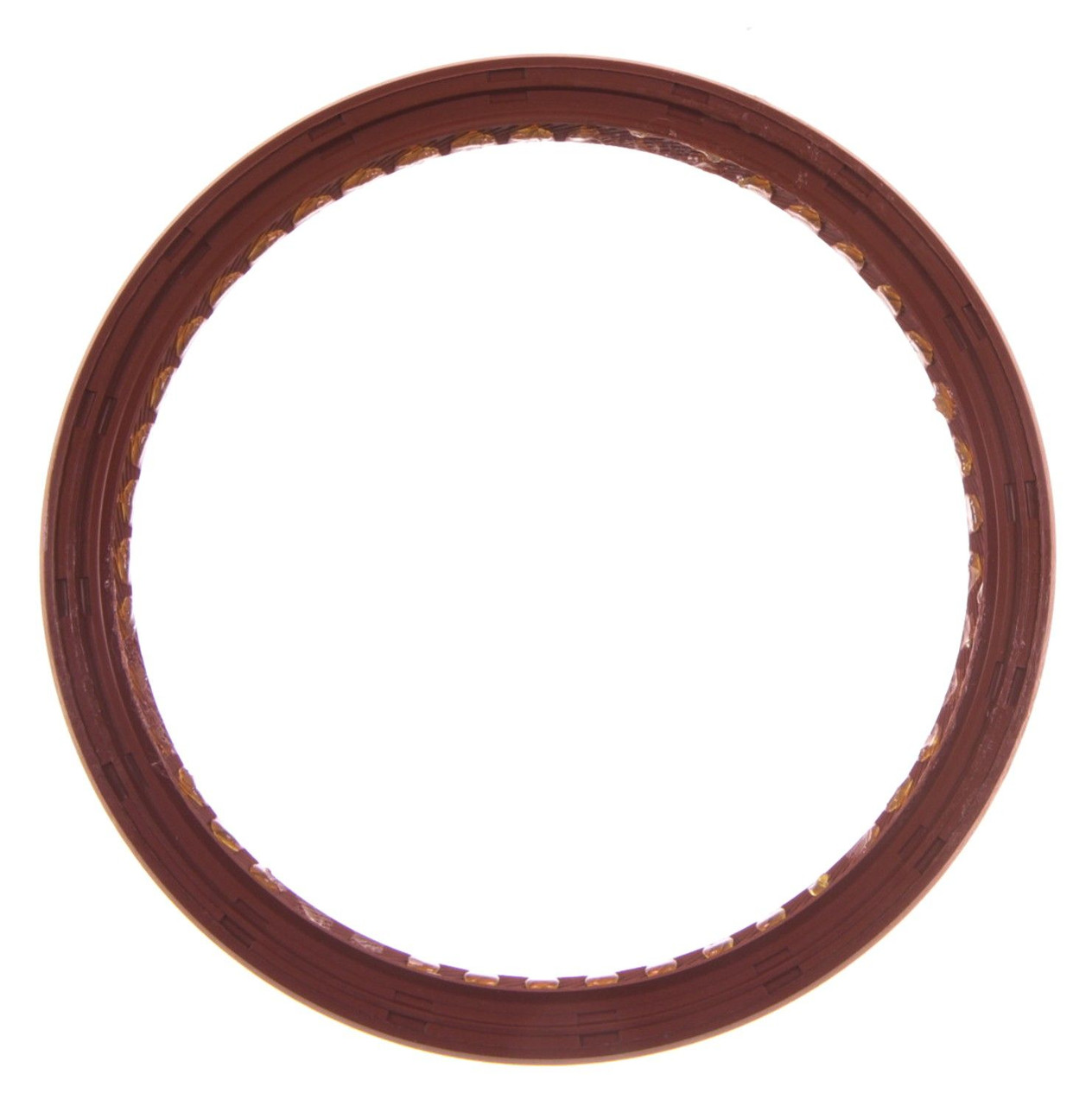

MAHLE JV1617 REAR MAIN SEAL FOR 1992–2000 GM 6.5L DIESEL

Product Description

Stop messy rear main leaks on your 6.5L with the MAHLE JV1617 rear main seal. Engineered as an OE-quality, one-piece rear crankshaft oil seal for 1992–2000 GM 6.5L diesel engines, this seal restores factory sealing performance, maintains proper oil control, and helps protect your clutch or torque converter from contamination. MAHLE builds JV1617 to stock specifications so it installs cleanly in the OEM retainer and holds up under heavy towing, work, and daily driving.

Mahle JV1617 rear main seal, 6.5L GM diesel rear crank seal, 1992-2000 Chevy GMC 6.5 rear main, Detroit Diesel 6.5L rear main seal, GM 23503969 replacement, Mahle rear crankshaft oil seal, CPP Diesel Mahle JV1617, 6.5 IDI turbo diesel seal, one-piece rear main seal kit

Fitment

• 1992–2000 Chevrolet 6.5L Diesel – C/K 2500 & 3500 pickups
• 1992–2000 GMC 6.5L Diesel – C/K 2500 & 3500 pickups
• 1994–2000 Chevrolet/GMC 6.5L Diesel – Suburban, Tahoe/Yukon (where equipped)
• 1996–2000 Chevrolet Express / GMC Savana – 6.5L Diesel
• Other light-duty GM 6.5L diesel truck/van applications in the 1992–2000 range

Common OE / Aftermarket Cross-References (Numbers Only, No External Links)

• GM OE: 23503969 – Rear Crankshaft Oil Seal
• Victor Reinz: JV1617
• Corteco: 17271
• Fel-Pro: BS40604

Related MAHLE Products on CPP Diesel (Internal Links Only)

• MAHLE HS4021A HEAD SET FOR 1992–2000 GM 6.5L DIESEL
• MAHLE HS4021 HEAD SET FOR 1994–1998 GM 6.5L DIESEL (STANDARD OUTPUT)
• MAHLE CS3678A LOWER ENGINE GASKET SET FOR 94–02 GM 6.5L DIESEL
• MAHLE 4021T CYLINDER HEAD GASKET FOR 94–02 GM 6.5L DIESEL
• MAHLE JV1134 TIMING COVER GASKET SET 82–02 GM DIESEL
• MAHLE 46467 ENGINE TIMING COVER SEAL 82–02 GM DIESEL

Notes

Inspect the crankshaft flange for grooves or wear before installation. Clean the bore thoroughly, lightly oil the seal lip, and use the proper driver or installation tool to seat the seal squarely. Always verify fitment by VIN/RPO when working on 6.5L platforms.

FAQ

WILL THIS FIT ALL 1992–2000 GM 6.5L DIESEL TRUCKS?

Yes. MAHLE JV1617 is cataloged for 1992–2000 GM 6.5L diesel truck and van applications. Always confirm by VIN and build details, especially on swapped or rebuilt engines.

IS JV1617 A ONE-PIECE REAR MAIN SEAL?

Yes. This is a one-piece rear crankshaft seal designed to match OE dimensions and sealing materials for the GM 6.5L diesel platform.

DOES THIS SEAL INCLUDE A RETAINER OR GASKETS?

No. JV1617 is the seal itself. If you are doing a full lower-end reseal, pair it with a MAHLE lower engine gasket set such as CS3678A and timing cover components like JV1134 and 46467.

WHAT ARE THE MOST COMMON CROSS-REFERENCE NUMBERS?

Typical equivalents are GM 23503969, Victor Reinz JV1617, Corteco 17271, and Fel-Pro BS40604. Use these only for reference when comparing catalogs.

ANY INSTALLATION TIPS TO PREVENT FUTURE LEAKS?

Check crankshaft endplay, inspect the crank flange, and verify that the crankcase ventilation system is functioning properly. Excess crankcase pressure can shorten the life of any rear main seal.
