MAHLE HS54886A HEAD SET FOR 2015-2019 FORD SUPERDUTY WITH 6.7L POWERSTROKE ENGINE

(No reviews yet) Write a Review
SKU:
MHLHS54886A
MPN:
HS54886A
Shipping:
Calculated at Checkout
$1,074.11

Description

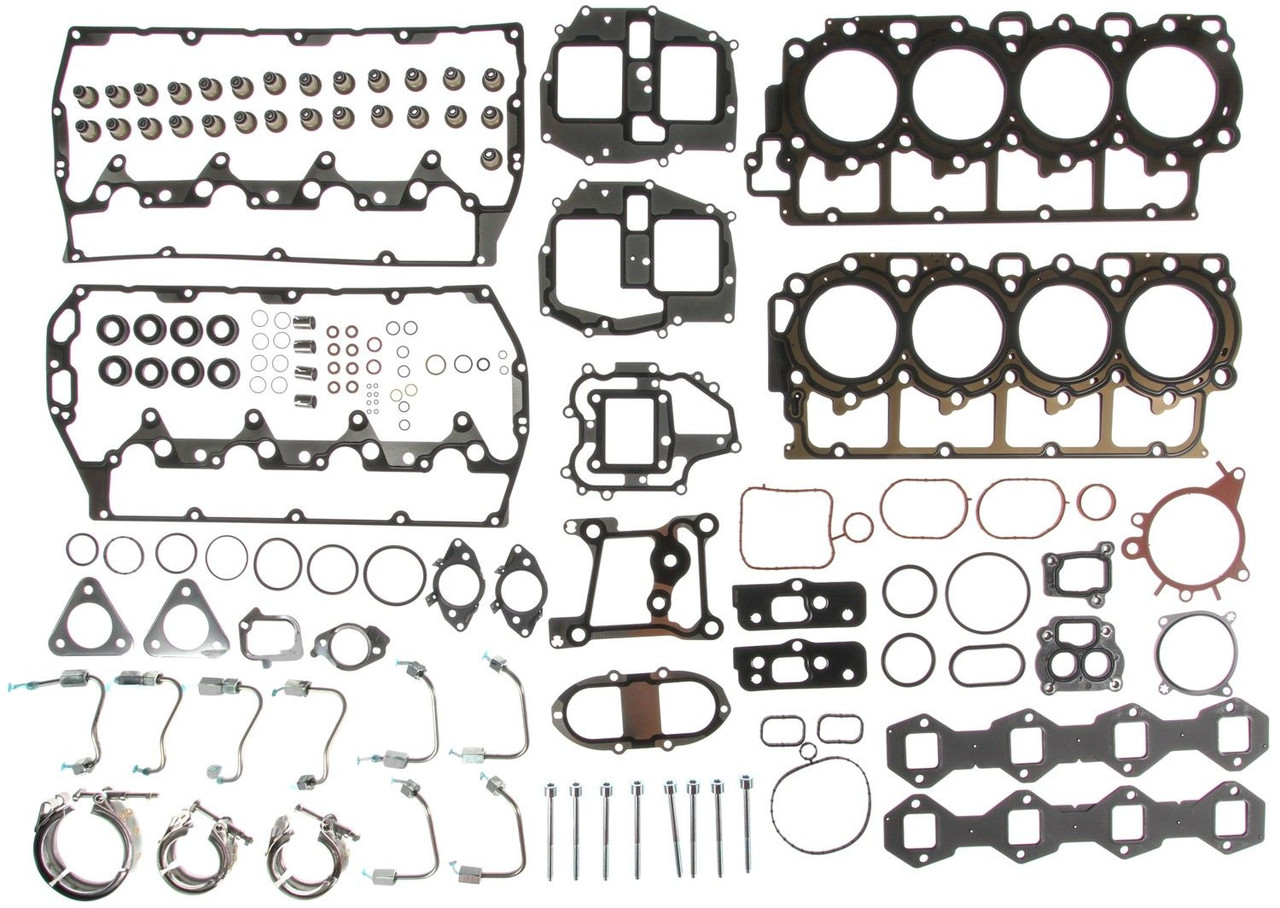

A complete cylinder head gasket kit for the 2015–2019 Ford 6.7 L Powerstroke engine, tailored to OE-level standards. It includes head gaskets and a wide variety of precision-engineered sealing components

Vehicle Fitment

  • Intended Models: Ford F‑250, F‑350, F‑450, F‑550 (2015–2019) with the 6.7 L Powerstroke V8.

  • Note: May only fit vehicles with VIN code “T” (check with supplier)

Included Components

As listed by suppliers like US Diesel Parts, the kit includes:

  • Multi-layer steel head gaskets

  • Dowel pins for head alignment

  • EGR cooler gaskets (core, inlet/outlet tubes, bypass valves)

  • CAC tube seals, breather gaskets, throttle body, turbocharger, intake & exhaust gaskets

  • Fuel injector O‑rings, gasket seals, turbo feed/drain O‑rings, valve cover gaskets, water pump and thermostat housing seals
    …and more—covering nearly all upper-engine sealing needs except head bolts and fuel rail supply tubes

 Specifications

  • Head gasket thickness: ~0.043″; material: multi-layer steel .

  • Kit size: ~144 pieces, including gaskets and O‑rings

  • Construction: OEM-quality materials, precision-fit components

  • Includes MAHLE's standard 1-year warranty, Prop 65-warning compliant



SDR Required Flag No
Warranty Time UOM Months
Warranty Time 12
Country of Origin (Primary) Taiwan
Taxable Yes
Harmonized Tariff Code (Schedule B) 8484100000
Life Cycle Status Code Available to Order





Additional Package Contents Contains CAC Tube Seals, Crankcase Breather Gaskets, Cylinder Head Dowel Pins, EGR Bypass Valve Gasket, EGR Cooler Core Gasket, EGR Cooler End Tank Gasket, EGR Cooler to EGR Housing O-Rings, EGR Cooler to Valve Cover Seals, EGR Inlet Tube Gaskets, EGR Outlet Tube Gaskets, EGR Valve Mounting Gasket, Exhaust Manifold Gaskets, Fuel Injector Supply Tubes, Fuel Injector to Valve Cover Seals, Fuel Injector Return Port O-Rings, Fuel Injector Body O-Rings, Fuel Injector Crush Washers, Fuel Injector Hold Down Bolts, Head Gaskets, Heater Hose Inlet Tube O-Ring, High Pressure Fuel Pump Mounting Seal, Intake Manifold Gaskets, Low Pressure Fuel Line to High Pressure Pump O-Rings, Oil Fill Tube O-Ring, Radiator Hose Seals, Rocker Arm Manifold O-Rings, Thermostat Housing Seal, Throttle Body Gasket, Turbocharger Coolant Feed Line O-Rings, Turbocharger Drain Tube O-Rings, Turbocharger Oil Feed Line O-Rings, Turbocharger Mounting Gasket, Turbocharger Pedestal Gasket, Turbocharger Up-Pipe Gaskets, Turbocharger V-Band Clamps, Vacuum Pump Mounting Gasket, Valve Cover Gaskets, Valve Stem Seals, Water Crossover Gaskets
Cylinder Head Gasket Material Multi-Layered Steel
Throttle Body Gasket Material Beaded Steel
Valve Stem Seal Material Fluoroelastomer
Intake Manifold Gasket Material Molded Rubber
Valve Cover Gasket Included Yes
Exhaust Manifold Gasket Material Multi-Layered Steel
Item Grade OEM Standard
Exhaust Manifold Gasket Included Yes
Cylinder Head Bolts Included No
Valve Cover Gasket Material Beaded Steel
Intake Manifold Gasket Included Yes
Cylinder Head Gasket Thickness .043 inches
Package Quantity 144
Cylinder Head Dowel Included Yes
Cylinder Head Gasket Included Yes
Throttle Body Gasket Included Yes
Valve Stem Seals Included Yes
EGR Valve Gasket Included Yes
Model Model year
F-250 Super Duty 2015 - 2019
F-350 Super Duty 2015 - 2019
F-450 Super Duty 2015 - 2019
F-550 Super Duty 2015 - 2019
F-650 2016 - 2019
F-750 2016 - 2019



Type of package Smallest Pack (Consumer Level)
Quantity per packing unit 150
package level GTIN 00639789120199
Height (Inch) 2
Width (Inch) 12.375
Length (Inch) 23
weight (Pounds Gross) 7.763





The MAHLE HS54886A Head Set offers a comprehensive solution for maintaining the peak performance of your 2015-2019 Ford SuperDuty equipped with the formidable 6.7L Powerstroke engine. Designed with precision, this complete cylinder head gasket kit adheres to original equipment (OE) standards, ensuring an exact fit and lasting durability for your vehicle.

This head set is meticulously crafted to include a diverse range of essential components, directly addressing nearly all upper-engine sealing requirements. Key components such as multi-layer steel head gaskets, dowel pins for head alignment, EGR cooler gaskets, and intake & exhaust gaskets are all part of the robust 144-piece kit. Alongside these, the set also features fuel injector O-rings and a variety of gaskets needed for seamless EGR functionality, turbocharger connection, and more.

Specifically tailored for Ford F-250, F-350, F-450, and F-550 models, this head set accommodates vehicles with VIN code “T,” so compatibility checks are recommended prior to purchase. The head gaskets boast a thickness of approximately 0.043 inches and are constructed from durable materials designed for high-performance applications.

Every detail has been considered in the design of the MAHLE HS54886A, delivering OEM-quality standards that make installations straightforward and reliable. Each package comes with a standard 1-year warranty and is compliant with Prop 65 warning regulations, reflecting MAHLE's commitment to quality and safety.

Elevate your engine's reliability and performance with the MAHLE HS54886A Head Set, the ultimate solution for anyone looking to maintain their Ford SuperDuty at factory standards. Investing in this head set protects your engine and enhances its operational longevity, ensuring that you can tackle any challenge with confidence.
