Product Description
MAHLE HS54579 cylinder head gasket set delivers OE-level sealing for late-build 2006.5–2007 Ford 6.0L Power Stroke engines with 20 mm dowel pins. This complete top-end set includes Black Diamond™ MLS head gaskets plus the intake/exhaust and upper-engine seals needed to finish the job with confidence—ideal for towing, work-truck reliability, and long-term durability.
Fitment
- 2006.5–2007 Ford 6.0L Power Stroke (Super Duty): engines using 20 mm cylinder head alignment dowels.
- Not for early 6.0L with 18 mm dowels—use MAHLE HS54450 (18 mm) instead.
- Pro tip: Always verify dowel size before ordering; trucks near the changeover may differ.

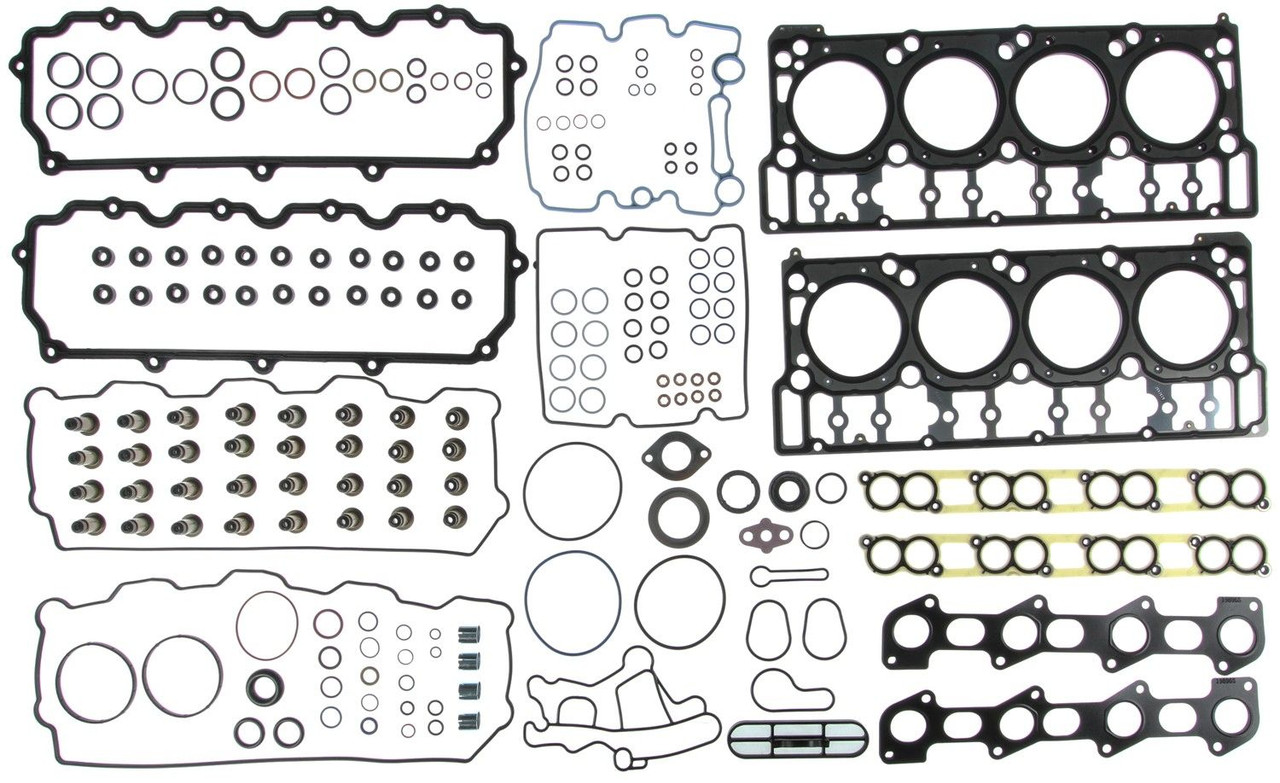

What’s Included
- (2) Black Diamond™ MLS cylinder head gaskets (20 mm spec)
- Upper-engine gaskets and seals for a complete head-service
- Not included: head bolts, inner-row bolts, or dowel pins
Cross-Reference & Related MAHLE Items (Internal Links)
- MAHLE HS54450 — 18 mm head set for 2003–2006 6.0L (alternate application)
- MAHLE 54579A — 20 mm individual Black Diamond™ head gasket
- MAHLE GS33494 — head bolt set (one side; order two for both heads)
- MAHLE GS33699 — oil cooler gasket set (smart add-on during head service)
- MAHLE B32554 — oil cooler screen (HPOP inlet)
- MAHLE B32726 — EGR cooler tube gasket
Why MAHLE Black Diamond™ MLS
- Multi-layer steel with Black Diamond™ coating for robust sealing under boost
- OE-style embossing and stopper features support clamp load distribution
- Trusted MAHLE Original® coverage for long service life
Installation Notes
- Confirm dowel pin size (20 mm) before teardown; match set to engine build
- Check deck/head flatness and surface finish; follow Ford torque sequence/spec
- Use new head bolts or studs; re-torque/angle as specified
FAQ
How do I know if my 6.0L uses 20 mm dowels?
Late-2006 to 2007 builds typically use 20 mm. Measure the head-locating dowels or check the engine tag. If it’s 18 mm, use HS54450.
Does HS54579 include head bolts or dowel pins?
No. Add MAHLE GS33494 (two kits for both heads). Dowel pins are not included in HS54579; an individual gasket like 54579A may include pins.
What’s the UPC/GTIN for HS54579?
UPC (GTIN-12): 027067732705.
Specifications for Mahle HS54579
| Attribute | Value |
|---|---|
| Brand | MAHLE Original |
| Part Number | HS54579 (20 mm dowels) |
| UPC (GTIN-12) | 027067732705 |
| Shipping Info | Free Shipping from CPP Diesel. Typical package dims: 10.50" W × 2.00" H × 24.00" D. |
| Country of Origin | United States (per supplier listing) |
| Prop 65 | This product can expose you to chemicals including lead and lead compounds, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov. |
