Product Description
MAHLE GS33690 is a complete EGR installation gasket & hardware kit for the 2011–2019 Ford 6.7L Power Stroke. It’s built to OE specs and includes the critical gaskets, O-rings, and fasteners needed to reinstall or service the EGR system after cleaning or component replacement.
- Direct-fit for 6.7L Power Stroke (2011–2019)
- Includes gaskets, O-rings, and bolts for a leak-free seal
- OE-grade materials for durability and emissions compliance
- GTIN/UPC: 639789126290
Fitment
- 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Ford Super Duty F-250 / F-350 / F-450 / F-550 with 6.7L Power Stroke Diesel

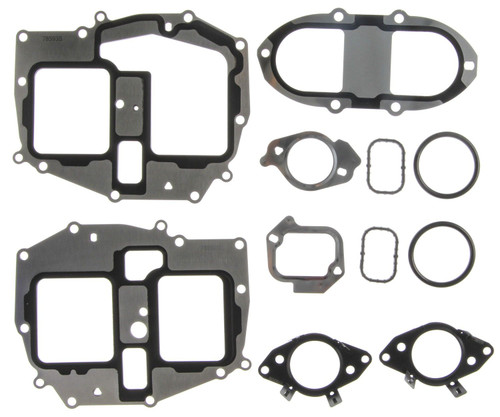

Kit Contents (typical)
- EGR bypass gasket
- EGR cooler core gasket
- EGR cooler to cooler-housing O-rings
- EGR cooler to valve cover gaskets
- EGR inlet tube gaskets
- EGR outlet tube gaskets
- Assorted bolts/hardware
Cross Reference Numbers
- Ford OE: BC3Z-9P455-B (EGR gasket/seal kit; earlier supersessions may list BC3Z-9P455-A)
- MAHLE: GS33690 (UPC 639789126290)
FAQ
Will this fit my 2011–2019 6.7L Power Stroke?
Yes—GS33690 is designed for 2011–2019 Ford Super Duty trucks equipped with the 6.7L Power Stroke diesel.
What’s included in the kit?
All primary EGR-system sealing components for reinstallation: multiple EGR gaskets, O-rings, and required hardware (see contents list above).
Is this kit emissions compliant?
It restores factory sealing when reinstalling OE-style EGR components; use with stock-type parts for emissions compliance in applicable regions.
Do I need sealant?
Generally no—use dry unless OE service info specifies otherwise. Always clean mating surfaces and torque fasteners to spec.
Any installation tips?
Inspect cooler and valve interfaces for warpage or debris; replace any damaged tubes/valves. Verify no coolant or exhaust leaks after heat-cycle.
