Product Description

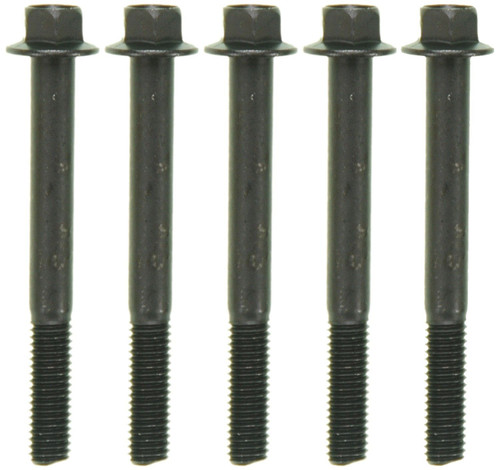

Refresh clamp load on your 6.0L with the MAHLE GS33519 Short (Inner Row) Cylinder Head Bolt Set. Designed for 2003–2007 Ford Power Stroke 6.0L service, these OE-grade short bolts replace the inner row fasteners during head gasket jobs and top-end rebuilds. Built to MAHLE specs for consistent torque and long-term sealing.
Fitment
- 2003, 2004, 2005, 2006, 2007 Ford F-250 / F-350 / F-450 / F-550 Super Duty — 6.0L Power Stroke (VT365)
- Quantity: 5 short (inner row) bolts — verify service procedure and replace as a set
Cross-Reference / Mahle Alternatives (links to CPP Diesel only)
- Mahle GS33494 Head Bolt Set (one head, long bolts) — 6.0L 2003–2007: GS33494
- Mahle HS54450 Head Gasket Set — 18 mm dowels (2003–2006): HS54450
- Mahle HS54579 Head Gasket Set — 20 mm dowels (2006.5–2007): HS54579
- Mahle GS33593 Stepped Cylinder Head Dowel Pins — 18→20 mm alignment: GS33593
- Mahle GS33998 Stand Pipe & Front Rail Port Plug Reseal Kit — 6.0L HPO system: GS33998
- Mahle MIS19311 Intake Manifold Installation Gasket Set — 6.0L: MIS19311
What’s Included
- (5) short/inner-row head bolts for one bank (see service manual for bolt map)
FAQ
Are these the inner (short) bolts for the 6.0L?
Yes. GS33519 services the short inner-row positions on 2003–2007 6.0L heads.
How many kits do I need?
Typically one set per head for the inner row. Combine with long-bolt set GS33494 as needed per side.
Can I reuse old head bolts?
Reusing is not recommended; always install new bolts and follow Ford/International torque-angle procedures.
Do I need 18 mm or 20 mm dowels?
Depends on model year/build. Use GS33593 stepped dowels when mixing 18 mm/20 mm components.
Specifications for Mahle GS33519
| Attribute | Value |
|---|---|
| Brand | Mahle |
| Part Number | GS33519 |
| UPC | 027067733245 |
| GTIN | 00027067733245 |
| Engine Compatibility | 2003–2007 Ford 6.0L Power Stroke (VT365) |
| Quantity in Package | 5 short bolts (inner row) |
| Package Dimensions (WxHxD) | 6.00" × 3.00" × 3.00" |
| Shipping | Calculated at checkout / Free shipping promos as available |
| Prop 65 | Not listed by seller; see www.P65Warnings.ca.gov. |
