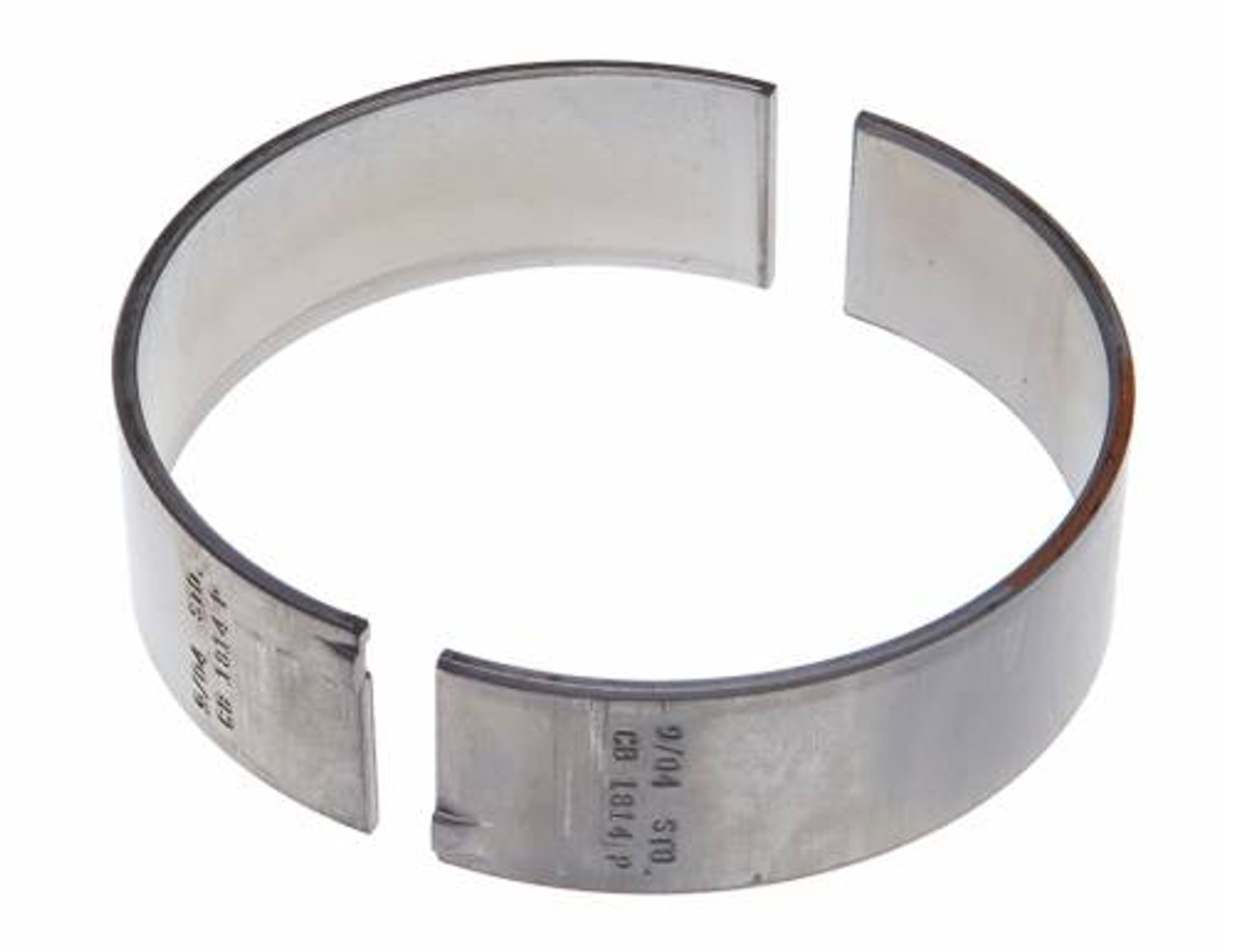

MAHLE CB-1814P-.50MM ROD BEARINGS (.50MM) FOR 2003-2007 FORD SUPERDUTY WITH 6.0L POWERSTROKE ENGINE

(No reviews yet) Write a Review
SKU:
MCICB1814P50MM
MPN:
CB1814P50MM
Shipping:
Calculated at Checkout
$21.05
724-785-4022

Description

The MAHLE CB-1814P-.50MM is a Clevite P-Series connecting rod bearing designed for 2003-2007 Ford 6.0L Powerstroke engines, specifically when the engine has been re-machined to a .50mm undersize. These bearings are known for their strength and durability, making them suitable for high-performance applications. They feature a hardened steel back, high crush for maximum retention, and a reduced overlay thickness to prevent fatigue, according to CPP.

Here's a more detailed overview:
  • Application: 2003-2007 Ford 6.0L Powerstroke engine, used when the engine is rebored to .50mm undersize.

  • Type: Clevite P-Series connecting rod bearing.

  • Design Features:
    • Hardened steel back for increased strength and resistance to fretting.

    • High crush for maximum retention and minimizes rod bore contact.

    • Reduced overlay thickness to prevent fatigue.

    • Tri-metal construction (P-Series) for increased load capacity.

  • Suitability: Ideal for rebuilding engines where more demanding use is anticipated, such as heavy-duty or high-performance applications, says CPP.

  • Material: TM-77.

Vehicle Fitment

The MAHLE CB-1814P-.50MM is compatible with the following models:

MakeModelYears
Ford F-250 Super Duty 2003–2007
Ford F-350 Super Duty 2003–2007
Ford F-450 Super Duty 2003–2007
Ford F-550 Super Duty 2003–2007
Ford Excursion 2003–2005
Ford E-350 Super Duty 2004–2010
Ford E-450 Super Duty 2004–2010
Ford E-350 Club Wagon 2004–2005
Navistar VT365 (6.0L Powerstroke) 2003–2010

Note: This bearing set is intended for engines with a shaft diameter that requires a -.50mm undersize bearing.

?️ Specifications

  • Material: Tri-metal (TM-77)

  • Design: P-Series (high-performance)

  • Size: -.50mm Undersize

  • Shaft Diameter: 2.7165" – 2.7170"

  • Housing Bore: 2.8735" – 2.8744"

  • Vertical Oil Clearance: 0.0006" – 0.0035"

  • Maximum Wall Thickness: 0.078"

  • Maximum Length: 0.831"

  • Sold As: Set of 8

Marketing Description (EN)
Ideal for rebuilding engines where more demanding use is anticipated, such as heavy duty, motorsports, or street performance. As it is the most versatile replacement, Clevite engine bearing P-Series is suitable for most OE applications. Due to the increased load capacity of the Tri-Metal design, it is a suitable upgrade from Bi-Metal engine bearings.
Product Description - Long (EN)
Engine Connecting Rod Bearing Pair



AutoCare brands Id BCWD
AutoCare brand Clevite
Environmentally hazardous material No
ACES applications available Yes
Quantity per application 8 Each
Minimum order 1 Each



SDR Required Flag No
Warranty Time UOM Months
Warranty Time 12
Country of Origin (Primary) United States
Taxable Yes
Harmonized Tariff Code (Schedule B) 8483308090
Life Cycle Status Code Available to Order



Bearing Item Grade OE Replacement
Meets or Exceeds Original Equipment Manufacture Specifications Yes
Bearing Material TM-77
Size 0.50 mm Undersize
Bearing Series P



Type of package Smallest Pack (Consumer Level)
Quantity per packing unit 2
package level GTIN 00027067396815
Height (Inch) 1.25
Width (Inch) 3.187
Length (Inch) 2.25
weight (Pounds Gross) 0.204



The MAHLE CB-1814P-.50MM rod bearings are engineered specifically for 2003-2007 Ford Super Duty models equipped with the 6.0L Powerstroke engine. Designed for applications where the engine has been re-machined to a .50mm undersize, these Clevite P-Series connecting rod bearings provide exceptional performance and durability, making them an ideal choice for high-performance or heavy-duty use.

Constructed with a hardened steel back, these bearings are built to withstand the rigors of demanding automotive applications. The high crush design maximizes retention while minimizing contact at the rod bore, ensuring an effective fit and long-lasting performance. The reduced overlay thickness is developed to prevent fatigue, maintaining strength under high stress. Crafted using tri-metal construction (TM-77), the CB-1814P bearings offer enhanced load capacity, making them suitable for engines subjected to extreme conditions.

This set of eight bearings fits a broad range of Ford and Navistar models, including popular choices like the Ford F-250, F-350, F-450, F-550 Super Duty, and the Ford Excursion. The ideal application involves rebored engines needing a shaft diameter of .50mm undersize, which ensures superior functionality and reliability.

Specifications include a housing bore of 2.8735" to 2.8744" and a vertical oil clearance of 0.0006" to 0.0035"; these specific measurements contribute to optimal engine performance. With a maximum wall thickness of 0.078" and a maximum length of 0.831", the MAHLE CB-1814P-.50MM rod bearings embody reliability and excellence.

Perfect for rebuilds under heavier usage, these bearings are a critical component for ensuring that your engine delivers the performance it was designed to achieve. Choose MAHLE for your engine's next overhaul and experience the difference in quality.
