Product Description

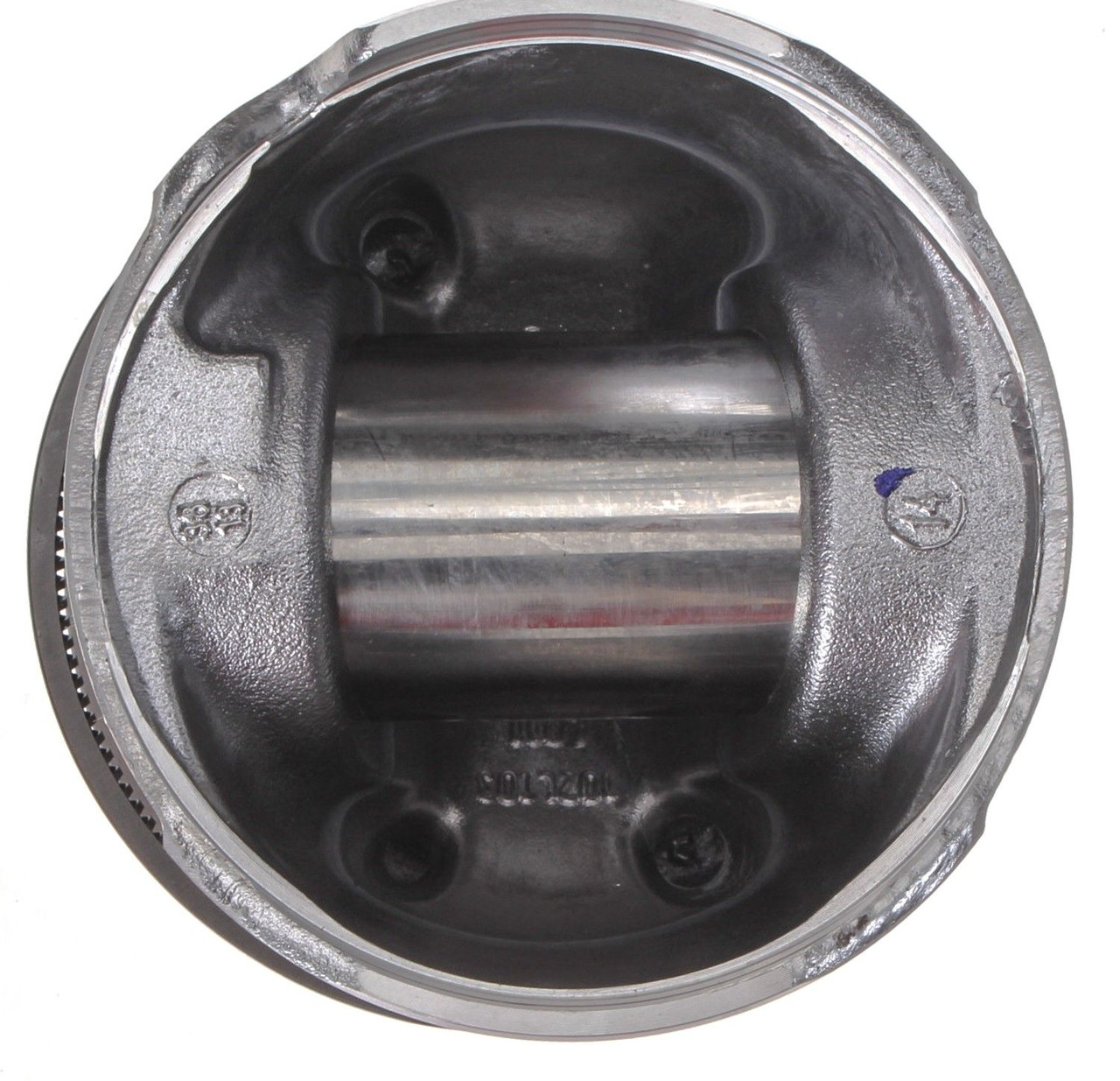

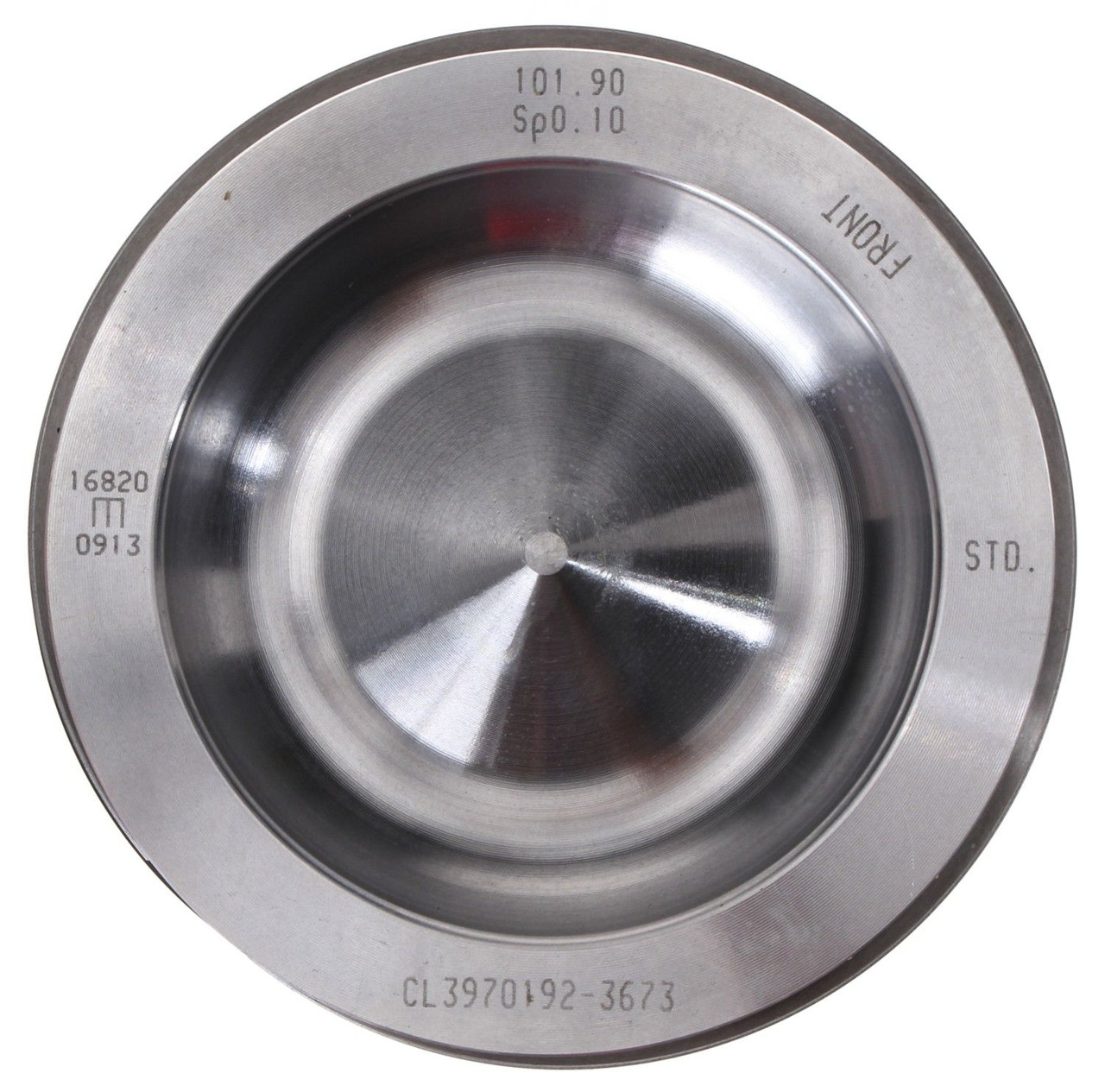

Refresh compression and durability on your 2004.5–2007 5.9L Cummins (VIN C) with the MAHLE 224-3673WR standard-bore piston kit with rings. This OE-quality set delivers reliable sealing, proper ring loading, and long service life for stock rebuilds and tow/haul duty.
Fitment
- 2004.5, 2005, 2006, 2007 Dodge Ram 2500/3500 – 5.9L Cummins ISB (24V), VIN C
Cross-Reference / Alternatives (Mahle on CPP Diesel only)
- MAHLE 224-3673WR.020 (.020) – 04.5–07 Cummins 5.9L
- MAHLE 224-3673WR.040 (.040) – 04.5–07 Cummins 5.9L
- MAHLE S42170 PISTON RING SET (STD) – 89–07 Cummins 5.9L
- MAHLE 929969315 MONOTHERM FORGED STEEL PISTON SET – 04.5–07 Cummins 5.9L
Notes

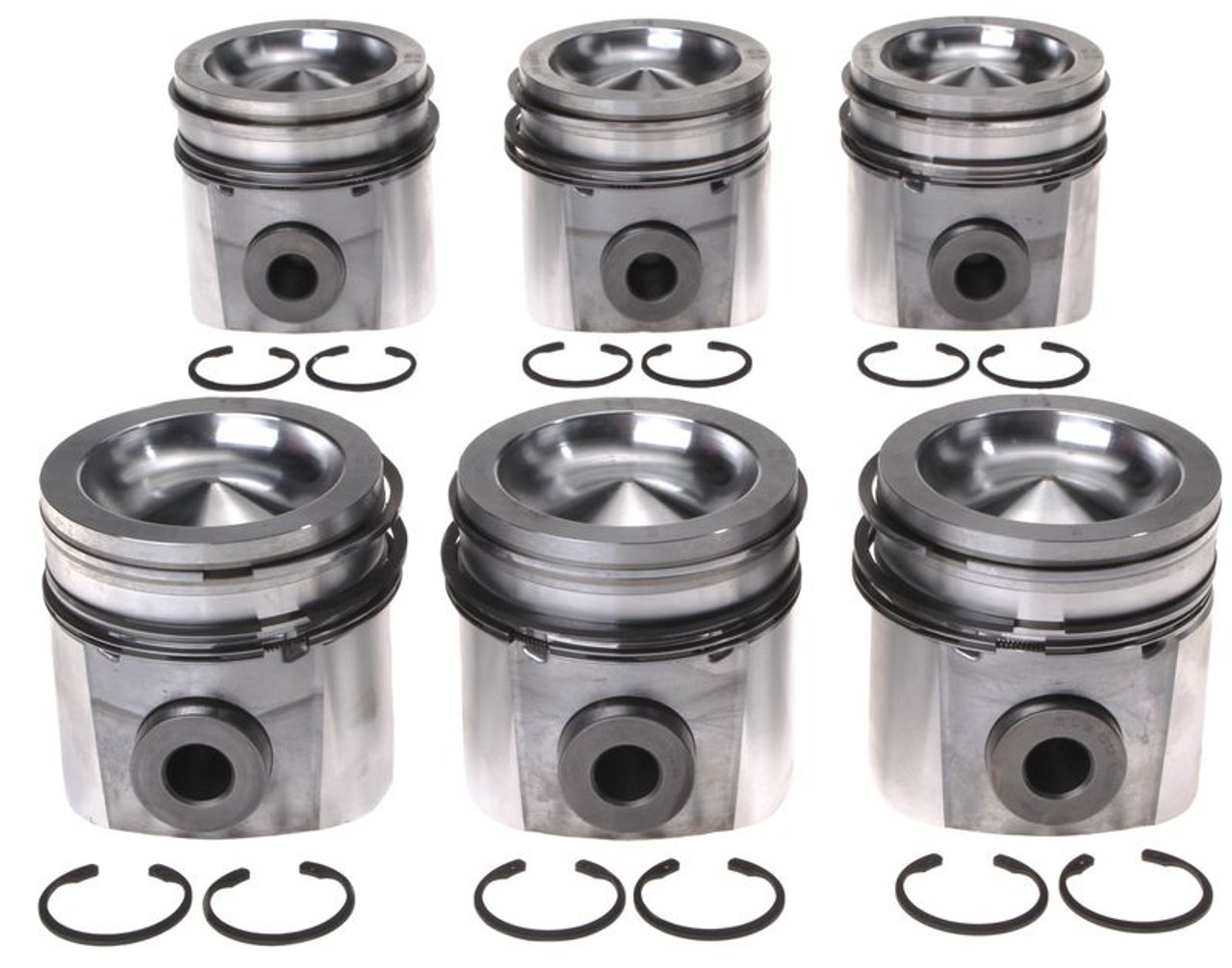

Price is for a complete set of six (6) pistons with matched ring packs, pins, and retainers. Ring pack code RBT-10. Bore 4.016". Always verify VIN C and model year (2004.5–2007 common-rail) before ordering.
FAQ
Is this a complete engine set?
Yes. You get six pistons with rings, pins, and retainers for a full rebuild.
Will these fit my 2003 truck?
No. This kit is designed for 2004.5–2007 common-rail applications with VIN C.
What ring specs are included?
Standard-bore ring pack (RBT-10), thickness ~0.173", ring width ~0.094".
Specifications for Mahle 224-3673WR
| Attribute | Value |
|---|---|
| Brand | MAHLE |
| Part Number | 224-3673WR (Standard Bore) |
| Engine Compatibility | 2004.5–2007 Dodge Ram 2500/3500, 5.9L Cummins ISB (24V), VIN C |
| Includes | (6) pistons, (6) ring sets, pins & retainers |
| UPC | 027067897800 |
| GTIN | 027067897800 |
| Shipping | Free Shipping (ground); optional shipping insurance available at checkout |
| Prop 65 | This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Learn more |
