Product Description

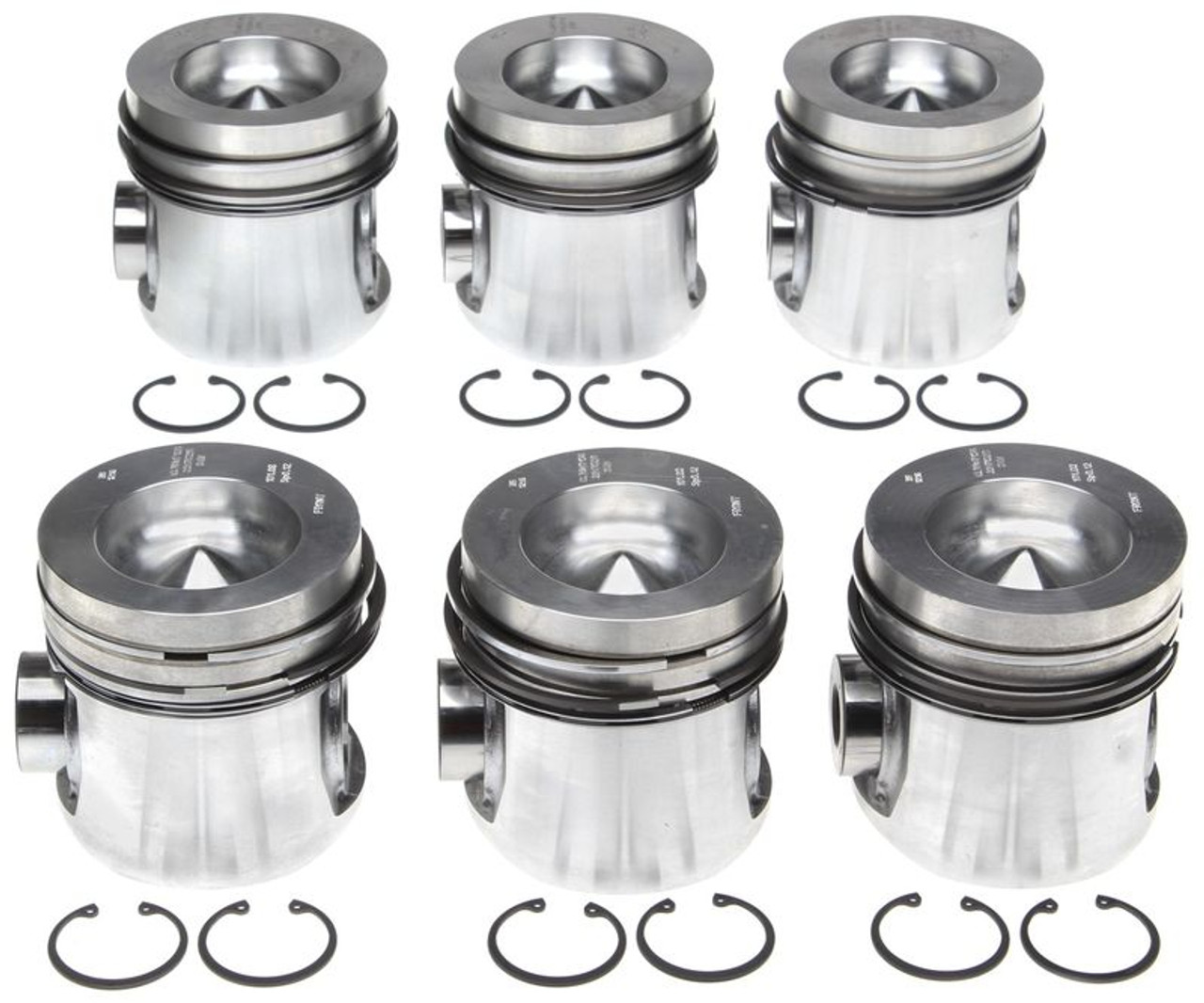

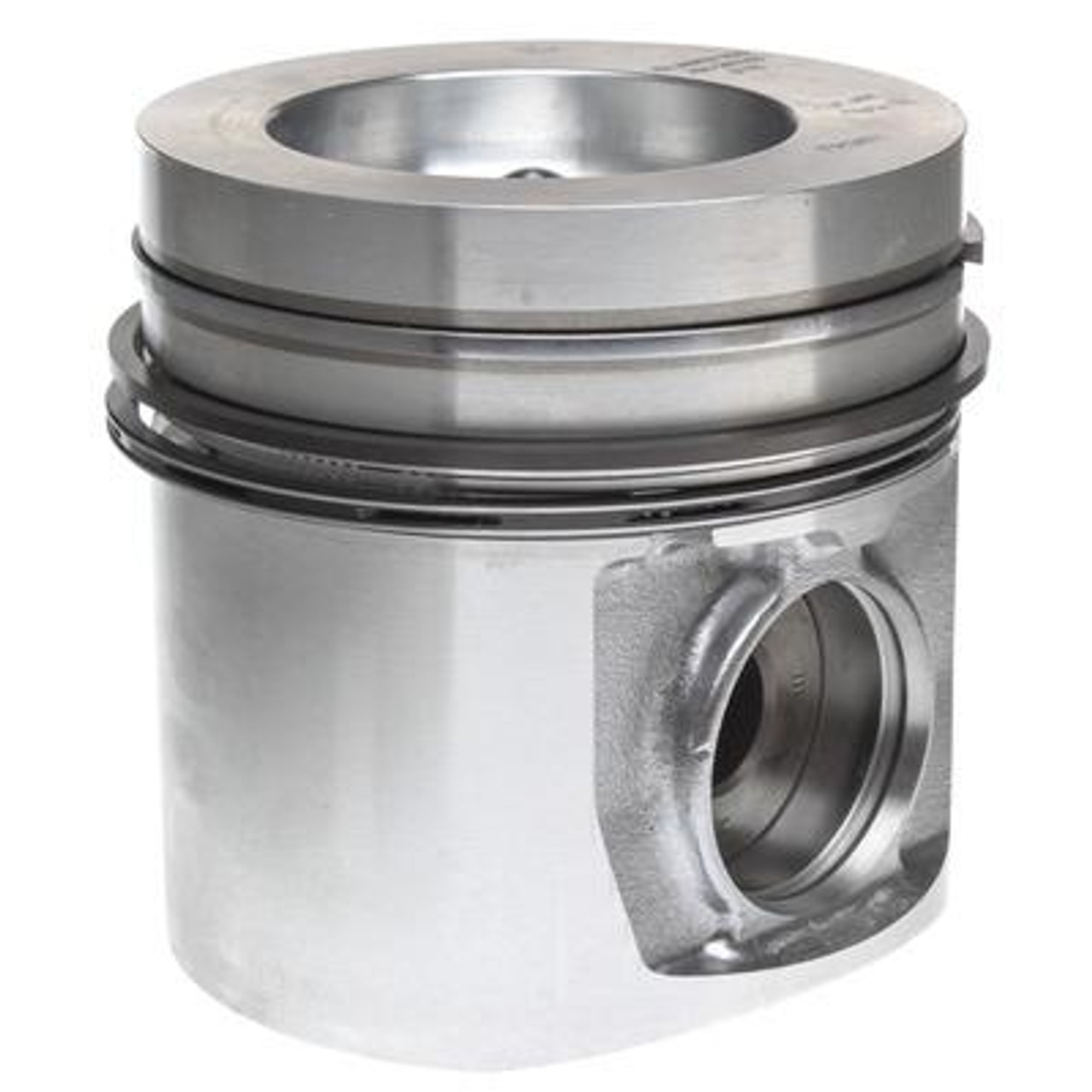

MAHLE 224-3523WR marine-bowl piston set with rings (STD bore) for the 1994–1998 Cummins 5.9L 12-valve. Built to OE specs with 40 mm wrist pins, expansion-controlled design, and a factory-matched ring pack, these pistons deliver durable sealing and the proven marine/QSB-style bowl for mixture quality under load.
Why it wins: consistent ring loading, oil control under heavy towing, and stable skirt geometry. The marine bowl helps concentrate heat where it belongs and supports clean burn when fueling is increased.
Fitment
- 1994–1998 Dodge/Ram 2500 & 3500 with 5.9L Cummins 12-valve (B-series)
- Bore size: Standard (STD)
- Includes: Set of 6 pistons with rings, wrist pins, and clips (as supplied by MAHLE)
Cross-Reference / Alternatives (MAHLE on CPP Diesel)
- Oversize (+.020): MAHLE 224-3523WR.020
- Oversize (+.040): MAHLE 224-3523WR.040
- Standard-bowl family (’94–’98): MAHLE 224-3520WR (STD)
- Standard-bowl +.020: MAHLE 224-3520WR.020
Specifications for Mahle 224-3523WR
| Attribute | Value |
|---|---|
| Brand | MAHLE |
| Part Number | 224-3523WR (STD) |
| UPC | 027067913562 |
| GTIN | 00027067913562 |
| Engine | Cummins 5.9L 12-valve (B-series) |
| Bore Size | Standard (STD) |
| Pin Diameter | 40 mm |
| Includes | (6) Pistons, rings, pins & clips (as supplied by MAHLE) |
| Shipping | Ground service; shipping charges shown at checkout |
| Prop 65 | This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Learn more. |
FAQ
Is this priced per piston or for a full set?
CPP Diesel sells this as a complete set of six (6) pistons with rings.
Will these drop into my 1994–1998 12-valve?
Yes, this STD-bore set is intended for ’94–’98 5.9L 12V builds. Always confirm cylinder bore, pin size (40 mm), and bowl spec before installation.
What’s the difference between marine-bowl 224-3523WR and standard-bowl 224-3520WR?
The marine/QSB bowl concentrates the combustion area versus the standard bowl. Choose 224-3523WR for marine-bowl builds; choose 224-3520WR for OE-style standard bowl.
Do the rings come pre-installed?
Rings are included and should be sized/gapped and installed per MAHLE/Cummins spec during assembly.
