Product Description

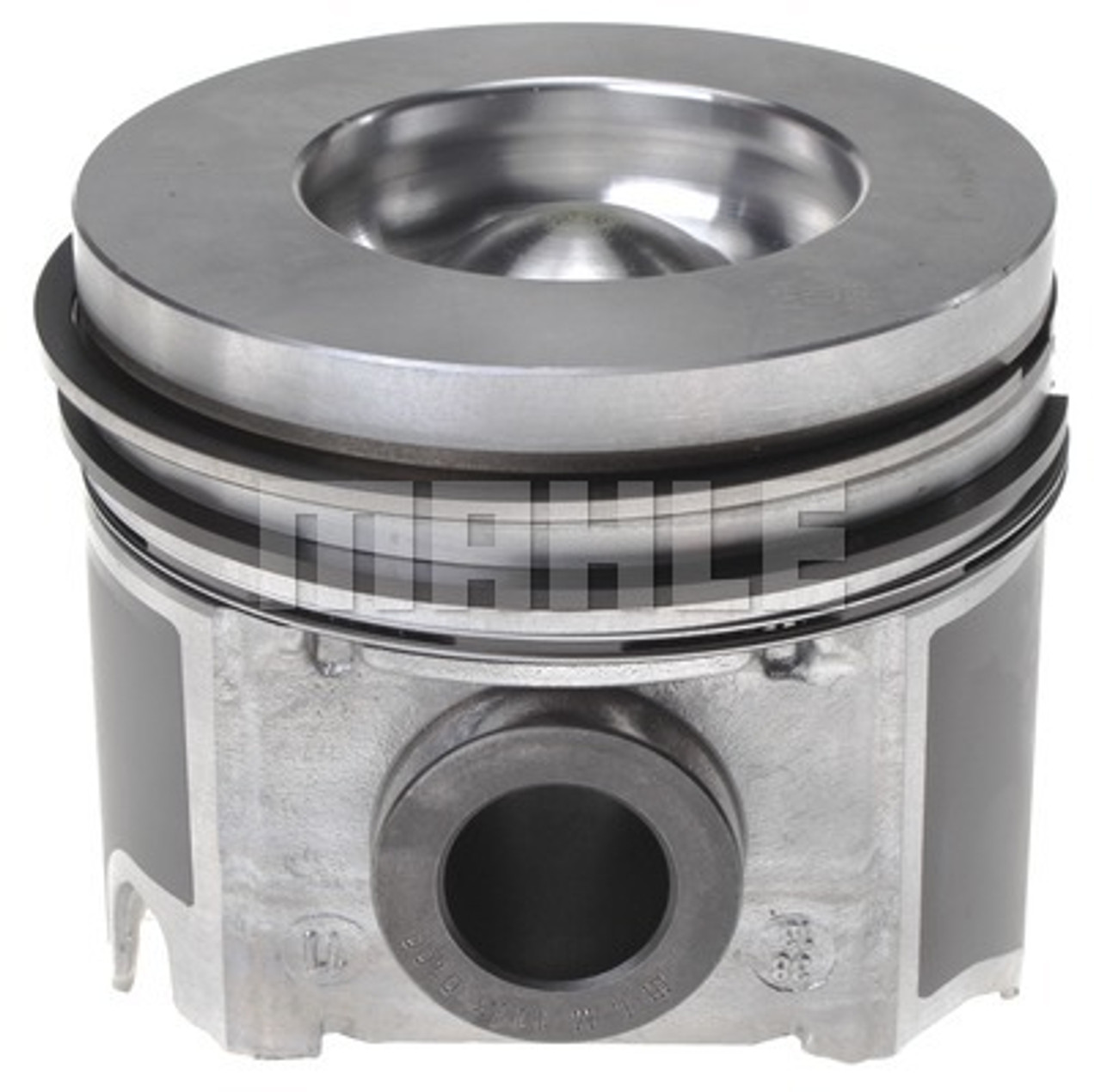

MAHLE 224-3503WR standard-size pistons with rings for the 2003–2007 Ford 6.0L Power Stroke. OE-style design with expansion-controlled, coated skirts for quiet operation and long service life. Includes pistons, pins, locks, and rings.
- Engine: Ford 6.0L Power Stroke (V8)
- Design: Expansion-controlled, coated skirts
- Size: Standard (STD)
- Includes: (8) pistons, pins, locks, and rings
Fitment
- 2003–2005 Ford Excursion 6.0L
- 2004–2007 Ford F-250 / F-350 / F-450 / F-550 Super Duty 6.0L
- 2004–2010 Ford E-350 / E-450 Super Duty 6.0L
- Build note: Fits 2004–2007 trucks (built 9/22/2003 & later) per OE fitment guidance.
Specs
- Piston head: Bowl
- Skirt: Coated
- Compression height: 52.29 mm
- Top ring thickness: 2.30 mm • Second ring: 2.00 mm • Oil ring: 3.44 mm
- With piston rings: Yes (standard compression)
Cross Reference Numbers
- MAHLE: 224-3503WR
- GTIN/UPC: 027067913135
- Qualifier / Interchange: 1845154C91
What’s Included

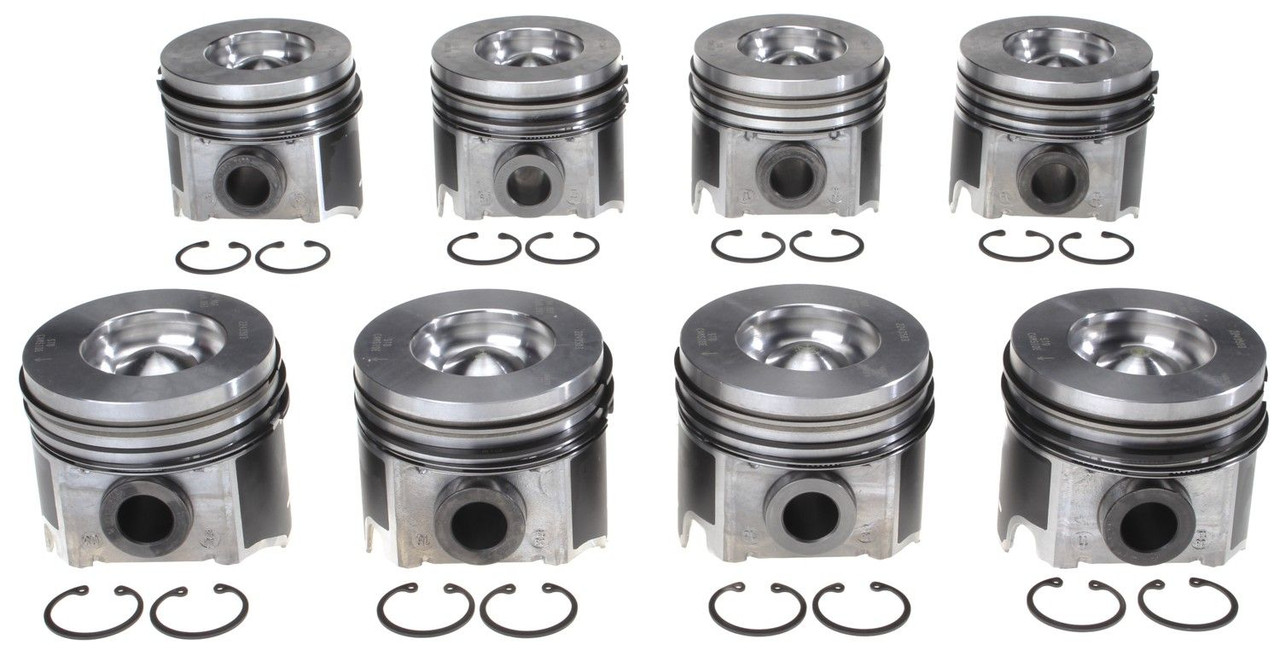

(8) standard-bore pistons, (8) wrist pins, (16) locks, and matched ring packs.
FAQ
Is this a full set?
Yes—sold as a complete set of eight pistons with rings for a full engine rebuild.
Do you sell piston rings separately?
Yes—we sell piston rings in sets of 8 for the 6.0L Power Stroke, so you can refresh rings without replacing pistons.
What vehicles does it fit?
2003–2005 Excursion 6.0L; 2004–2007 F-250/F-350/F-450/F-550 6.0L; 2004–2010 E-350/E-450 6.0L. See build-date note above.
Are these OE-style pistons?
Yes—OE-style construction with expansion-controlled design and coated skirts for durability and noise control.
