Product Description

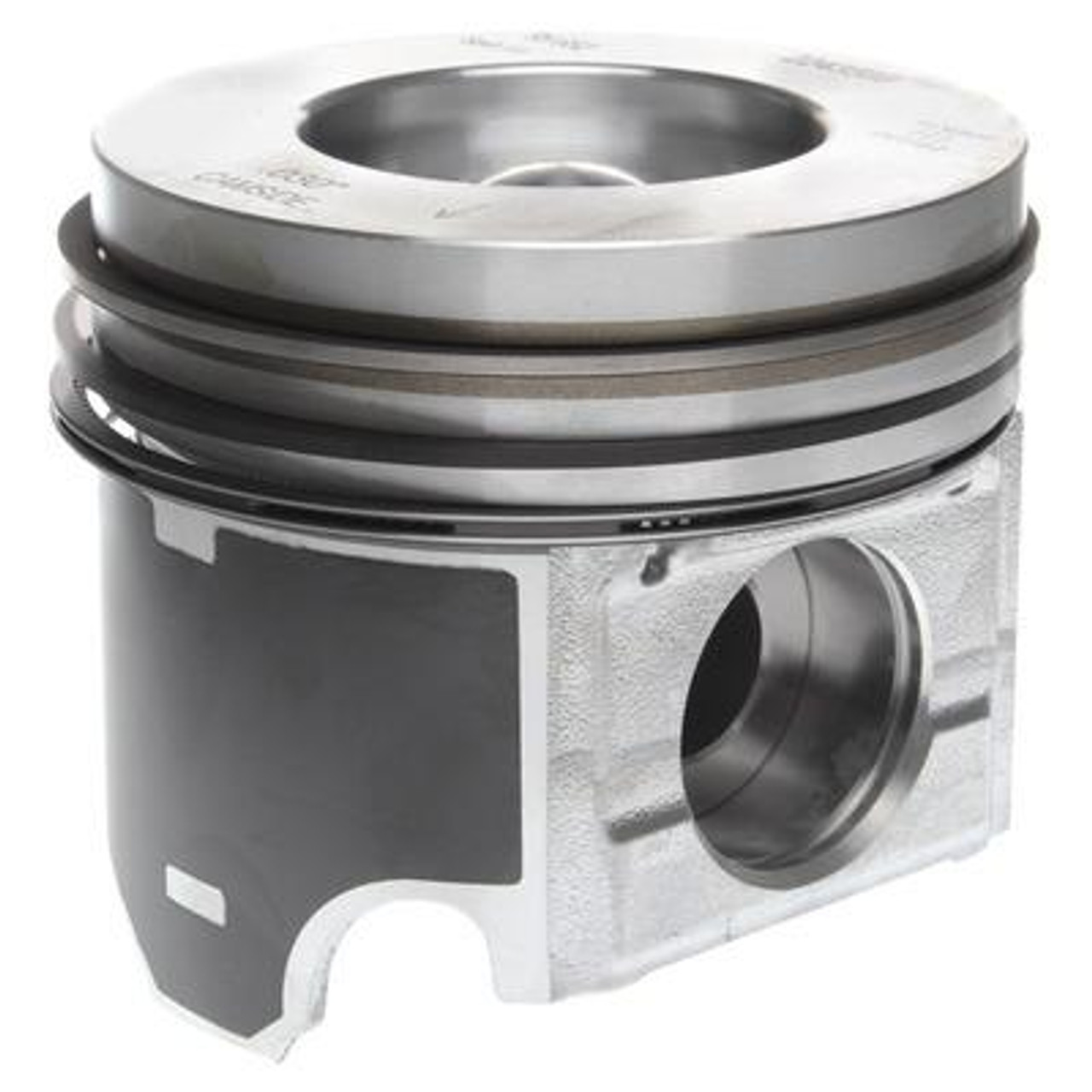

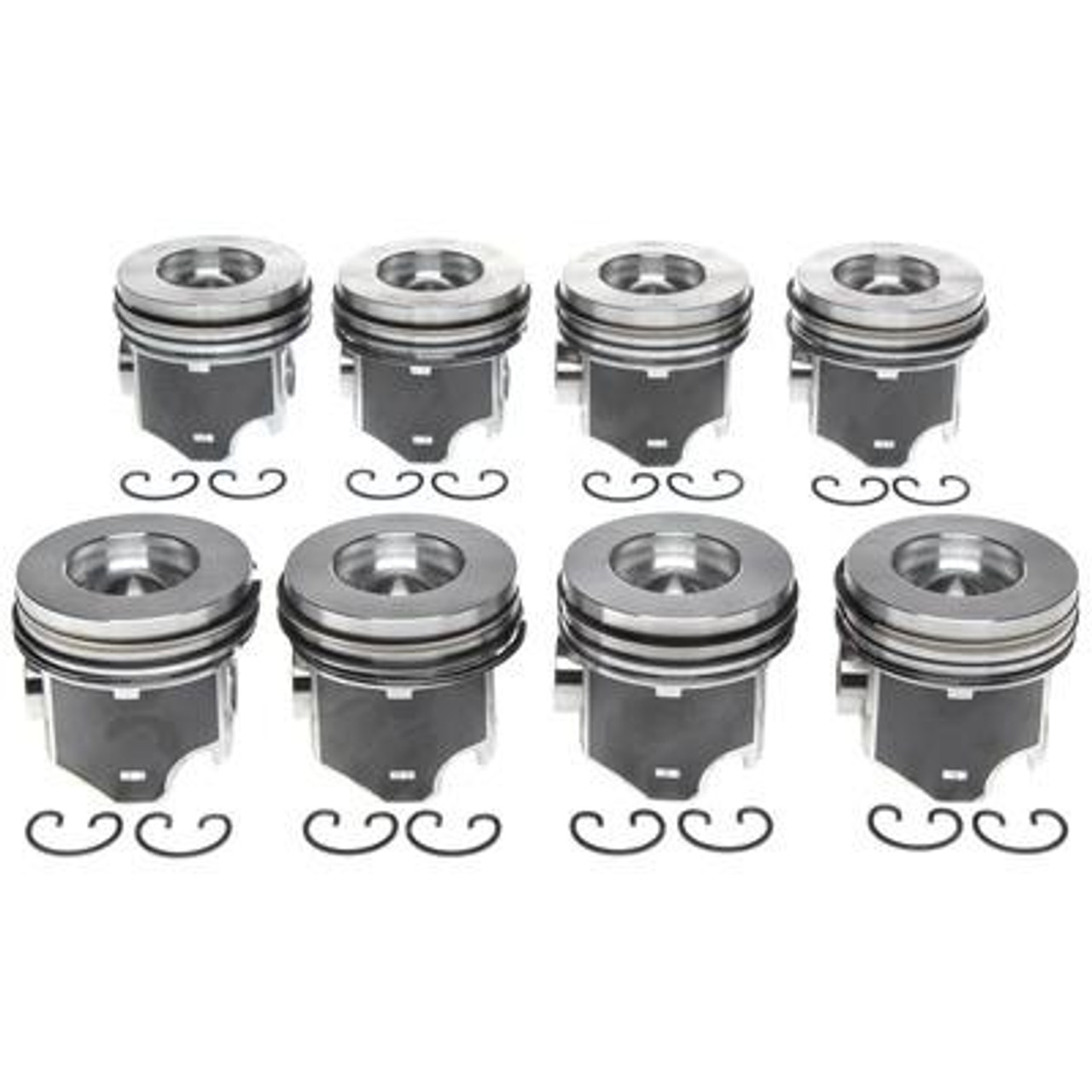

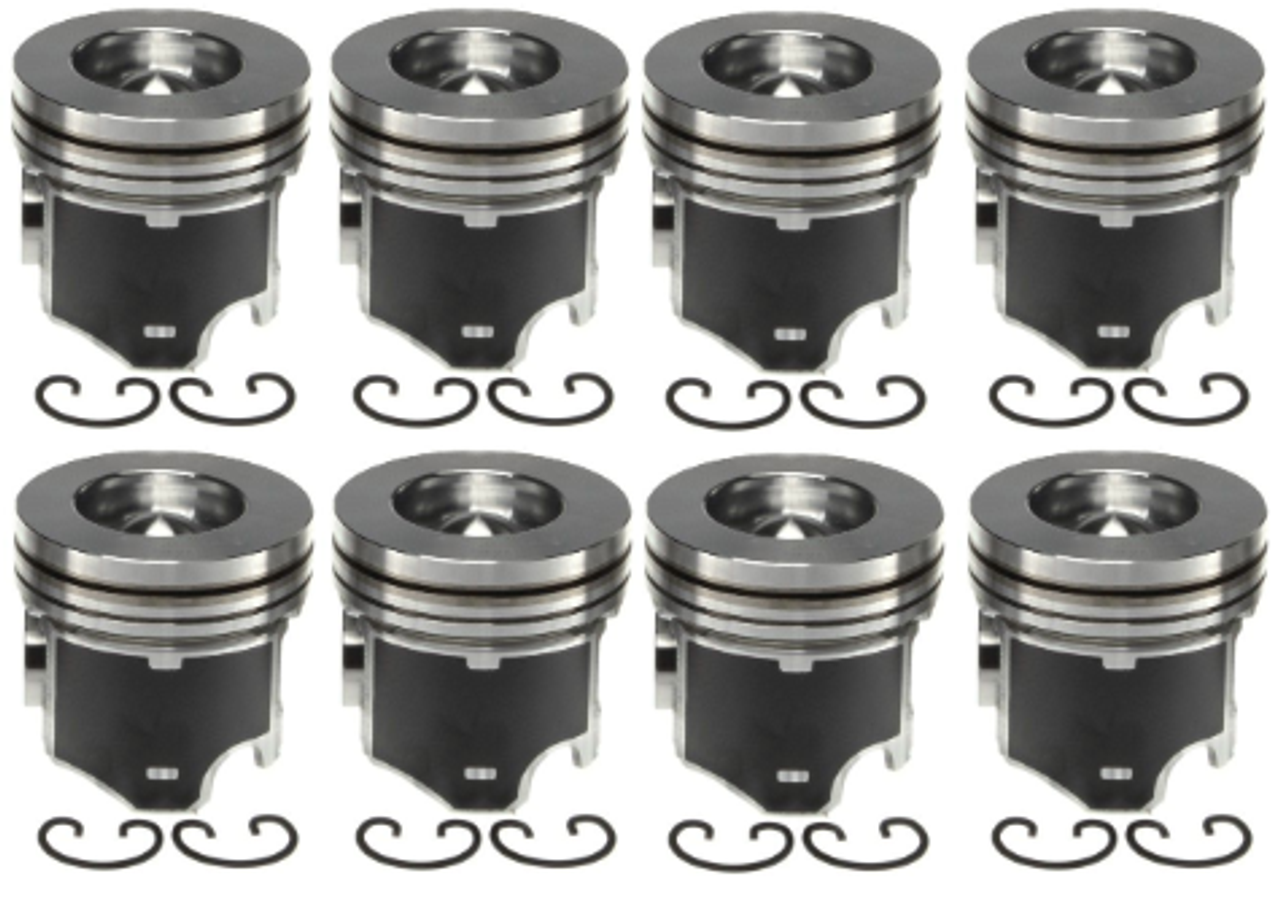

MAHLE 224-3503WR.030 piston set with rings is the OE-style +0.030" oversize solution for the 2003–2007 Ford 6.0L Power Stroke (VT365). Expansion-controlled alloy with coated skirts delivers quiet operation, stable ring seal, and long service life in work and tow builds. Sold as a complete set of eight (8) with pins, locks, and pre-fitted ring packs.
Fitment
- 2004–2007 Ford F-250/F-350/F-450/F-550 Super Duty 6.0L (built 9/22/2003 & later)
- 2004–2010 Ford E-350/E-450 6.0L; 2003–2005 Ford Excursion 6.0L
- Engine code: 6.0L “VIN P” / Navistar VT365
- Oversize: +.030" (requires appropriate machine bore & hone)
Cross-Reference / Alternatives (MAHLE on CPP Diesel)
- Standard (STD): MAHLE 224-3503WR (STD)
- +.010: MAHLE 224-3503WR.010
- +.020: MAHLE 224-3503WR.020
- +.040: MAHLE 224-3503WR.040
- Mahle ring set (.030): MAHLE S41940.030
Specifications for Mahle 224-3503WR.030
| Attribute | Value |
|---|---|
| Brand | MAHLE |
| Part Number | 224-3503WR.030 |
| UPC | 027067913159 |
| GTIN | 00027067913159 |
| Engine Compatibility | 2003–2007 Ford 6.0L Power Stroke (VT365) |
| Oversize | +.030" (requires machine bore & hone) |
| Includes | (8) pistons, (8) pins, (16) locks, pre-fitted ring packs |
| Compression Height / Pin O.D. | ~52.29 mm / ~34.01 mm (family spec) |
| Ring Thickness | 2.30 / 2.00 / 3.44 mm (family spec) |
| Package Dimensions (W×H×D) | 11.00" × 6.00" × 15.00" |
| Shipping | Free Ground (options shown at checkout) |
| Prop 65 | This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Learn more. |
FAQ
Is this priced for a full engine set?
Yes. It’s a set of eight (8) pistons with rings for one 6.0L engine.
When should I choose .030" over?
Choose .030" when your cylinders are bored to +.030" during machining. Always measure and verify with your machinist and match to the correct ring set.
Do pins, locks, and rings come with the pistons?
Yes—pins, locks, and pre-fitted ring packs are included for each piston.
Will this fit early-build 2003 trucks?
Fits 6.0L trucks built on/after 9/22/2003; verify your build date (Excursion 2003–2005 and E-Series 2004–2010 are covered).
