Product Description
Refresh your late-’03–07 6.0L with the MAHLE 224-3503WR.010 Piston Set w/ Rings. These +.010" oversize, OE-style pistons feature an expansion-controlled alloy and coated skirts for quiet operation and long service life. Sold as a complete set of eight for one engine.
Fitment
- 2004–2007 Ford F-250 / F-350 / F-450 / F-550 6.0L Power Stroke (build date 09/22/2003 & later)
- 2004–2005 Ford Excursion 6.0L Power Stroke (build date 09/22/2003 & later)
- Also used on select E-Series 6.0L applications where noted—confirm by VIN and oversize
Cross-Reference / Alternatives (Mahle only)
- Mahle 224-3503WR (Standard Bore): 224-3503WR
- Mahle 224-3503WR.020 (+.020"): 224-3503WR.020
- Mahle 224-3503WR.040 (+.040"): 224-3503WR.040
- Mahle 41940.01 Piston Ring Set (.010, full engine set): 41940.01
What’s Included

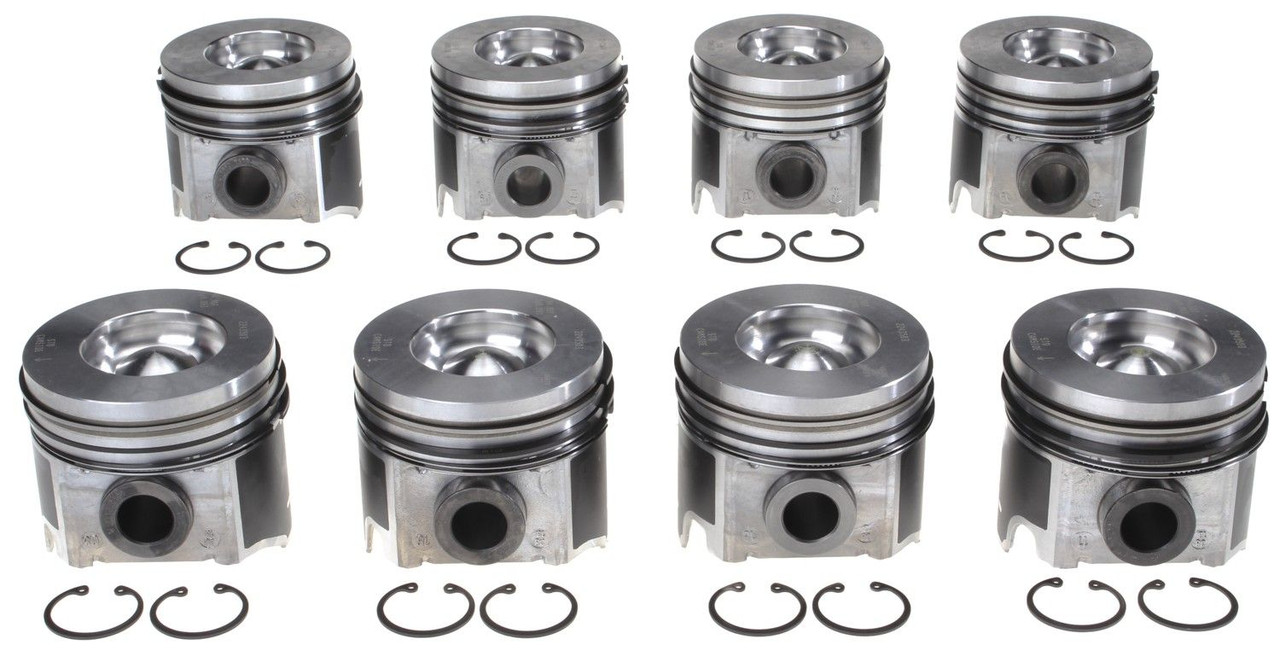

- (8) +.010" pistons with matched Mahle ring packs
- (8) wrist pins & (16) locks
FAQ
Will these fit my 2003?
Ford used two build ranges in 2003. This set fits 09/22/2003 and later builds (model-year 2004–2007). Check your door-jamb build date.
Are the skirts coated?
Yes—graphite/moly coated skirts for controlled friction and scuff resistance.
Is this price for a full set?
Yes, the CPP listing is for a complete engine set of eight pistons with rings, plus pins and locks.
Do you carry other oversizes?
Yes—see the Mahle +.020" and +.040" sets linked above, as well as the standard-bore set.
Specifications for Mahle 224-3503WR.010
| Attribute | Value |
|---|---|
| Brand | Mahle |
| Part Number | 224-3503WR.010 |
| UPC | 027067929792 |
| GTIN | 027067929792 |
| Engine Compatibility | Ford/Navistar 6.0L Power Stroke (VT365), late-2003 build & later |
| Oversize | +.010" over |
| Skirt | Graphite/Moly coated |
| Package Dimensions (W×H×D) | 11.38" × 6.00" × 13.75" |
| Shipping | Free Shipping (standard) |
| Prop 65 | Not specified by manufacturer. See www.P65Warnings.ca.gov. |
