MAHLE 224-3355WR PISTON KIT W/RINGS (STD) FOR 98.5-02 CUMMINS 5.9

Product Description

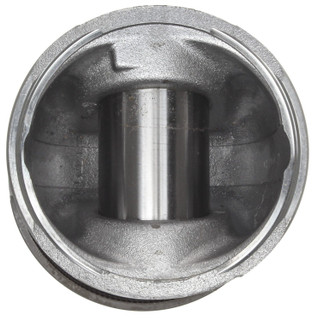

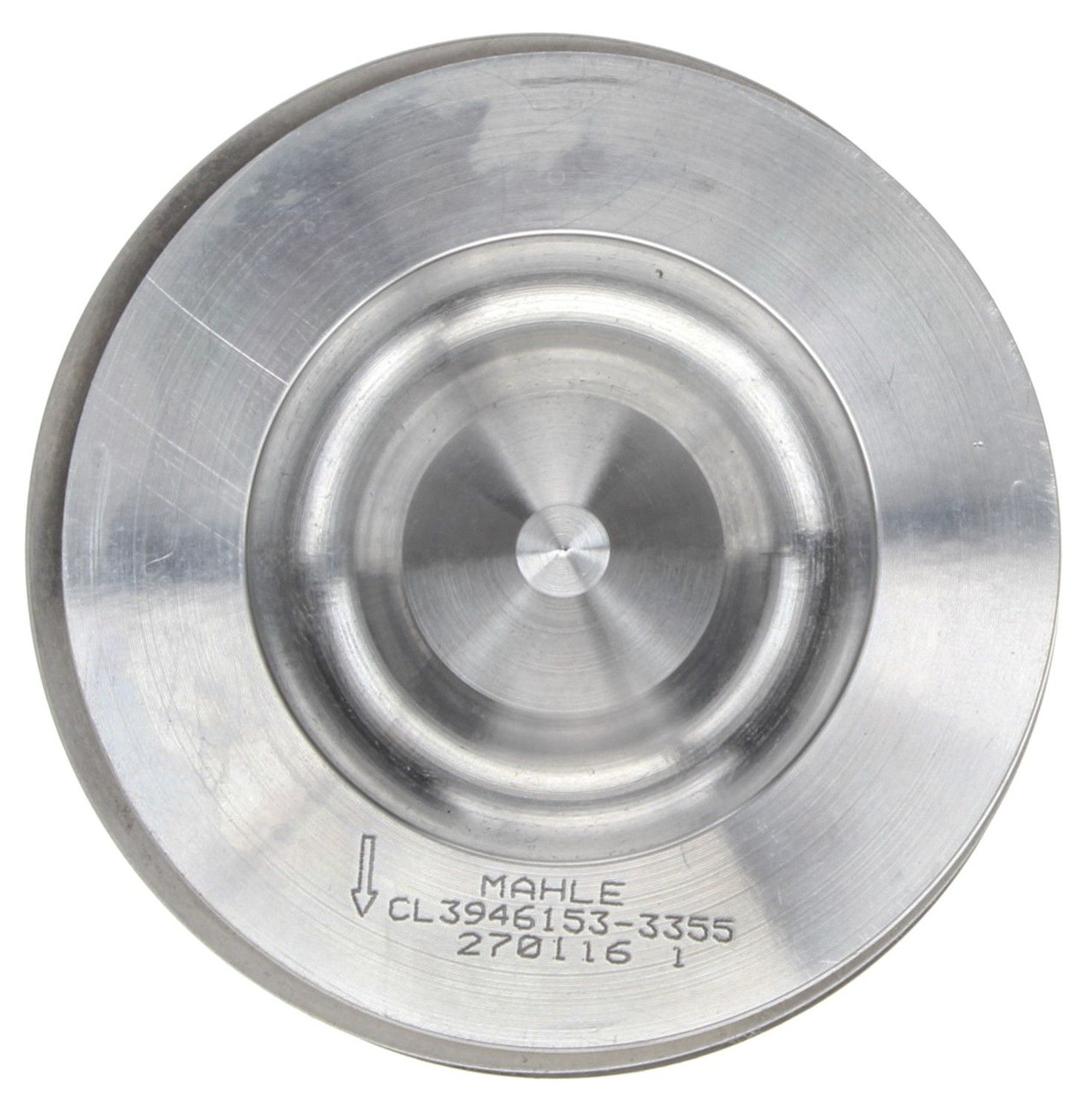

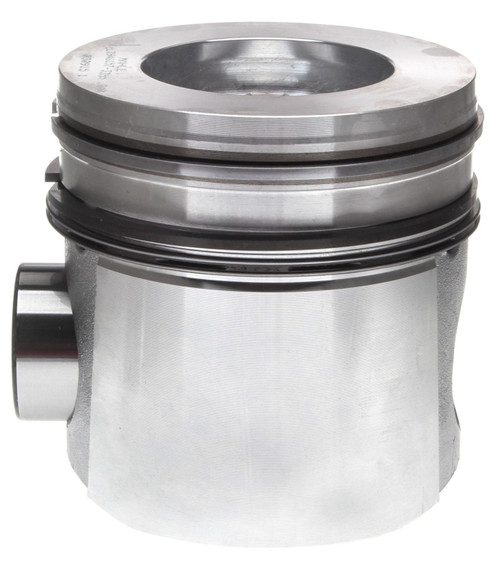

Restore factory sealing and quiet operation with the MAHLE 224-3355WR piston kit with rings for 1998.5–2002 5.9L Cummins 24-valve (Standard Output, VP44). This OE-grade re-entrant bowl piston set uses MAHLE’s expansion-controlled alloy and matched ring pack for dependable compression, low oil consumption, and long service life under tow and work-truck duty cycles.

Mahle 224-3355WR piston kit, Cummins 5.9 24V standard output pistons, VP44 pistons, re-entrant bowl piston, Mahle pistons with rings set of 6, 4.016 bore standard, CPP Diesel Mahle Cummins kit, diesel engine rebuild parts, low oil consumption ring pack, OE replacement pistons

Fitment

• 1998.5–2002 Dodge Ram 2500/3500 – 5.9L Cummins ISB 24-valve (Standard Output / VIN 6)

Cross-Reference / Alternatives (Mahle on CPP Diesel only)

• MAHLE 224-3355WR.020 (.020) – Set of 6
• MAHLE 224-3355WR.040 (.040) – Set of 6
• MAHLE 224-3354WR (STD) – 2001–2002 5.9L Cummins HO
• MAHLE 224-3354WR.040 (.040) – 2001–2002 5.9L Cummins HO

Notes

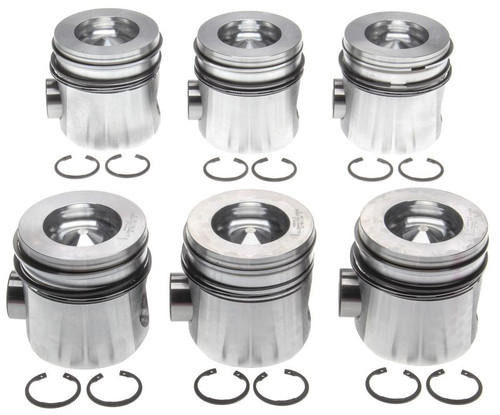

Sold as a complete set of six pistons with rings, pins, and locks. Always measure bore, taper, and piston-to-wall; verify ring end-gaps and weight-match per build practice.

FAQ

Is the price for one piston or a full set?

CPP Diesel lists this kit as a set of six pistons with rings, pins, and locks.

Will this fit my 24-valve truck?

Yes—this Standard Output (VIN 6) kit fits 1998.5–2002 5.9L Cummins ISB with VP44 injection. For 2001–2002 HO (VIN 7), use the HO-specific 224-3354WR variants.

What’s the bore size and ring pack?

Standard 4.016" bore with a factory-style ring pack; pistons include pins and locks.

Specifications for Mahle 224-3355WR
