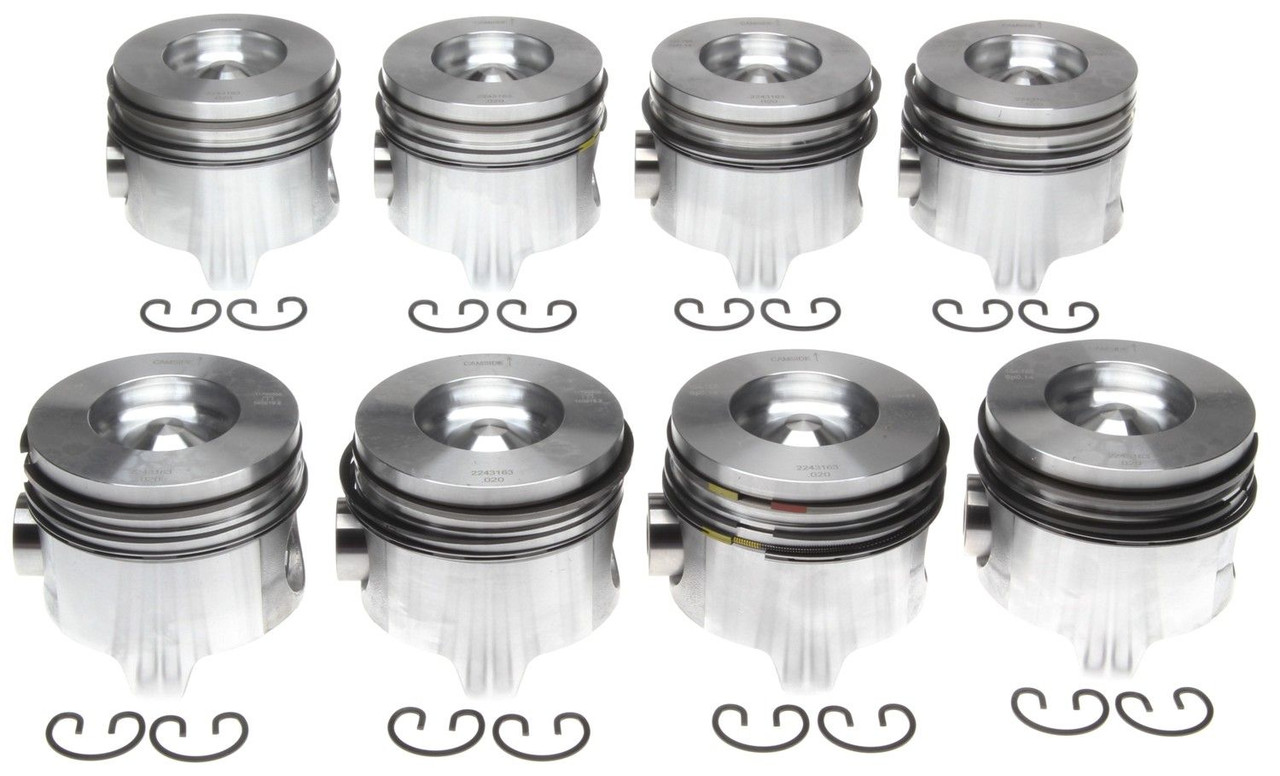

MAHLE 224-3163WR.020 PISTON WITH RINGS (.020) FOR 94-03 FORD POWERSTROKE

Product Description

Refresh compression and ring seal on your 7.3L with the MAHLE 224-3163WR.020 piston set with rings. This +.020" overbore kit is engineered to OE standards for 1994–2003 Ford 7.3L Power Stroke builds, using the correct RBT-10 ring pack for reliable sealing, clean oil control, and long life in tow, work, and daily driver duty.

Mahle 224-3163WR.020, 7.3 Powerstroke .020 pistons with rings, Ford 7.3L piston set oversize, RBT-10 ring pack, 4.130 bore pistons, 7.3L rebuild kit pistons, CPP Diesel Mahle pistons, non-coated skirt pistons, 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 Power Stroke

Fitment

• 1994–2003 Ford F-250 / F-350 / F-450 / F-550 Super Duty — 7.3L Power Stroke
• 2000–2005 Ford Excursion — 7.3L Power Stroke
• 1994–2003 Ford E-Series (E-350 / E-450 / E-550) — 7.3L Power Stroke
• Note: .020" overbore (4.130") machining required; verify piston-to-wall clearance and ring end-gaps.

Cross-Reference / Alternatives (Mahle on CPP Diesel only)

• MAHLE 224-3163WR (STD)
• MAHLE 224-3163WR.030 (.030)
• MAHLE 224-3163WR.040 (.040)
• MAHLE 224-3409WR.020 (.020 Reduced Compression)
• MAHLE 224-3409WR.030 (.030 Reduced Compression)
• MAHLE 224-3409WR.040 (.040 Reduced Compression)

FAQ

WILL THIS FIT MY 7.3L POWER STROKE?

Yes—this set fits 1994–2003 7.3L Power Stroke truck/van applications when the block is bored/honed to +.020".

ARE RINGS INCLUDED?

Yes. “WR” denotes with rings; these ship with the matched RBT-10 ring pack.

ARE THE SKIRTS COATED?

No—this configuration uses non-coated OE-style skirts.

IS THE PRICE FOR ONE PISTON OR A FULL SET?

CPP Diesel sells this as a complete engine set of eight (8) pistons with rings.

Specifications for Mahle 224-3163WR.020
