Product Description
Lock down your 5.9L Cummins head seal with the INDUSTRIAL INJECTION PDM-54557A Fire Ring Gasket Kit, engineered for 2003-2007 24-valve common-rail trucks. Spec'd at 4.550 for compatibility with performance cylinder heads, this kit is built to hold boost and cylinder pressure under heavy load and competition use.
Fitment
- 2003-2007 Dodge Ram 2500/3500 with 5.9L Cummins 24V (common rail)

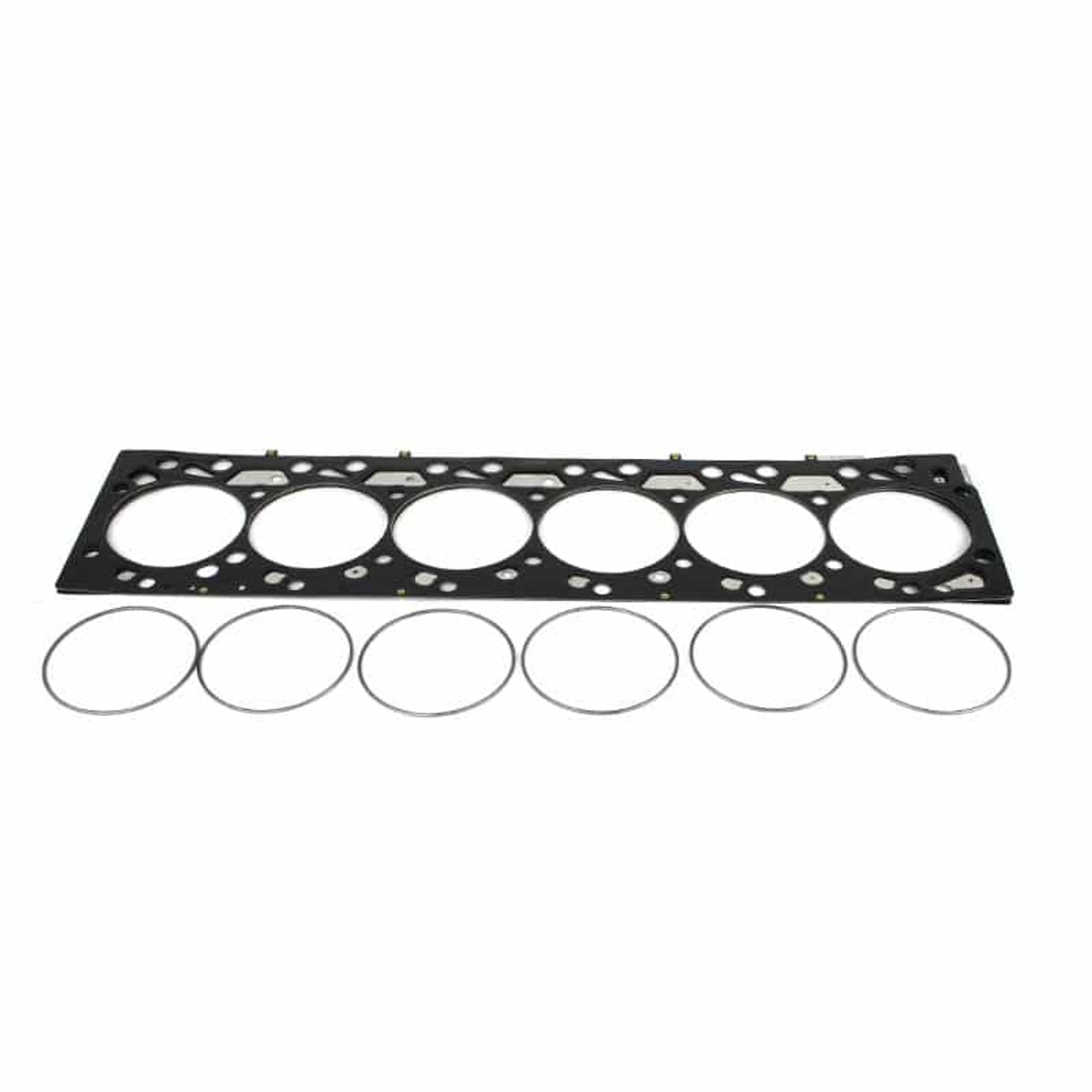

What's Included
- Fire-ring head gasket kit, spec 4.550 for 24V 5.9L Cummins
- Precision fire rings matched to the gasket spec
Why It's Better
- High clamp-load sealing for big boost and aggressive tuning
- 4.550 specification to match popular performance head setups
- Durability for towing, racing, and heavy-duty use
Recommended Parts (CPP Internal Links)
- ARP 247-4202 Head Stud Kit - 5.9L/6.7L Cummins
- ARP 247-4204 625+ Head Stud Kit - max clamp load
- MAHLE HS54557 Upper Head Set - seals, guides & hardware
- CPP 24V Fire Ring Head Gasket Set - 03-07 5.9L
Helpful Notes
- Professional machine work and proper head stud torque are required for best results.
- Confirm head and block flatness, surface finish (RA), and ring protrusion per your builder's spec.
- Use the correct coolant and retorque policy for your application.
Cross-Reference / Alternatives
- PDM-54174 - 1998.5-2002 5.9L 24V Cummins
- PDM-54774 - 2007.5-2018 6.7L Cummins
- MAHLE 54557A - OE-style MLS head gasket (03-07)
FAQ
Is this kit compatible with all 03-07 5.9L heads?It's designed for 24V common-rail heads using a 4.550 fire-ring spec. Verify your head's counterbore and ring spec with your machine shop.
Do I need head studs?Yes-head studs are strongly recommended for any fire-ring setup to maintain clamp load under boost (see ARP kits above).
Will this fix a warped head or block?No. Check flatness and surface finish and correct any issues before installation.
Street use vs. competition use?Fire-ring systems are commonly used in high-cylinder-pressure builds. Consult your builder for streetability and maintenance expectations.
| Specifications for INDUSTRIAL INJECTION PDM-54557A | |
|---|---|
| Brand | Industrial Injection |
| Part Number | PDM-54557A |
| GTIN | Not specified by manufacturer |
| UPC | Not specified by manufacturer |
| Engine Compatibility | 2003–2007 Dodge Ram 2500/3500 5.9L Cummins 24-Valve (Common-Rail) |
| Configuration | Fire Ring Cylinder Head Gasket Kit; 4.550" ring dia., 0.105" ring thickness, 0.034–0.036" groove depth |
| Country of Origin | Not specified |
| Core Charge | Not applicable |
| Shipping Weight | ~1 lb (boxed) |
| Package Dimensions | 33" × 9" × 5" (approx.) |
| Shipping Method | Ground/Parcel |
| Prop 65 Warning | This product can expose you to chemicals including lead and chromium, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Learn more. |
