Product Description
Lock down cylinder pressure on your 24-valve build. The INDUSTRIAL INJECTION PDM-54174 Fire Ring Gasket Kit is engineered for high-boost, high-heat 1998.5-2002 5.9L Cummins applications where a standard head gasket can't keep up. Spec'd at 4.550 for use with properly cut receiver grooves, this kit is a proven solution for serious street/strip and towing builds.
Fitment
- 1998.5-2002 Dodge Ram 2500/3500 - 5.9L Cummins 24-valve (ISB)

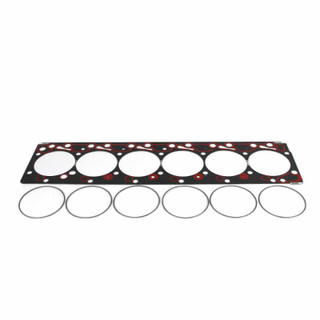

What's Included
- Fire-ring head gasket sized to 4.550 (for receiver-groove heads/blocks)
- Matched fire rings
Why Choose This Kit
- High-boost sealing for big single or compound turbo setups
- Industrial Injection spec (4.550) for consistent groove/ring engagement
- Track-proven reliability when paired with quality studs and machine work
Recommended Parts (CPP Internal Links)
- ARP 247-4204 625+ Head Stud Kit (98.5-02 Cummins)
- MAHLE HS54174-2 Upper Head Set (98.5-02 24V)
- MAHLE 54174 Standard Head Gasket (98.5-02) - reference for non-fire-ring builds
- Industrial Injection 24V Fire-Ringed Cylinder Head (98.5-02)
- Shop All Cummins Studs & Bolts
Helpful Notes
- Machine work required: Fire-ring builds need precise receiver-grooves cut in the head and/or block to the correct depth/width. Use a reputable diesel machine shop.
- Always verify ring protrusion, surface finish (RA), and torque procedure with your stud manufacturer's spec.
- Intended for high-cylinder-pressure applications; for mild builds consider a standard MLS head gasket with studs.
FAQ
Does this bolt on without machining?No. Fire-ring systems require receiver-groove machining. Do not install without proper machine work and measurements.
What ring size is this kit?This kit is spec'd at 4.550 to match Industrial Injection's receiver-groove dimensions for 24V heads/blocks.
What hardware should I use?We strongly recommend ARP 625+ or ARP 2000 head studs for best clamping under boost.
Is a standard MLS head gasket included?No. This is a dedicated fire-ring gasket/ring kit. For MLS service kits see our MAHLE HS54174-2.
| Specifications for INDUSTRIAL INJECTION PDM-54174 | |
|---|---|
| Brand | Industrial Injection |
| Part Number | PDM-54174 |
| GTIN | 00840256914788 |
| UPC | 840256914788 |
| Engine Compatibility | 1998.5–2002 Dodge Ram 2500/3500 5.9L Cummins 24-Valve (VP44) |
| Configuration | Fire Ring Head Gasket Kit |
| Fire Ring Spec | Diameter 4.550", Thickness 0.105", Groove Depth 0.034"–0.036" |
| Country of Origin | USA |
| Core Charge | Not applicable |
| Shipping Weight | ~1 lb (approx. 454 g) |
| Package Dimensions | Not specified |
| Shipping Method | Ground / Parcel |
| Prop 65 Warning | This product can expose you to chemicals including lead and chromium, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. Learn more. |
