Product Description

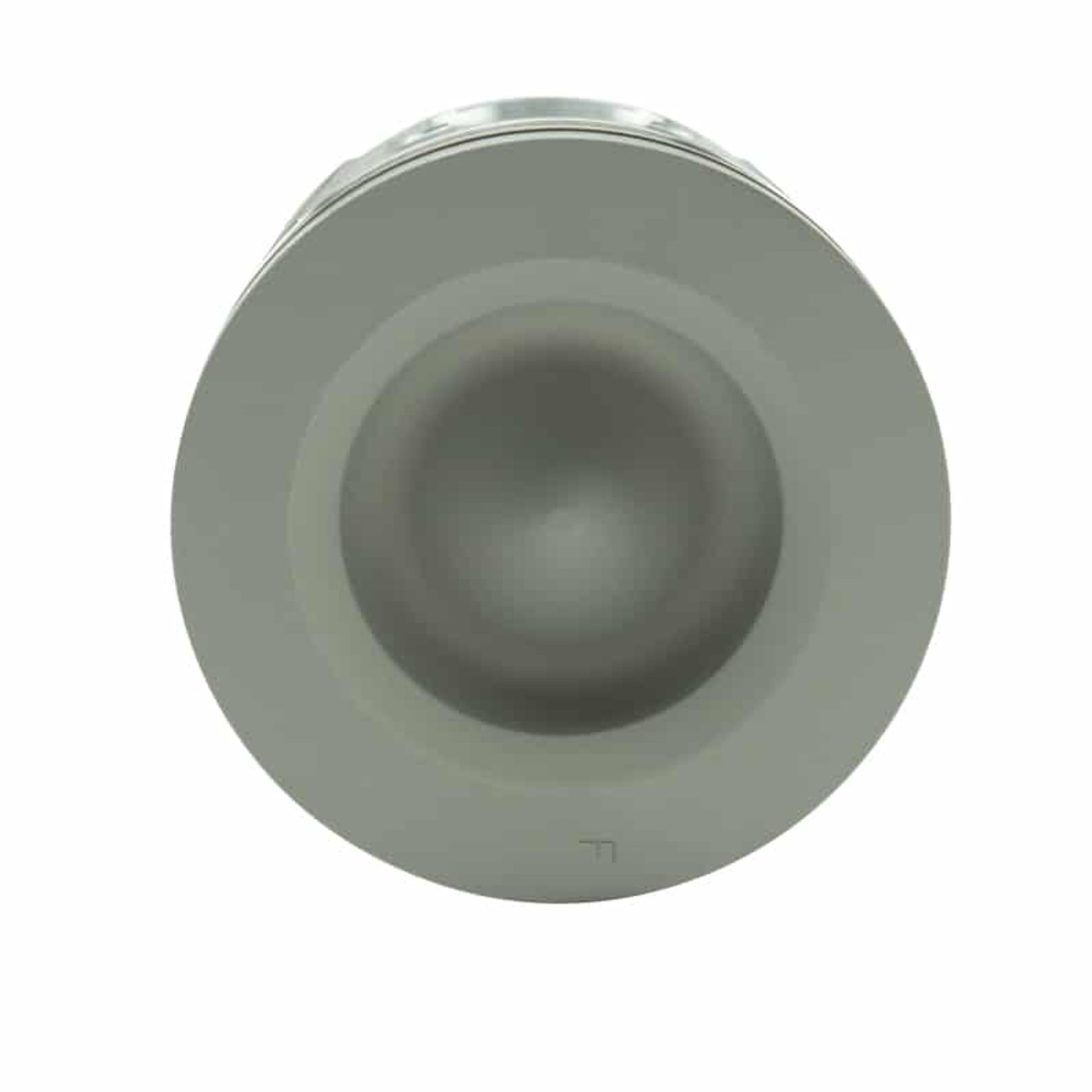

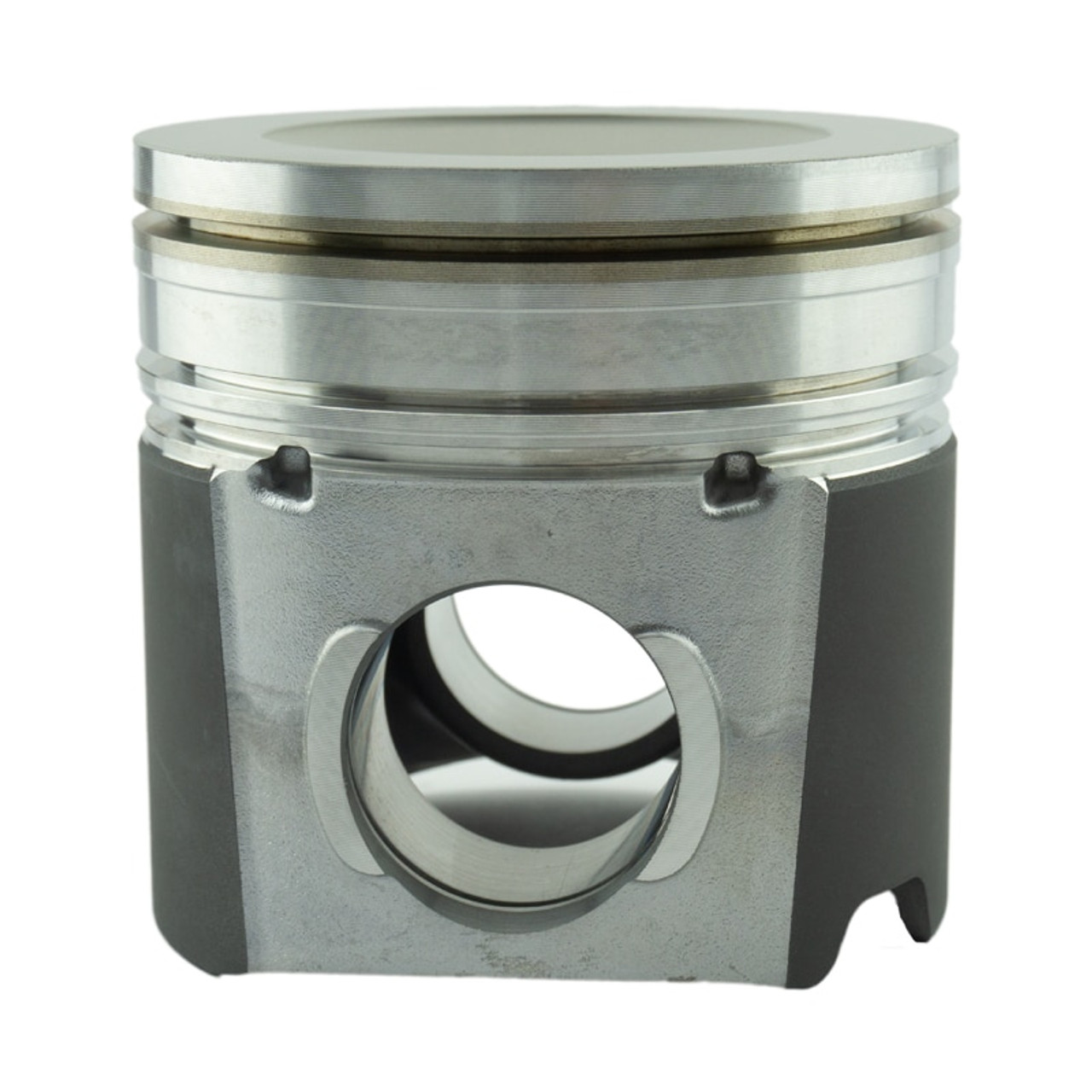

Turn your 6.7L Cummins into a track-ready workhorse. INDUSTRIAL INJECTION PDM-3732FCC.020 race pistons are .020" oversize and built to handle extreme heat and cylinder pressure. The FCC line features a thermal barrier crown and low-friction skirt coating with fly-cut valve reliefs to add strength and clearance for high-lift cam profiles. Sold as a complete set for a clean, pro-level rebuild.
Fitment
- 2007.5-2018 Dodge/Ram 6.7L Cummins ISB (Light-Duty, 2500/3500)
What's Included
- (6) 6.7L forged, coated race pistons - .020" oversize (FCC series with fly-cuts)
- Matched rings, wrist pins, and clips
Key Features
- Forged construction for high boost and heat
- Thermal barrier crown to keep heat in the chamber
- Skirt coating to reduce friction and scuffing
- Fly-cut valve reliefs for added piston-to-valve clearance
- .020" overbore for precise wall finish on performance builds
Recommended Parts (CPP Internal Links)
- ARP 247-4204 625+ Head Stud Kit - 5.9L/6.7L 24V
- MAHLE HS54774-1 Upper/Head Set - 2007.5-2018 6.7L (or HS54774-4 with Valve Cover Gasket)
- S&S Diesel New CP3 Pump - 2003-2018
Cross-Reference / Alternatives
- PDM-3732.020 - Stock-Style .020" Over
- PDM-3732FCC - FCC Race Pistons (base page)
- Shop All 6.7L Cummins Pistons & Rings
Helpful Notes
- Professional machine work required (.020" overbore). Verify piston-to-wall clearance and ring end gaps per your build spec.
- Match compression ratio, bowl style, head gasket thickness, and camshaft to your target power and use case.
FAQ
Are these pistons a direct drop-in?The set includes rings, pins, and clips, but a .020" overbore and precise measurements are required for correct clearances.
What's the advantage of the FCC (coated, fly-cut) version?Thermal crown and skirt coatings improve heat management and reduce friction, while fly-cut reliefs add piston-to-valve clearance for high-lift cams.
Do I need head studs with these pistons?Head studs are strongly recommended on any performance build to maintain MLS head gasket seal under higher boost and cylinder pressure.
Which head set should I choose?Choose an HS54774 series head set that matches your needs (with or without valve cover gasket) for 2007.5-2018 6.7L Cummins.
| Specifications for INDUSTRIAL INJECTION PDM-3732FCC.020 | |
|---|---|
| Brand | Industrial Injection |
| Part Number | PDM-3732FCC.020 |
| GTIN | 00840256914580 |
| UPC | 840256914580 |
| Engine Compatibility | 2007.5–2018 Dodge/Ram 2500/3500/4500/5500 6.7L Cummins |
| Configuration | Fly-cut, Coated & Chamfered Race Pistons (.020" over), set of 6 w/ rings, wrist pins & clips |
| Country of Origin | Not specified |
| Core Charge | None |
| Shipping Weight | ~30 lb |
| Package Dimensions | Not specified |
| Shipping Method | Ground (parcel) |
