INDUSTRIAL INJECTION PDM-3672 DODGE PISTONS FOR 03-04 CUMMINS STOCK

PDM's Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction. This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f.

This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant. It is used in applications where high temperatures, high loads and high speeds are experienced.

When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load. Gray in color it acquires a glass like finish in use. Cured film thickness of .001 or less requires no change is piston clearance.

PDM's Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios.

The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency.

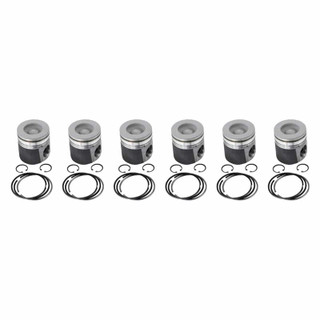

• Sold in a set of 6
• 2003-2004 5.9L Cummins Pistons

Stock Piston Features:

• Drop In Replacement
• Complete W/ Rings, Wrist Pins And Clips
• Standard Size

Performance Piston Features:

• Drop In Replacement
• Complete W/ Rings, Wrist Pins And Clips
• Standard Size
• Chamfered tops
• Thermal Barrier Coating For Piston Tops
• Ceramic Piston Skirt Coating

Race Piston Features:

• Drop In Replacement
• Complete W/ Rings, Wrist Pins And Clips
• Standard Size
• Fly Cut with .100 Valve Reliefs
• Chamfered tops
• Thermal Barrier Coating For Piston Tops
• Ceramic Piston Skirt Coating
• PDM-3672

Fly Cut (valve relief): .100

Fly cutting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.

Chamfering:

Our performance and race Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)

The INDUSTRIAL INJECTION PDM-3672 Dodge Pistons for 2003-2004 Cummins engines are engineered for high-performance applications, providing a reliable upgrade for those seeking enhanced power and efficiency. These pistons are meticulously manufactured to meet the rigorous demands of performance enthusiasts, whether for stock replacement or race-ready modifications.

With PDM's advanced Ceramic Piston Skirt Coating, these pistons can withstand extraordinary loads of over 350,000 PSI and perform seamlessly in extreme temperatures exceeding 1600°F. This innovative coating not only excels in durability but also offers exceptional lubricity, minimizing friction and extending the lifespan of engine components.

For high-performance engines utilizing nitrous oxide, supercharging, or turbocharging, PDM’s Thermal Barrier Coating for piston tops proves essential. It effectively lowers part temperatures and enhances combustion efficiency by keeping heat within the combustion chamber for an extended power stroke. This results in increased torque and horsepower, driving superior engine performance.

Sold in sets of six, these pistons come complete with rings, wrist pins, and clips, ensuring a straightforward, drop-in replacement without the need for additional modifications. The standard size provides a seamless fit, while features like chamfered tops and precision fly cutting with .100 valve reliefs further enhance performance, helping to prevent piston swell and scuffing of the cylinder wall.

Whether for a stock rebuild or a high-performance application, the INDUSTRIAL INJECTION PDM-3672 Dodge Pistons are designed to elevate your engine's capabilities. Experience the perfect blend of durability, efficiency, and power with these industry-leading pistons, tailored for the 2003-2004 5.9L Cummins. Upgrade your engine’s potential and enjoy the driving experience you deserve.
